AZ2700-1A-48AW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ2700-1A-48AW

AZ2700-1A-48AW: DescriptionPower/Signal Relay, SPST, Momentary, 1920mW (Coil), 30A (Contact), 150VDC (Contact), AC Input, AC/DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size81KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ2700-1A-48AW Overview

Power/Signal Relay, SPST, Momentary, 1920mW (Coil), 30A (Contact), 150VDC (Contact), AC Input, AC/DC Output, Panel Mount

AZ2700-1A-48AW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 38.4 V
body width	33.5 mm
body height	36 mm
Body length or diameter	50.5 mm
Coil current (AC) maximum value	0.04 A
Coil power	1920 mW
Maximum coil voltage (AC)	48 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	30A@400VAC
Maximum contact current (AC)	30 A
Maximum contact current (DC)	30 A
Contact (DC) maximum rated R load	30A@150VDC
Maximum contact voltage (AC)	400 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
JESD-609 code	e3
Manufacturer's serial number	AZ2700
Installation features	PANEL MOUNT
operating hours	30 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	50.5mm x 33.5mm x 36mm
Guideline	TUV; UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	30 ms
surface mount	NO
Terminal surface	Tin (Sn)
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

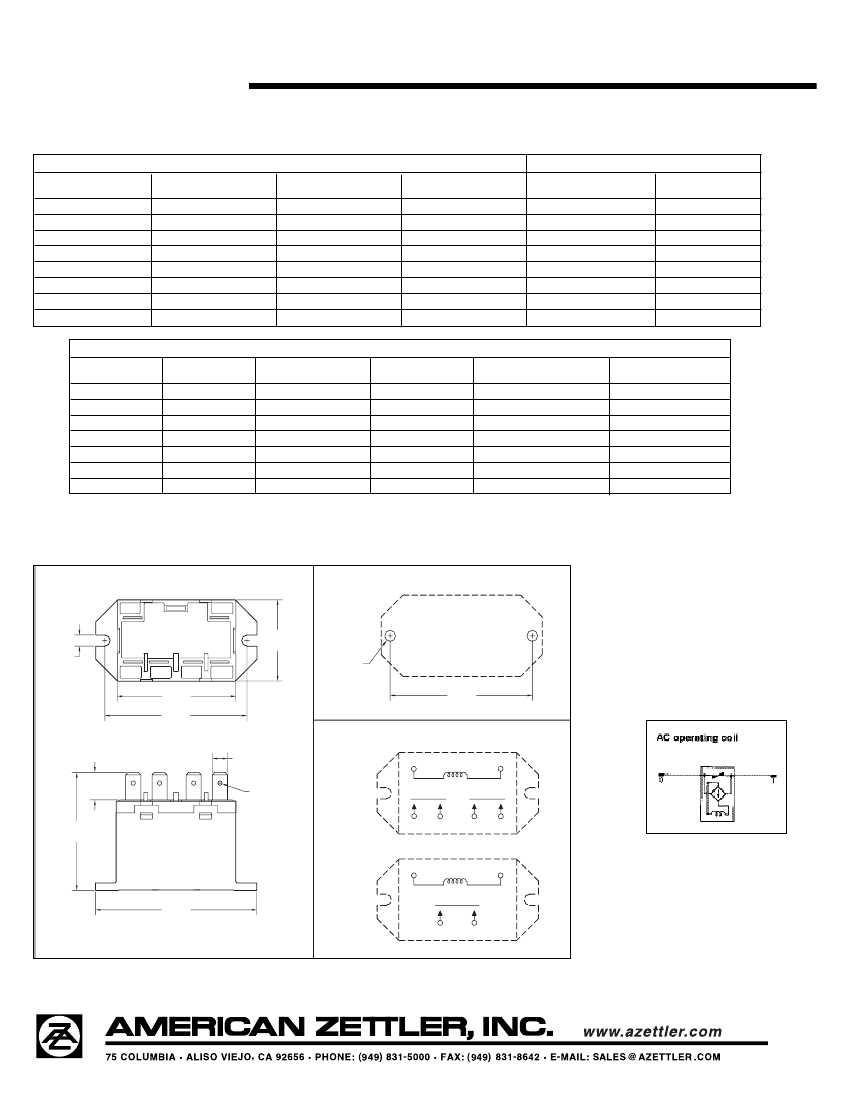

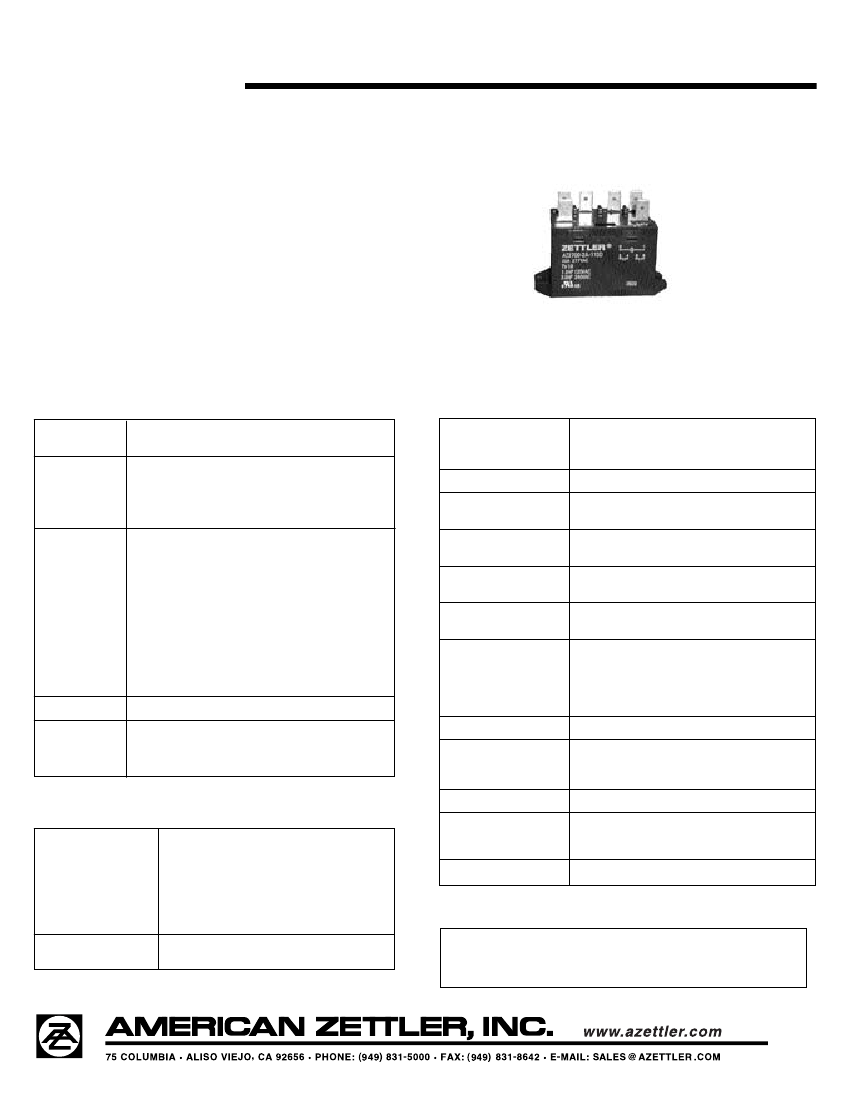

AZ2700

30 AMP POWER RELAY

FEATURES

•

Low cost

30 Amp switching

Class B insulation system standard, Class F available

Quick connect terminals

4 kV dielectric

Standard (2.4 mm) and wide contact

gap (3.0 mm) available

•

UL, CUR file E44211

•

TÜV R50164753

CONTACTS

Arrangement

Ratings

SPST (1 Form X)

DPST (2 Form X)

Resistive load:

Max. switched power: 840 W or 8310 VA

Max. switched current: 30 A

Max. switched voltage: 150 VDC or 400 VAC

Rated Load

UL, CUR

30 A at 277 VAC res. 30k cycles [1]

1.5 HP at 120 VAC [1]

3 HP at 240 VAC [1]

TV-10 at 120 VAC [1]

30 A at 277 VAC res. 70k cycles [2]

3 HP at 240 VAC 100k cycles [2]

10 A at 120 VAC tungsten load, 10k cycles [2]

27 A at 240 VAC, cos phi = .8, 50k cycles

[1] silver cadmium oxide, [2] silver tin oxide

Material

Resistance

Silver cadmium oxide, silver tin oxide

< 100 milliohms initially

(24 V, 1 A voltage drop method)

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (max)

Release Time (max)

Minimum operations

1 x 10

at 30 A 120 VAC Res.

30 ms at nominal coil voltage

(with no coil suppression)

Dielectric Strength

4000 Vrms coil to contact

(at sea level for 1 min.)

2000 Vrms between open contacts

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

1000 megohms min. at 20°C, 500 VDC,

50% RH

Greater than 5% of nominal coil voltage (DC)

Greater than 15% of nominal coil voltage (AC)

At nominal coil voltage

-40°C (-40°F) to 85°C (185°F) - Class B

-40°C (-40°F) to 105°C (221°F) - Class F

-40°C (-40°F) to 130°C (266°F) - Class B

-40°C (-40°F) to 155°C (311°F) - Class F

0.062" DA at 10–55 Hz

TÜV

Vibration

Shock

Operating

10 g, 11 ms,

sine (no false operation)

Non-Operating

100 g, 11 ms,

sine (no damage)

Enclosure

P.B.T. polyester

Tinned copper alloy, Quick connect tabs

Note: Allow suitable slack on leads when wiring, and do

not subject the terminals to excessive force.

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

1.2 VA (AC)

3.8 W at 20°C (68°F) ambient

50°C (90°F) at nominal coil voltage

Max. 130°C (266°F) - Class B

Max. 155°C (311°F) - Class F

Terminals

Weight

120 grams

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.
