Product data sheet
Automation technology - data transmission and power
supply
Product description
Area
Order number
Contacts: 8 Contact insert with X-coding, dip-solder, for mounting in customer housing
M12-D, M12-X Series 825/876 X-coding
09 3782 202 08

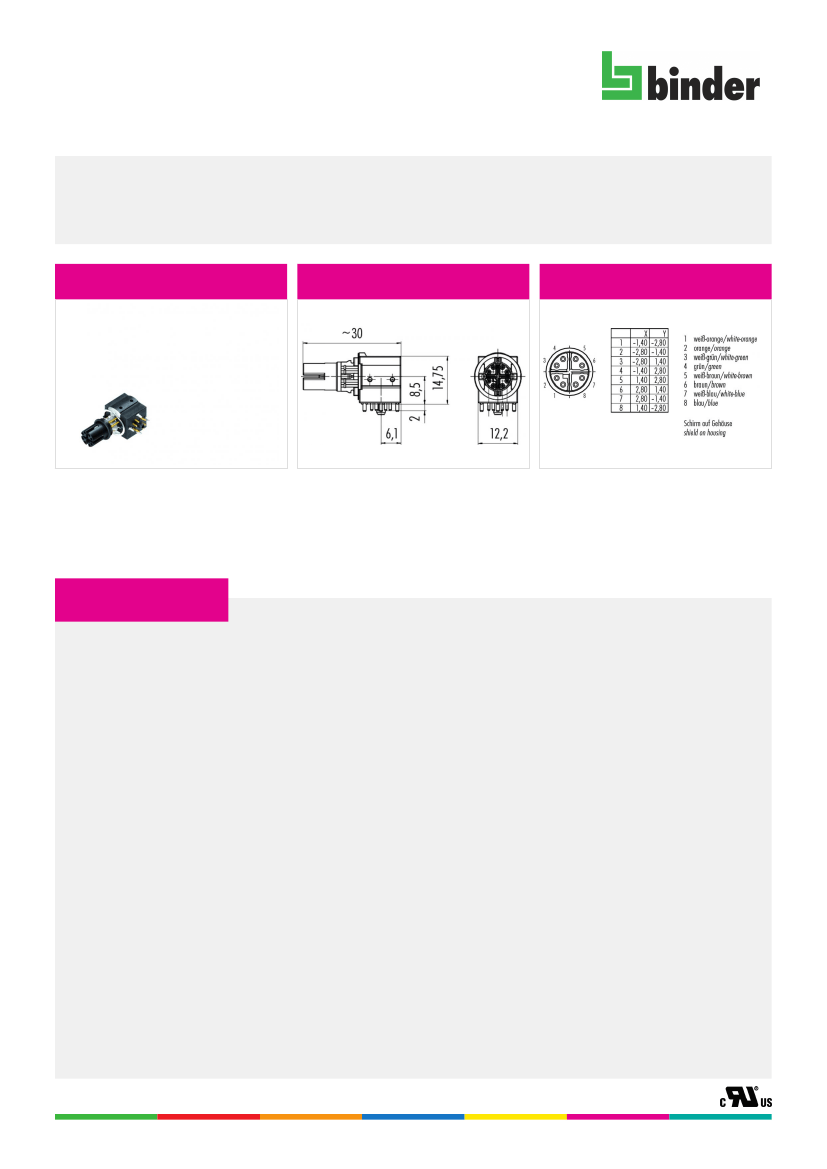

Illustration
Scale drawing
Contact arrangement
You can find the assembly instructions on the next page.
Technical data
General values
Connector design
Connector locking system
Termination
Upper limit temperature
Lower limit temperature
contact insert
bolted
dip-solder
85 °C
-40 °C
Electrical values
Rated current (40 °C)
Rated voltage
Pollution degree
Overvoltage category
Insulating material group
Volume resistivity
Insulation resistance
EMC compliance
Degree of protection
Mechanical operation
0,5 A
50V AC, 60V DC V
3
II
III
≤ 15 mΩ
>10^8Ω
shielded
IP67
> 100 Mating cycles
Cable data
Approval 1
UL
Material
Contact material
Contact plating
Contact body material
CuSn (bronze)
Au (gold)
PA
Date: 2018-06-08 - Page 1 of 3
Product data sheet
Automation technology - data transmission and power
supply
Product description
Area
Order number
Contacts: 8 Contact insert with X-coding, dip-solder, for mounting in customer housing
M12-D, M12-X Series 825/876 X-coding
09 3782 202 08

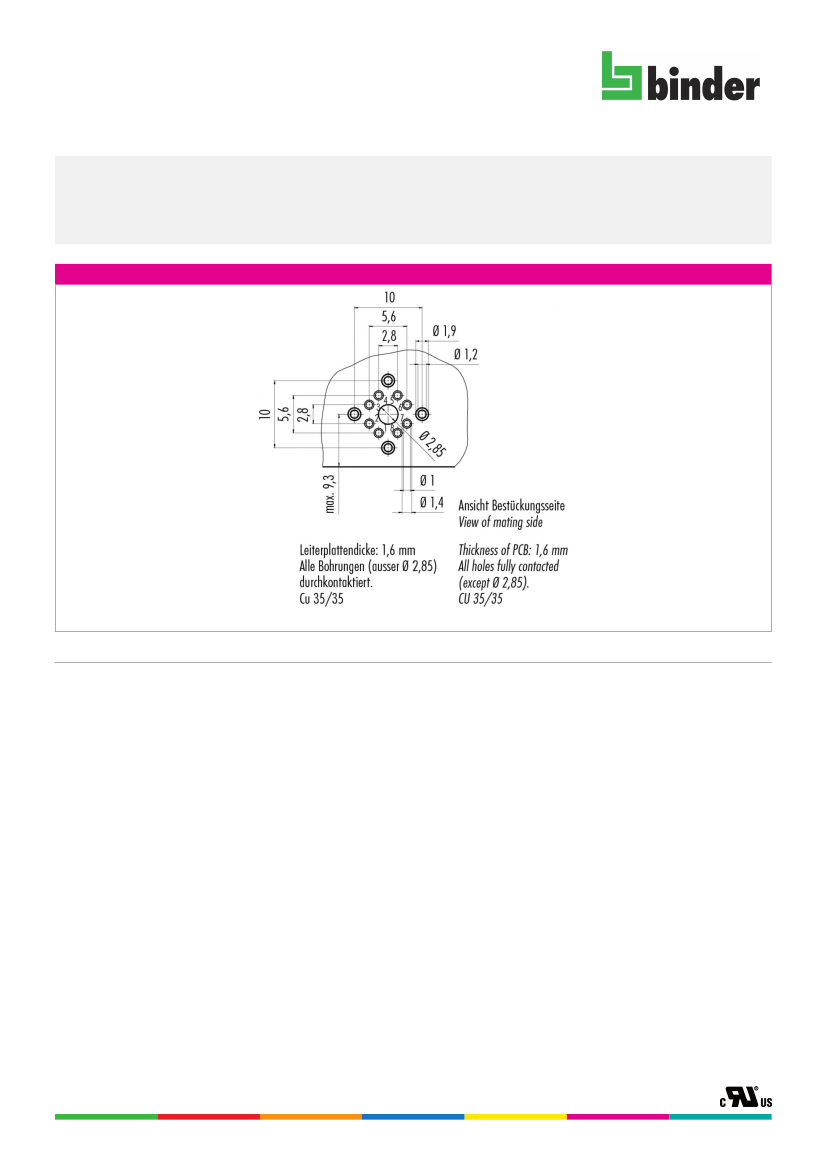

Assembly instructions / Panel cut-out
Date: 2018-06-08 - Page 2 of 3
Product data sheet
Automation technology - data transmission and power
supply
Product description
Area
Order number
Contacts: 8 Contact insert with X-coding, dip-solder, for mounting in customer housing
M12-D, M12-X Series 825/876 X-coding
09 3782 202 08
Security notices
The connectors are designed for use in plant, control system and electrical equipment. The end user is responsible
for checking whether the connectors are suitable for use in other applications.
Connectors with degree of protection IP 67 and IP 68 are not suitable for use under water. When used outdoors, the
connectors must be separately protected against corrosion. For further information about IP degrees of protection
refer to ‘Technical support’ in the Download Centre.
To lock the cable connector to the equipment connector, the threaded ring is tightened until it is ‘finger-tight’
(approx. 50 cNm).
Date: 2018-06-08 - Page 3 of 3
