6mm FLANGE BASED LED LAMP
BLFA064MWC-12V-P
WHITE
Features
!
BUILT-IN
Description
The source color devices are made with GaN on SiC
Light Emitting Diode.
Static electricity and surge damage the LEDS. It is
recommended to use a wrist band or anti-
electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be
electrically grounded.
CURRENT LIMITING RESISTOR FOR
DIRECT APPLICATION OF DIFFERENT ACROSS
CURRENT.
!
LONG
!
LOW
!
LOW
LIFE.
CURRENT, POWER SAVINGS.
MAINTENANCE.
COLOR AVAILABLE.
STATE, HIGH VIBRATION RESISTANT.
!
DIFFERENT
!
SOLID
!
12V INTERNAL RESISTOR.

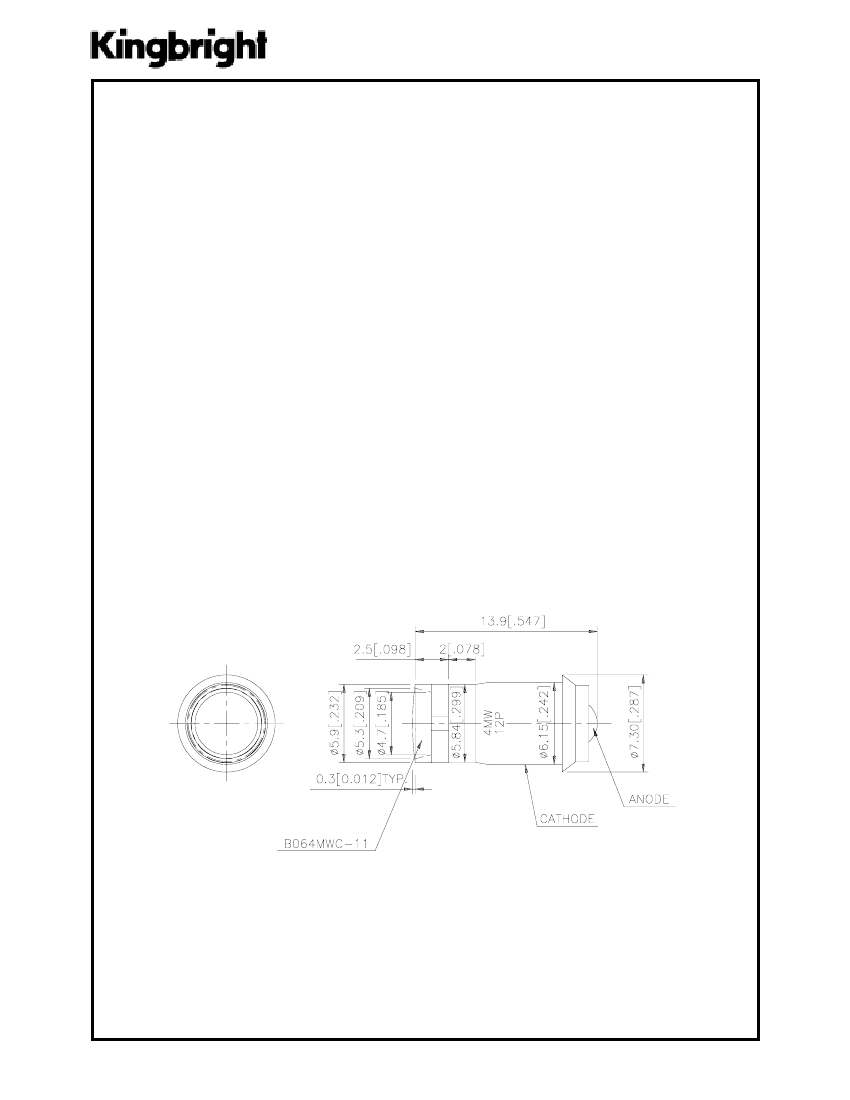

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAD0405
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/23/2003
DRAWN: K.ZHANG
PAGE: 1 OF 3
Selection Guide
Par t No .
Dic e
L en s Ty p e
Iv (m c d )
V=12V
Min .
BLFA064MWC-12V-P
WHITE(GaN)
WATER CLEAR
70
Ty p .
130
V i ew i n g
An g l e
2θ1/2
110°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
°
Electrical / Optical Characteristics at T
)
=25°C
Sy m b o l
I
F
I
R
X
Chromaticity Coordinates
Y
C
Capacitance
White
White
0.34
10 0
-
-
-
pF
-
V
F
=0V, f = 1MHz
Par am et er
Forward Current
Reverse Current
White
White
D ev i c e
Ty p .
20
-
0.33
Max .
-
10
-
Un it s
mA
uA
-
Tes t Co n d it io n s
V
F
=12V
V
R
= 5V
-
Absolute Maximum Ratings at T
)
=25°C
°
P ar a m e t e r
Power dissipation
Forward Voltage
Reverse Voltage
Operating Temperature
Storage Temperature
Wh it e
280
14
5
-40
°
C To +70
°C
-40
°
C To + 85
°C
Un it s
mW
V
V
SPEC NO: DSAD0405
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/23/2003
DRAWN: K.ZHANG
PAGE: 2 OF 3
