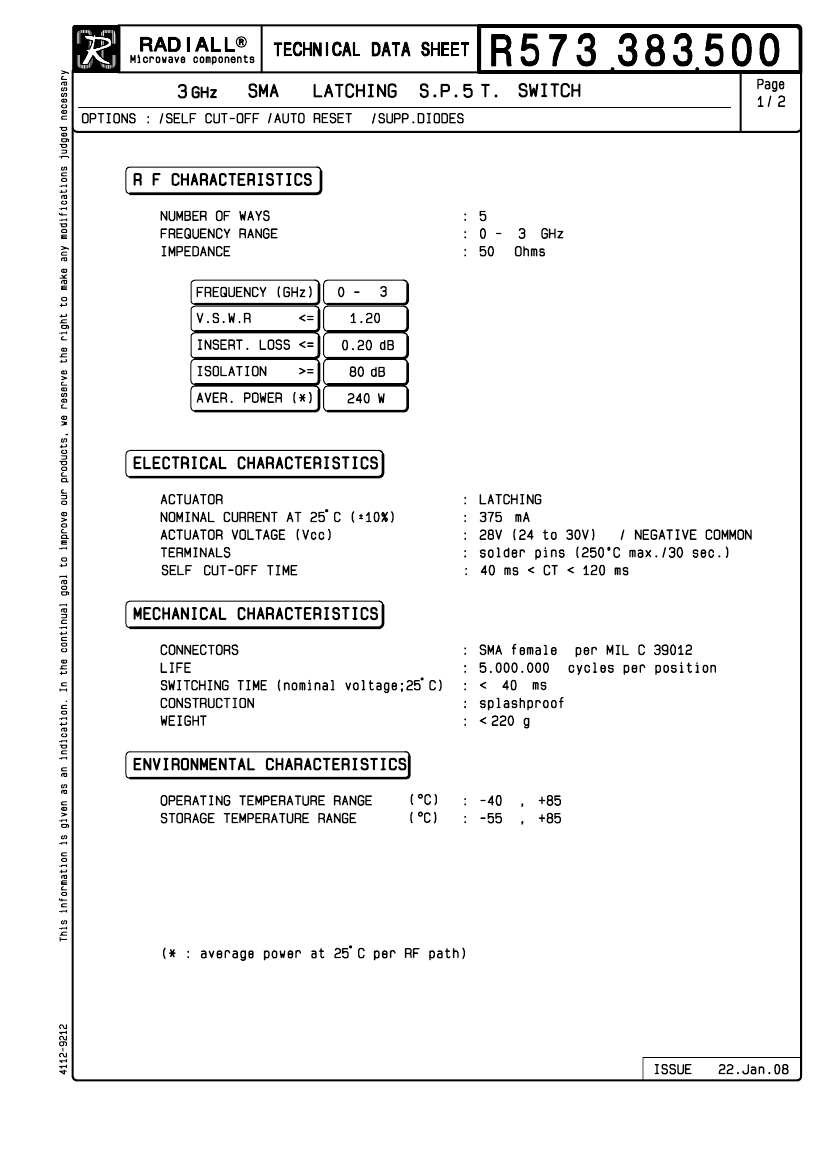

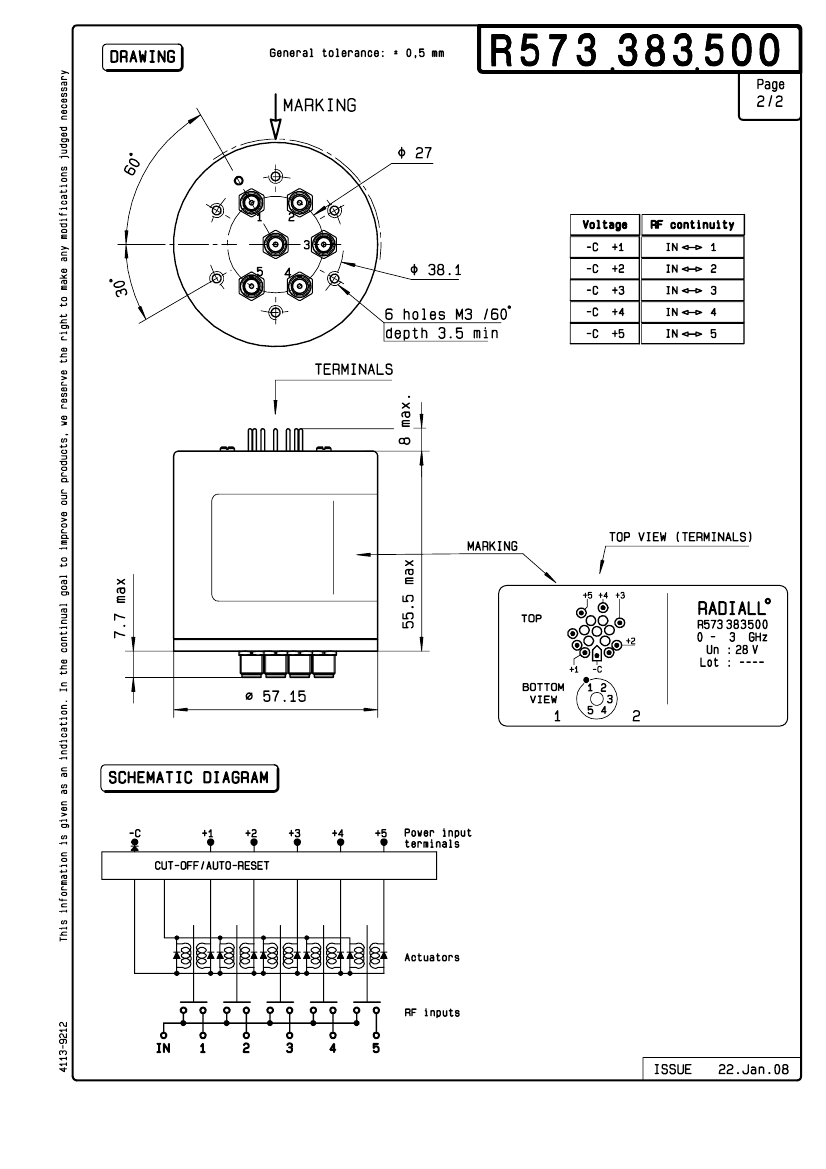

R573.383.500 datasheet, PDF - EEWORLD Datasheet

R573.383.500: DescriptionRF Coaxial Relay, SP5T, Latched, 0.375A (Coil), 28VDC (Coil), 10500mW (Coil), 3000MHz, DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size130KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R573.383.500 Overview

RF Coaxial Relay, SP5T, Latched, 0.375A (Coil), 28VDC (Coil), 10500mW (Coil), 3000MHz, DC Input, DC Output, Panel Mount

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
ECCN code	EAR99
body height	55.5 mm
Body length or diameter	57.15 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.375 A
Coil power	10500 mW
Coil resistance	74.67 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Maximum insertion loss	0.2 dB
Maximum isolation	80 dB
Manufacturer's serial number	R573.383.500
Installation features	PANEL MOUNT
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Relay action	LATCHED
Relay function	SP5T
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	40 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.2
Base Number Matches	1
