AS385BT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AS385BT

AS385BT: DescriptionVoltage Reference, Trim/Adjustable, BIPolar, MBCY3,; CategoryPower/power management The power supply circuit; File Size271KB，4 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

AS385BT Overview

Voltage Reference, Trim/Adjustable, BIPolar, MBCY3,

AS385BT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIPEX
Reach Compliance Code	unknown
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	5.3 V
Minimum output voltage	1.24 V
Package body material	METAL
Encapsulate equivalent code	CAN3/4,.1
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
technology	BIPOLAR
Maximum voltage temperature coefficient	100 ppm/°C
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Fine-tuning/adjustable output	YES
Base Number Matches	1

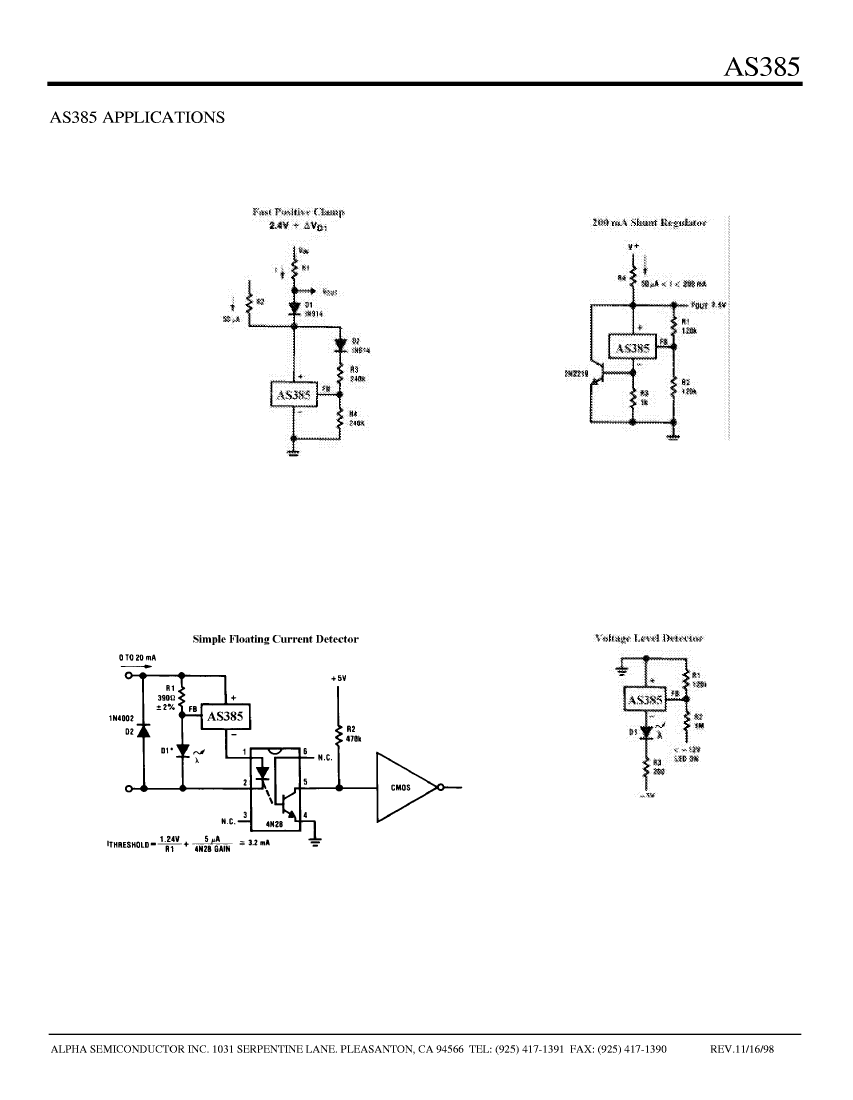

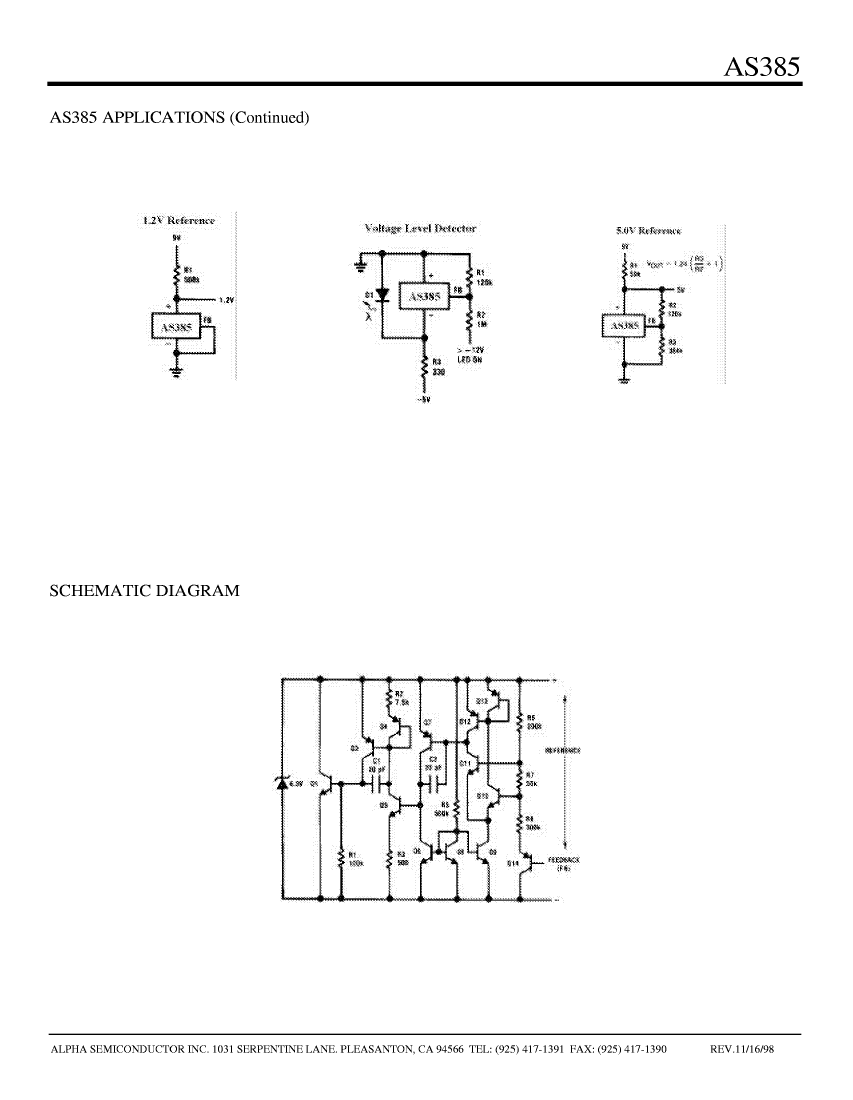

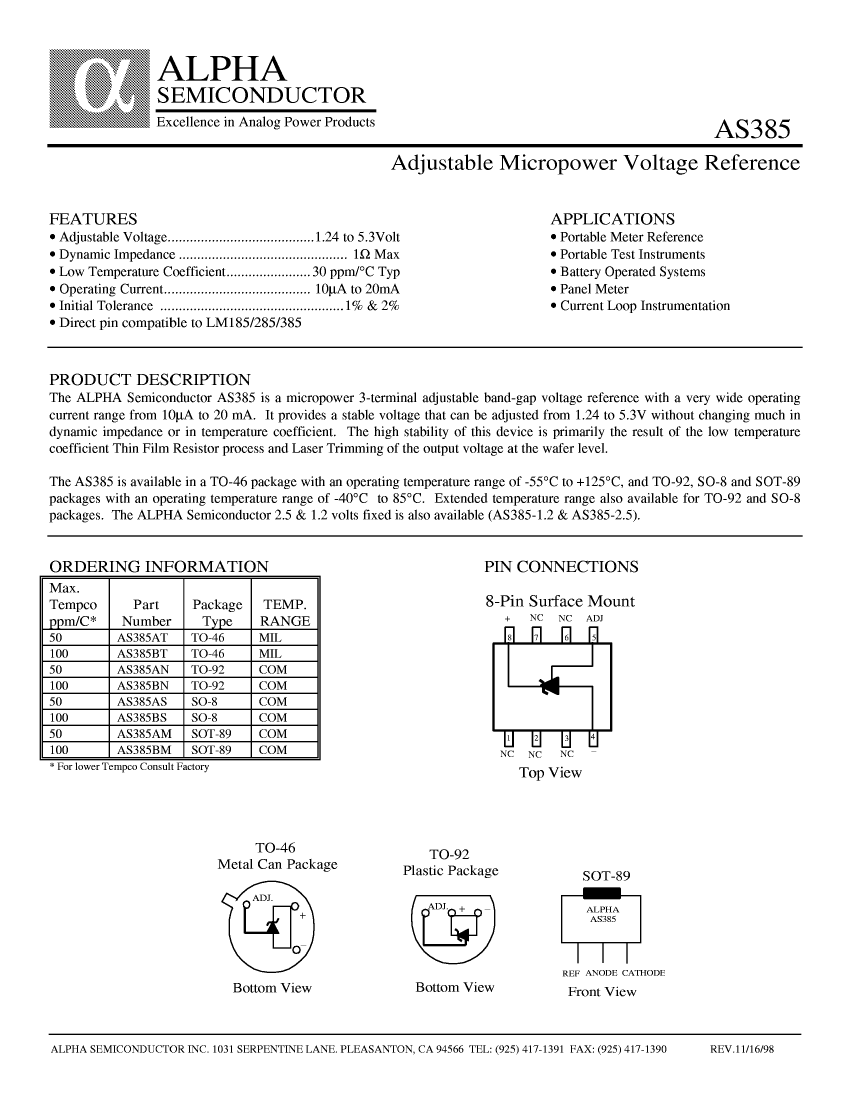

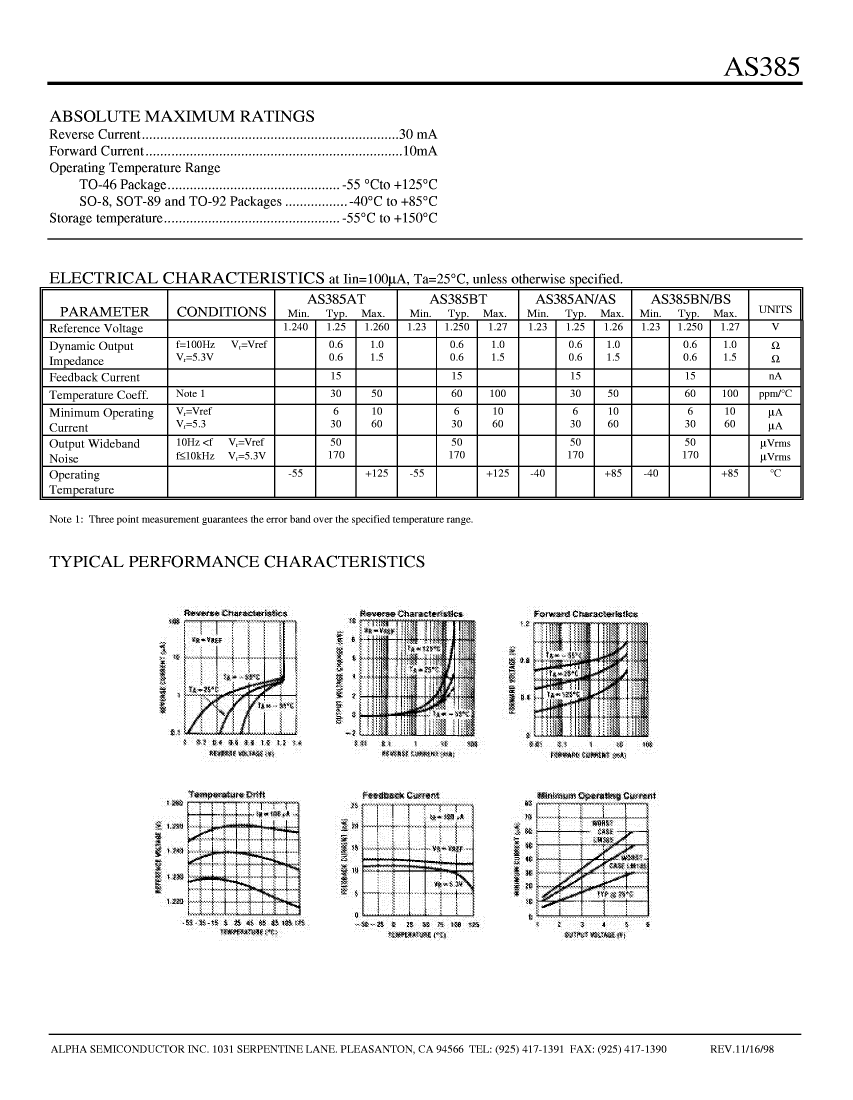

Preview

Download Datasheet

View All

AS385BT Related Products

	AS385BT	AS385BN	AS385AS	AS385AT	AS385BS	AS385AM	AS385BM	AS385AN
Description	Voltage Reference, Trim/Adjustable, BIPolar, MBCY3,	Voltage Reference, Trim/Adjustable, BIPolar,	Voltage Reference, Trim/Adjustable, BIPolar, PDSO8,	Voltage Reference, Trim/Adjustable, BIPolar, MBCY3,	Voltage Reference, Trim/Adjustable, BIPolar, PDSO8,	Voltage Reference, Trim/Adjustable, BIPolar,	Voltage Reference, Trim/Adjustable, BIPolar,	Voltage Reference, Trim/Adjustable, BIPolar,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	3	3	8	3	8	3	3	3
Maximum operating temperature	125 °C	85 °C	85 °C	125 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	5.3 V	5.3 V	5.3 V	5.3 V	5.3 V	5.3 V	5.3 V	5.3 V
Minimum output voltage	1.24 V	1.24 V	1.24 V	1.24 V	1.24 V	1.24 V	1.24 V	1.24 V
Package body material	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	CAN3/4,.1	SIP3,.1,50	SOP8,.25	CAN3/4,.1	SOP8,.25	TO-243	TO-243	SIP3,.1,50
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	100 ppm/°C	100 ppm/°C	50 ppm/°C	50 ppm/°C	100 ppm/°C	50 ppm/°C	100 ppm/°C	50 ppm/°C
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES	YES
Base Number Matches	1	1	1	1	1	1	1	1
Terminal location	BOTTOM	SINGLE	DUAL	BOTTOM	DUAL	-	-	SINGLE
surface mount	-	NO	YES	-	YES	YES	YES	NO
