33_PC7-QN-50-1/1--_NE datasheet, PDF

Datasheet> All Categories > The connector> The connector> 33_PC7-QN-50-1/1--_NE

33_PC7-QN-50-1/1--_NE: DescriptionRF Connector Adapter, PC7-QN, Male-Female, Plug-jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

33_PC7-QN-50-1/1--_NE Overview

RF Connector Adapter, PC7-QN, Male-Female, Plug-jack, ROHS COMPLIANT

33_PC7-QN-50-1/1--_NE Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	PC7-QN
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	SNAP-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	BETWEEN
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	11.12
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

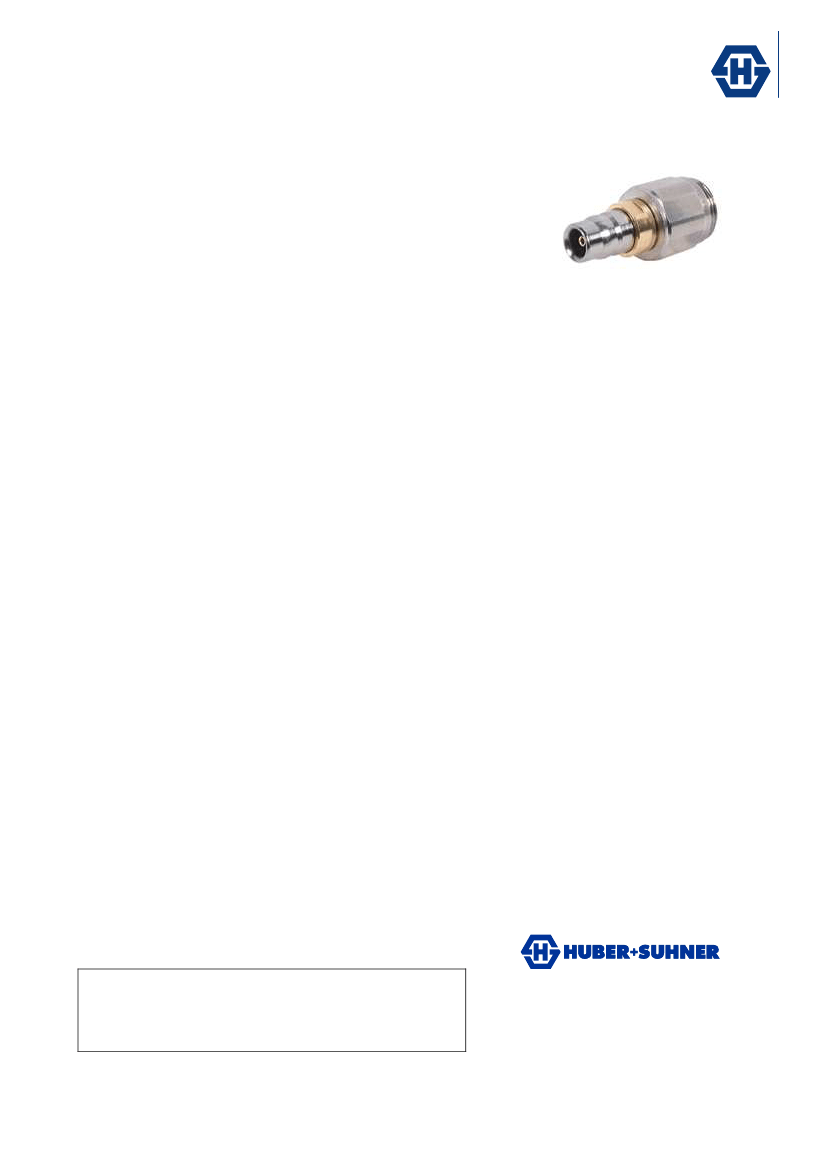

DATA SHEET

Between Series Adapter: 33_PC7-QN-50-1/1--_N

Description

Rev.: F

Adaptor plug/jack

PC 7 plug (male) / QN jack (female)

Interface standards

IEEE STD 287_ANSI C 16.43 / QN QLF compliant

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

Electrical Length

Ω

11 GHz

DC to 3 GHz

≥ 36 dB

41.85 mm +/- 0.1

500

0.043 kg

-40 °C to 70 °C

compliant

Material

Copper Beryllium Alloy

Brass

Air Dielectric - Bead - PPH

Brass

Material

Copper Beryllium Alloy

Stainless Steel

Surface Plating

Gold Plating (without Nickel underplating)

SUCOPLATE (R) Plating

Surface Plating

SUCOPRO Plating

3 to 6 GHz

≥ 32 dB

6 to 11 GHz

≥ 24 dB

Mechanical Data

Number of matings

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

(PC 7)

Centre contact

Outer contact

Body

Insulator

Coupling nut

Piece Parts

(QN)

Centre contact

Outer contact

Body

Insulator

Material Data
