ZFKDSA1,5C-5,0-8GYBD:1-8 Overview

Barrier Strip Terminal Block,

ZFKDSA1,5C-5,0-8GYBD:1-8 Parametric

Parameter NameAttribute value
MakerPHOENIX CONTACT
Reach Compliance Codeunknown
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Base Number Matches1

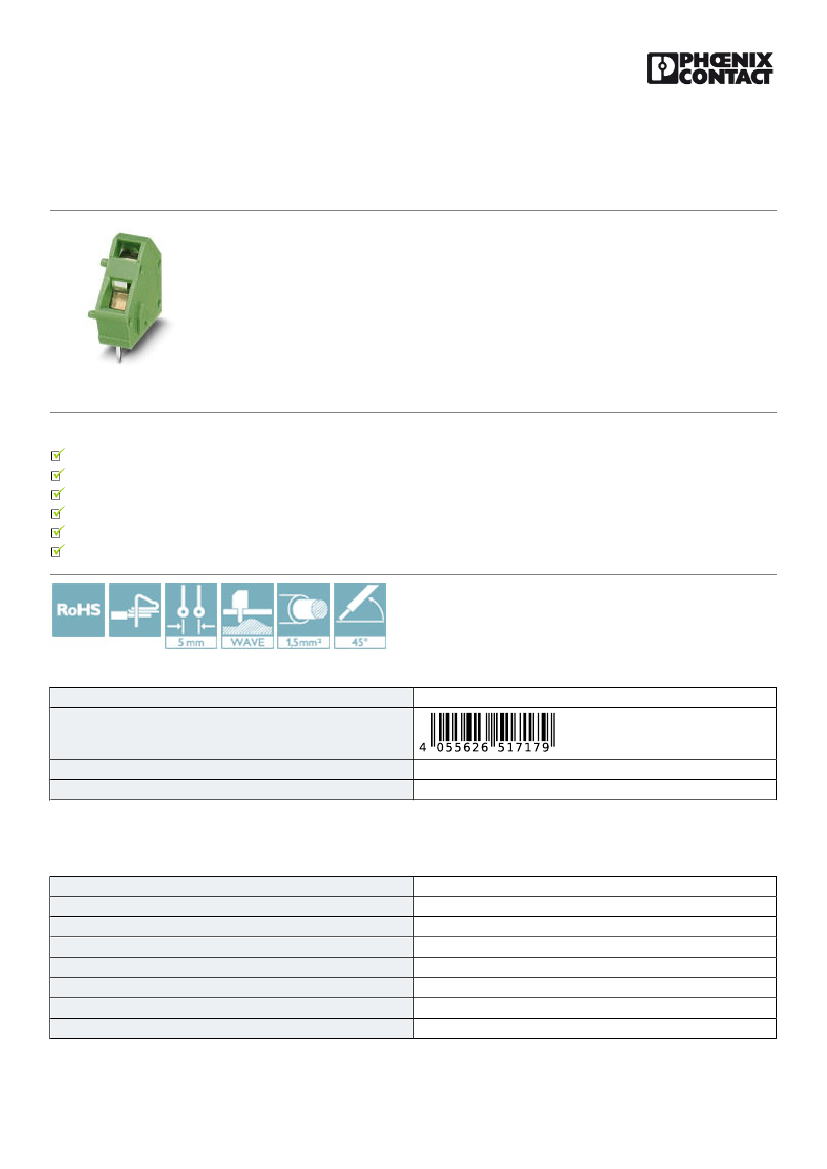

https://www.phoenixcontact.com/in/products/1025427
ZFKDSA 1,5C-5,0- 8 GY BD:1-8 - 1025427
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nom. voltage: 400 V, pitch: 5 mm, number of positions: 8, connection method: Spring-
cage connection, mounting: Wave soldering, color: gray
The figure shows a 1-pos. version
of the product
Your advantages
 Defined contact force ensures that contact remains stable over the long term
 Clamping space opened by means of fixed screwdriver enables convenient conductor connection
 Angled connection enables multi-row arrangement on the PCB
 Actuation shafts that are parallel and orthogonal to the conductor axis enable flexible PCB designs
 The latching on the side enables various numbers of positions to be combined
 Two solder pins reduce the mechanical strain on the soldering spots
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626517179
85369010
1
Technical data
Dimensions
Length [ l ]
Pitch
Dimension a
Width [ w ]
Height
Height [ h ]
Solder pin [P]
Pin spacing
14.1 mm
5 mm
35 mm
36 mm
12.75 mm
16.25 mm
3.5 mm
5.08 mm
01/03/2019   Page 1 / 3
