Note: Unbalanced is measured between ground-signal-ground conductors.Balanced is measured between conductors within a pair.
Environmental
Temperature Rating:
USA: CL2; 75°C or AWM; -20°C to + 80°C
Flammability Rating:
USA: N.E.C. 725, CL2
Canada: 80°C
Canada: FT1
UL File No.: E118773, Power Limited Circuit Cable: CL2 (or AWM Style 20267)
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

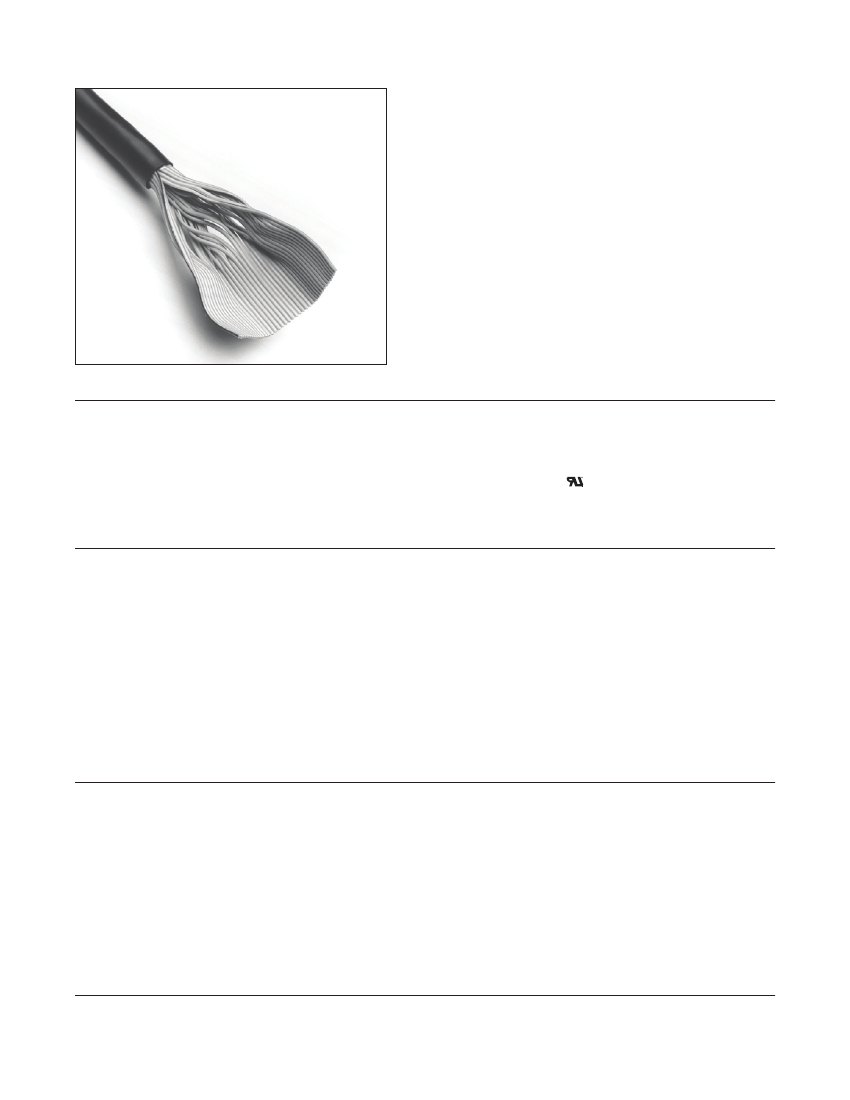

Round, Jacketed, Flat Cable
.050" 28 AWG Stranded, Mass-Term, PVC/PVC
Number of
Conductors
C
09
10
14
Inch
[Imm]
Tolerance Unless Noted
Inch
.0
±.1
.00
±.05
.000
±.010
15
16
20
24
25
26
30
34
36
37
40
50
60
64
3M Part
Number
3759/09
3759/10
3759/14
3759/15
3759/16
3759/20
3759/24
3759/25
3759/26
3759/30
3759/34
3759/36
3759/37
3759/40
3759/50
3759/60
3759/64
Diameter A ± .03
0.26 [ 6.6 ]
0.26 [ 6.6 ]
0.27 [ 6.9 ]
0.27 [ 6.9 ]
0.27 [ 6.9 ]
0.30 [ 7.6 ]
0.33 [ 8.4 ]
0.33 [ 8.4 ]
0.33 [ 8.4 ]
0.37 [ 9.4 ]
0.37 [ 9.4 ]
0.39 [ 9.9 ]
0.39 [ 9.9 ]
0.39 [ 9.9 ]
0.44 [ 11.2 ]
0.47 [ 11.9 ]
0.50 [ 12.7 ]
2.4 Ref
[ 61 ]
Bonded
Split
1.0 Ref.
[25]
3759 Series
Dimension B
(See Note 2)
0.40 [ 10.2 ]
0.45 [ 11.4 ]
0.65 [ 16.5 ]
0.70 [ 17.8 ]
0.75 [ 19.1 ]
0.95 [ 24.1 ]
1.15 [ 29.2 ]
1.20 [ 30.5 ]
1.25 [ 31.8 ]
1.45 [ 36.8 ]
1.65 [ 41.9 ]
1.75 [ 44.5 ]
1.80 [ 45.7 ]
1.95 [ 49.5 ]
2.45 [ 62.2 ]
2.95 [ 74.9 ]
3.15 [ 80.0 ]
[ ] Dimensions for Reference Only
Notes:
1. Red marking on one edge of primary cable designates wire #1.
2. Dimension B pertains to bonded area only.

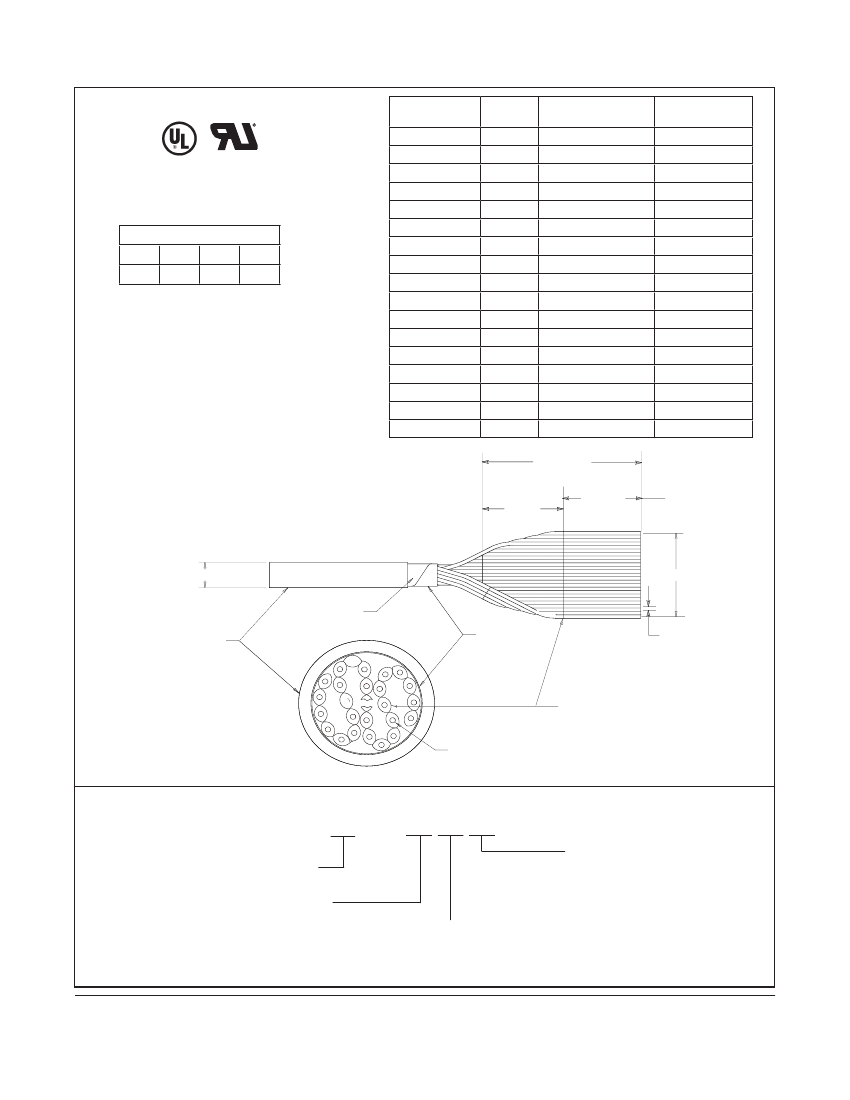

øA
Paper
[ Mfgr. Option ]
.026 Min [ 0.66 ]
PVC Jacket
Polyester Film
B
.050 Typ
[ 1.27 ]
PVC Primary Insulation
28 AWG, 7 X 36 AWG [ 7 X ø 0.127 ]
Tinned Stranded Copper Conductors
Ordering Information
3759/XX XX XX
Blank = Standard
SF = Splice Free
Blank = Standard
C = Canadian Certified Version
Number of Conductors
(See Table)
Blank = Continuous Split/Bonded Wire (Standard)
SO = Continuously Bonded Wire (No Split)
Note: Available in common lengths of 100 ft/roll or 300 ft/roll ( 30 m/roll
or 91 m/roll), please specify when ordering.
TS-0070-C
