334414: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size198KB，5 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

334414 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

334414 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2
body width	0.433 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	MALE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	334414
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	HOUSING SIDE
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Evacuation force-minimum value	.9452 N
Base Number Matches	1

Preview

Download Datasheet

View All

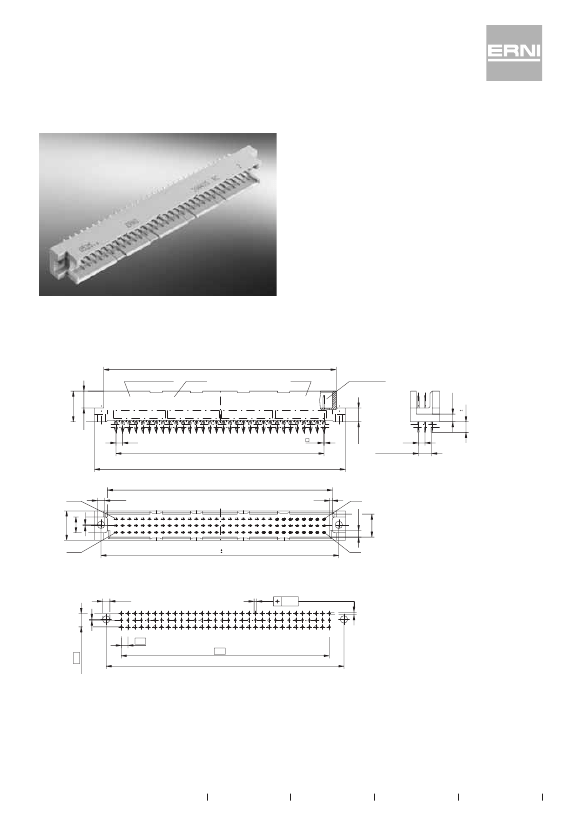

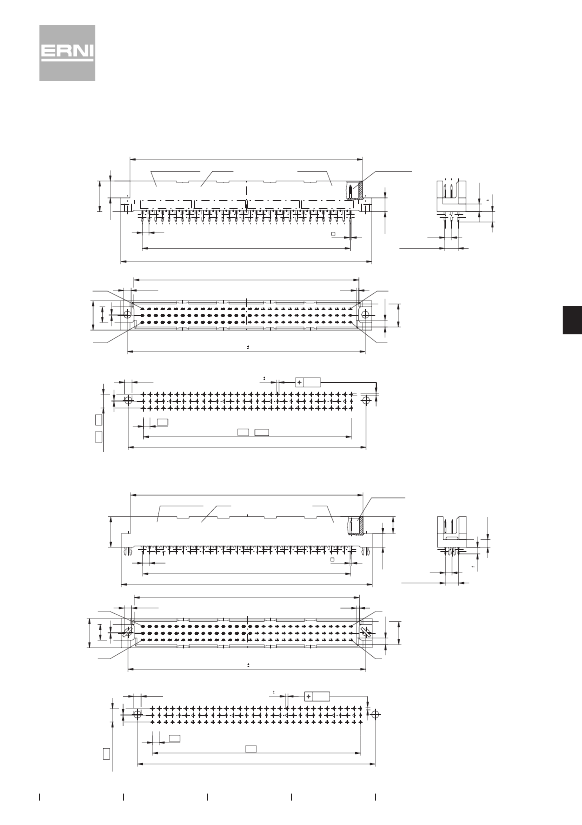

DIN 41612 / IEC 60603-2 Connectors

Type R Male

Dimensional Drawing Pressfit

Anforderungsstufe

class

Id.-Nr.

-0,2

Datum

date

Stecklänge

mating length

-0,3

11,6max

2,9

-0,1

6,4

5,2

2,54

31 x 2.54 = 78,74

0,6

2,54

2 x 2,54 = 5,08

95 max.

+0,2

85,2

+0,1

a32

2,8

-0,1

-0,2

11,1max

0,3

2,5

+0,1

c32

0,1

Leiterplatten-Lochbild /

+0,1

PCB drillhole pattern

alle Löcher/

0,05

all holes

2,8

8,7

ø 1,0

ø 1,15

+ 0,09

- 0,06

Durchmesser

+ 0,09

- 0,06

Diameter

0,025

des metallisierten Loches

of finished plated-through hole

0,3

Bohrungsdurchmesser des Loches

Diameter of drilled hole

2 x 2,54 = ( 5,08 )

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

2,54

31 x 2,54 = ( 78,74 )

402

Catalog E 074484

10/07

Edition 8

0,2

XXXX

ERNI

XXXXXX
