5440FMQB datasheet, PDF - EEWORLD Datasheet

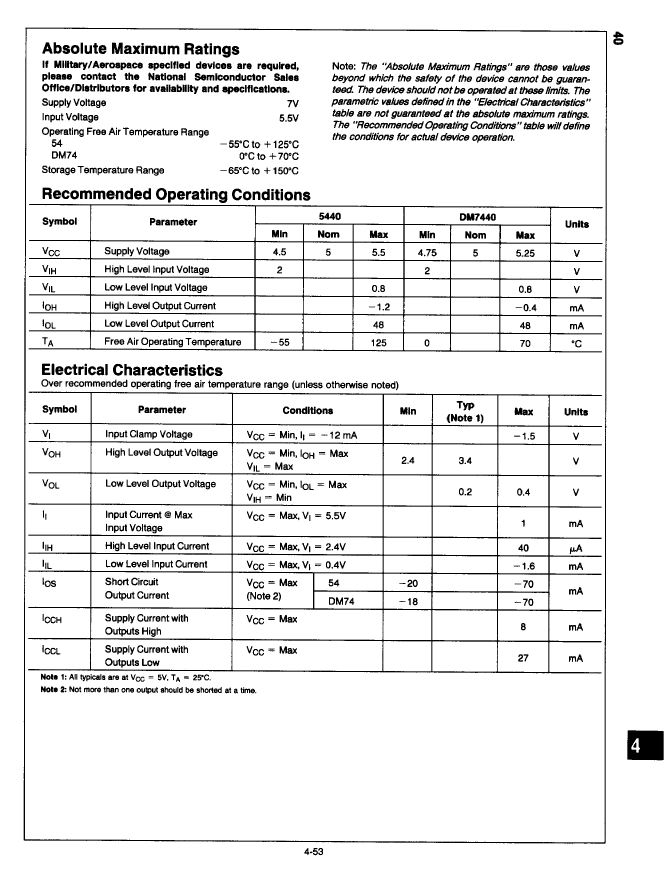

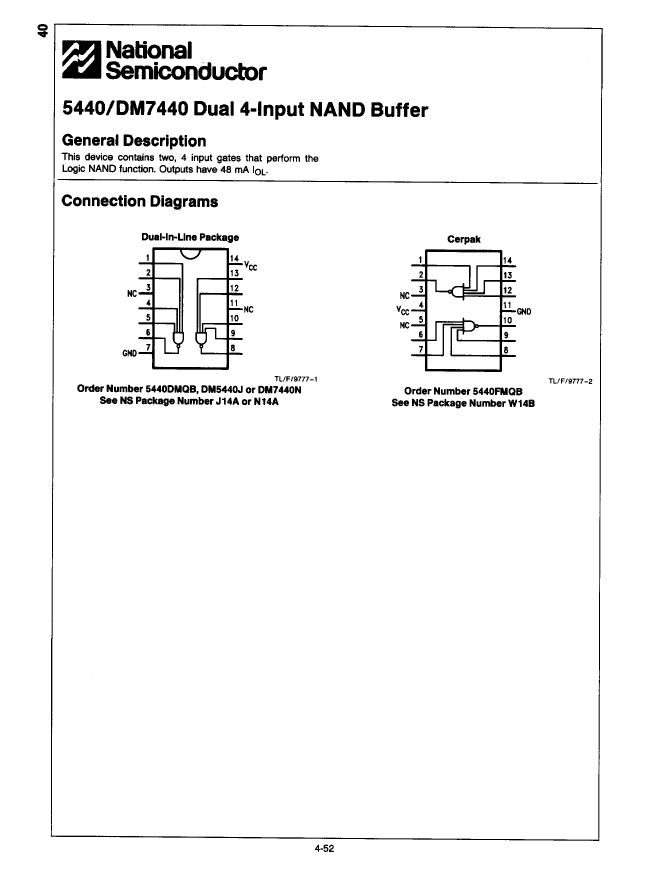

5440FMQB: DescriptionNAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size103KB，3 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

5440FMQB Overview

NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	CERAMIC, FP-14
Reach Compliance Code	unknown
Other features	IOL = 48MA @ VOL = 0.4V; IOH = 1.2MA @ VOH = 2.4V; CENTER PIN VCC AND GND
series	TTL/H/L
JESD-30 code	R-GDFP-F14
length	9.5885 mm
Logic integrated circuit type	NAND GATE
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	22 ns
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.2865 mm
Base Number Matches	1

	5440FMQB	DM5440J
Description	NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14	NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14
Maker	Rochester Electronics	Rochester Electronics
package instruction	CERAMIC, FP-14	DIP,
Reach Compliance Code	unknown	unknown
series	TTL/H/L	TTL/H/L
JESD-30 code	R-GDFP-F14	R-GDIP-T14
Logic integrated circuit type	NAND GATE	NAND GATE
Number of functions	2	2
Number of entries	4	4
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
propagation delay (tpd)	22 ns	22 ns
Maximum seat height	2.032 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	6.2865 mm	7.62 mm
