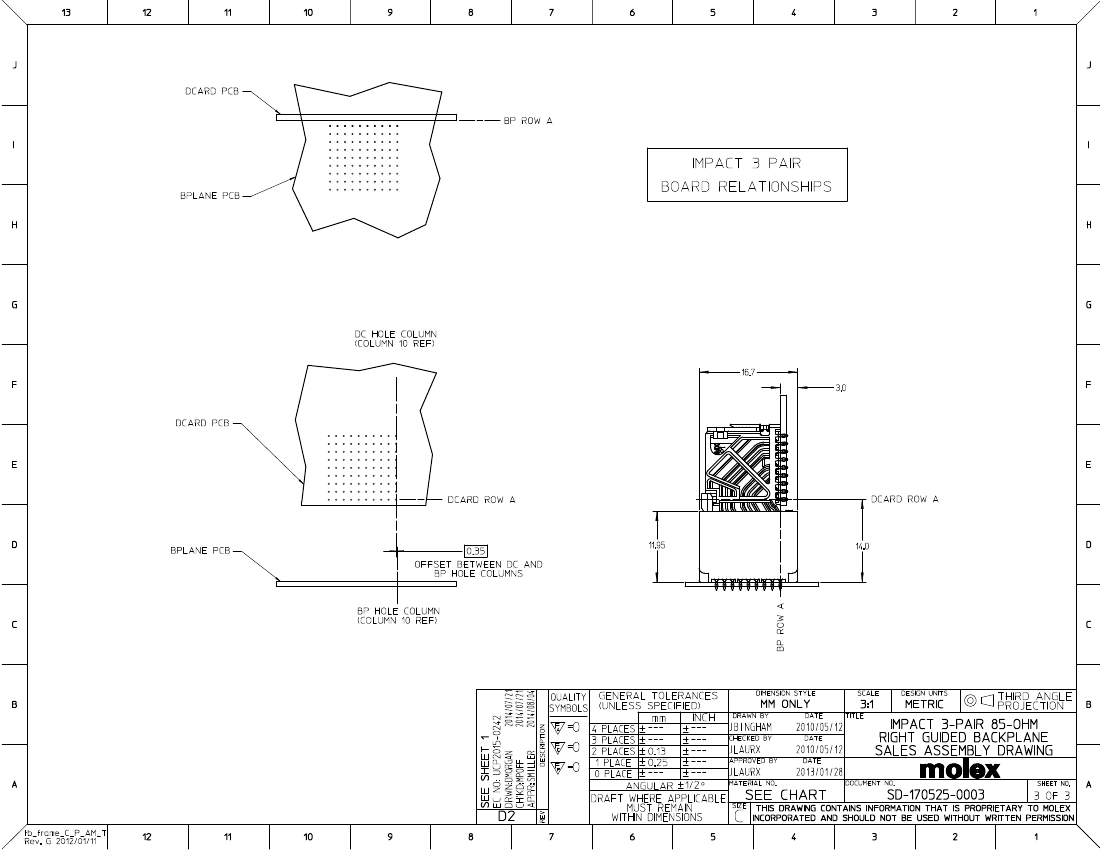

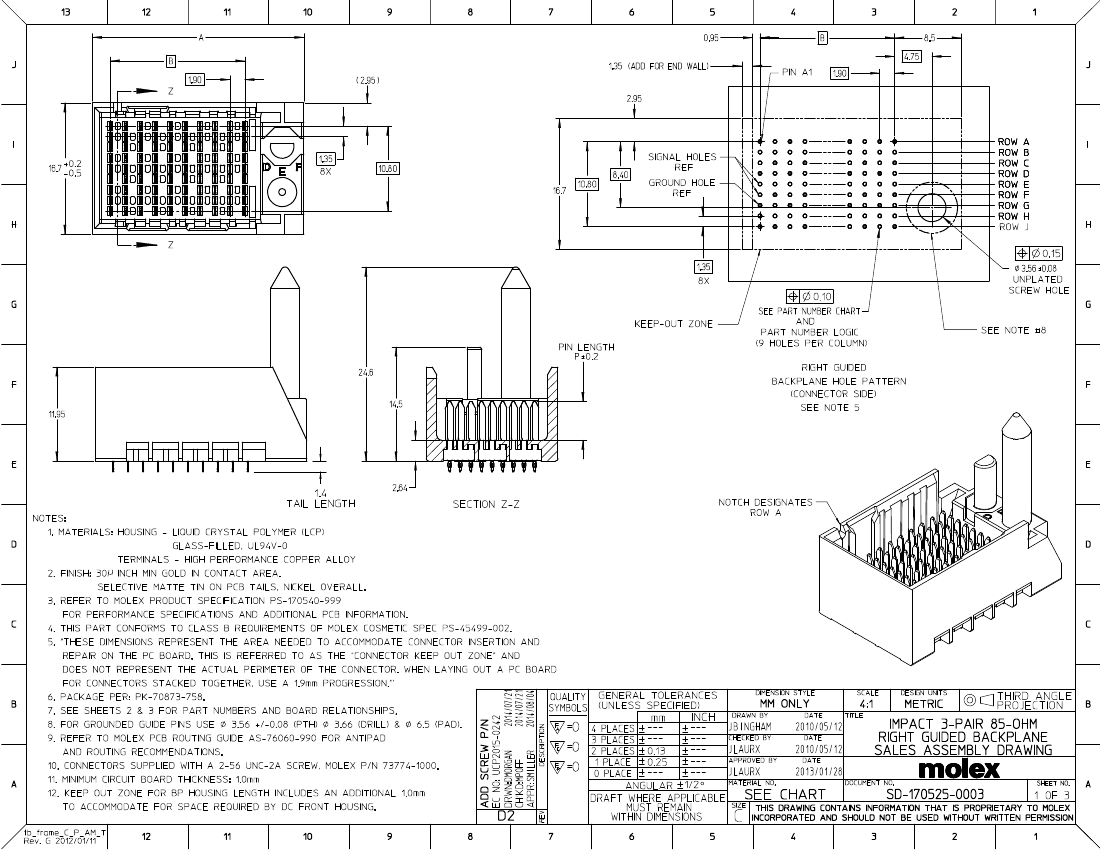

Board Connector, 72 Contact(s), 9 Row(s), Straight, 0.075 inch Pitch, Press Fit Terminal, Guide Pin, Gray Insulator

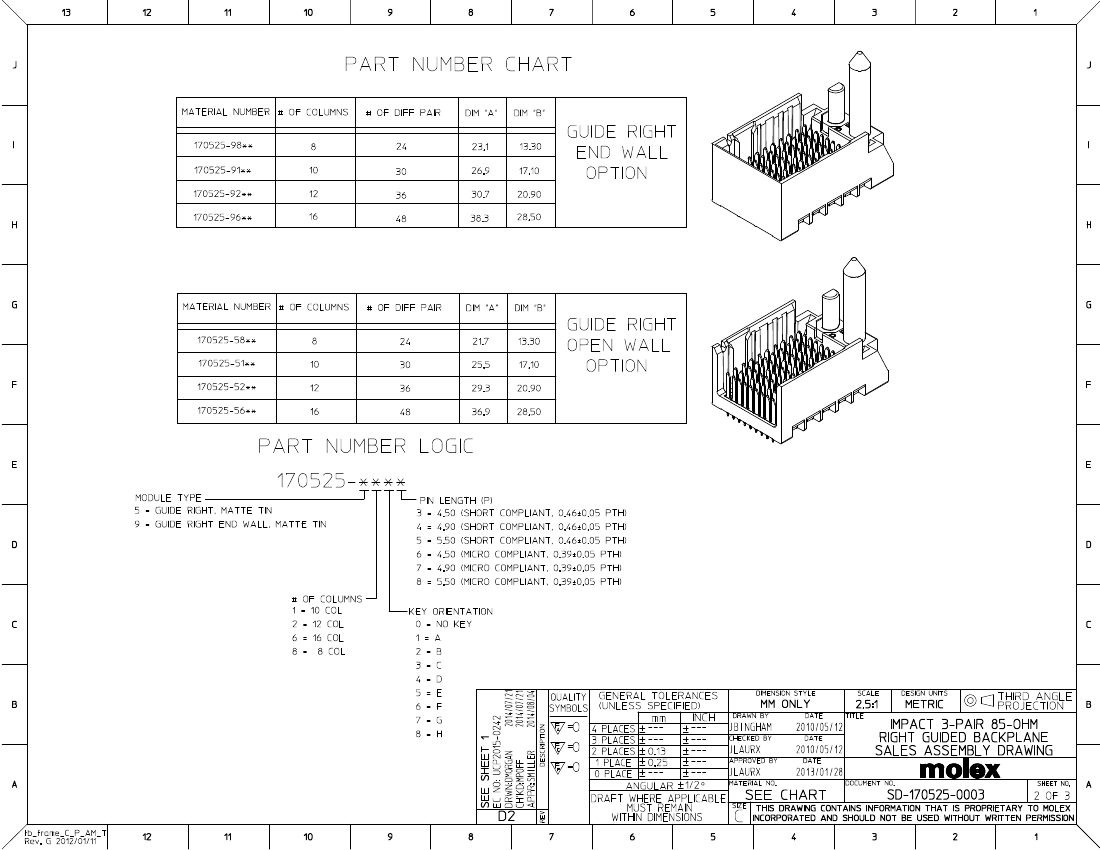

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) |
| Contact material | NOT SPECIFIED |
| Contact resistance | 10 mΩ |
| Dielectric withstand voltage | 250VAC V |
| Durability | 200 Cycles |
| maximum insertion force | .3892 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | GRAY |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e3 |
| Plug contact pitch | 0.075 inch |
| Installation option 1 | GUIDE PIN |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| Number of rows loaded | 9 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| Rated current (signal) | 0.75 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.055 inch |
| Terminal pitch | 1.905 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 72 |
| Evacuation force-minimum value | .0834 N |
| Base Number Matches | 1 |
| 1705255807 | 1705255117 | 1705255608 | 1705255607 | 1705255817 | 1705255107 | 1705255207 | 1705255177 | 1705255605 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Board Connector, 72 Contact(s), 9 Row(s), Straight, 0.075 inch Pitch, Press Fit Terminal, Guide Pin, Gray Insulator | Board Connector, 90 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator, | Board Connector, 144 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Guide Pin, Gray Insulator, | Board Connector, 144 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Guide Pin, Gray Insulator | Board Connector, 144 Contact(s), 9 Row(s), Straight, 0.075 inch Pitch, Solder Terminal, Locking, Gray Insulator, | Board Connector, 90 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Gray Insulator, | Board Connector, 108 Contact(s), 12 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Guide Pin, Gray Insulator, | IMPACT 85OHM BP 3X10 GR SN | Board Connector, 144 Contact(s), 9 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Guide Pin, Gray Insulator, |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compliant | compli | compli | unknow | compliant | compliant | compliant | unknown | compliant |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maker | Molex | - | - | - | Molex | Molex | Molex | Molex | Molex |
| ECCN code | EAR99 | EAR99 | - | EAR99 | - | EAR99 | - | - | EAR99 |
| Contact completed and terminated | Tin (Sn) | TIN | TIN | TIN | TIN | Tin (Sn) | Tin (Sn) | - | TIN |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | - | 10 mΩ |
| Dielectric withstand voltage | 250VAC V | 250VAC V | 250VAC V | 250VAC V | 250VAC V | 250VAC V | 250VAC V | - | 500VAC V |
| Durability | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles | - | 200 Cycles |
| maximum insertion force | .3892 N | .3892 N | .3892 N | .3892 N | - | - | .3892 N | - | .3892 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | - | 1000000000 Ω |
| Insulator color | GRAY | GRAY | GRAY | GRAY | GRAY | GRAY | GRAY | - | GRAY |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | - | THERMOPLASTIC |
| Plug contact pitch | 0.075 inch | 0.075 inch | 0.075 inch | 0.075 inch | 0.075 inch | 0.075 inch | 0.075 inch | - | 0.075 inch |
| Installation option 1 | GUIDE PIN | LOCKING | GUIDE PIN | GUIDE PIN | LOCKING | GUIDE PIN | GUIDE PIN | - | GUIDE PIN |
| Installation option 2 | LOCKING | - | LOCKING | LOCKING | - | LOCKING | LOCKING | - | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | - | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | - | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE | - | ONE |
| Number of rows loaded | 9 | 9 | 9 | 9 | 9 | 9 | 12 | - | 9 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | - | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | - | -55 °C |
| Rated current (signal) | 0.75 A | 0.75 A | 0.75 A | 0.75 A | 0.75 A | 0.75 A | 0.75 A | - | 0.75 A |
| Guideline | UL | UL | UL | UL | UL | - | - | - | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL |
| Terminal length | 0.055 inch | 0.055 inch | 0.055 inch | 0.055 inch | 0.055 inch | 0.055 inch | 0.055 inch | - | 0.055 inch |
| Terminal pitch | 1.905 mm | 1.905 mm | 1.905 mm | 1.905 mm | 1.905 mm | 1.9 mm | 1.905 mm | - | 1.905 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | SOLDER | PRESS FIT | PRESS FIT | - | PRESS FIT |
| Total number of contacts | 72 | 90 | 144 | 144 | 144 | 90 | 108 | - | 144 |
| Evacuation force-minimum value | .0834 N | .0834 N | .0834 N | .0834 N | - | - | .0834 N | - | .07228 N |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - | - | - |
| Contact point gender | - | MALE | MALE | MALE | - | MALE | MALE | - | MALE |
| Manufacturer's serial number | - | 170525 | 170525 | 170525 | 170525 | - | - | - | 170525 |
