BH6733HFV-TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BH6733HFV-TR

BH6733HFV-TR: DescriptionRegulator, 1 Output, CMOS, PDFP6,; CategoryPower/power management The power supply circuit; File Size211KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BH6733HFV-TR Overview

Regulator, 1 Output, CMOS, PDFP6,

BH6733HFV-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	DFP, FL6,.1,20
Reach Compliance Code	compliant
Adjustability	FIXED
Nominal dropback voltage 1	0.7 V
Maximum absolute input voltage	6.5 V
JESD-30 code	R-PDFP-F6
Maximum grid adjustment rate	0.01%
Maximum load regulation	0.1%
Output times	1
Number of terminals	6
Maximum output current 1	0.3 A
Nominal output voltage 1	3.3 V
Package body material	PLASTIC/EPOXY
encapsulated code	DFP
Encapsulate equivalent code	FL6,.1,20
Package shape	RECTANGULAR
Package form	FLATPACK
method of packing	TAPE AND REEL
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Terminal form	FLAT
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum voltage tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

1/4

STRUCTURE

PRODUCT

Silicon Monolithic Integrated Circuit

CMOS Type Series Regulator

TYPE

BH6733HFV

○ PIN DESCRIPTION

Pin No.

Pin Name

VIN

N.C.

VOUT

GND

STBY

Description

Input Pin

No Connect

Output Pin

Slow Start Pin

Ground Pin

Output Control Pin

(High:ON, Low:OFF)

VOLTAGE

REFERENCE

○ BLOCK DIAGRAM and APPLICATION CIRCUIT

VIN

N.C.

CIN

VOUT

THERMAL

PROTECTION

VOUT

COUT

GND

OVER CURRENT

PROTECTION

VSTB

STBY

CONTROL

BLOCK

DISCHARGE

CSS

CIN = 4.7μF（Ceramic）

Fig.1 Block Diagram and Application Circuit COUT = 4.7μF（Ceramic）

CSS = 4700pF（Ceramic）

○ ABSOLUTE MAXIMUM RATINGS (Ta=25℃)

Parameter

Symbol

Limit

Unit

℃

Power Supply Voltage

VMAX

-0.3 ½ +6.5

Power Dissipation

680 (*1)

Maximum junction temperature

TjMAX

+125

Operating Temperature Range

Topr

-40 ½ +85

Storage Temperature Range

Tstg

-55 ½ +125

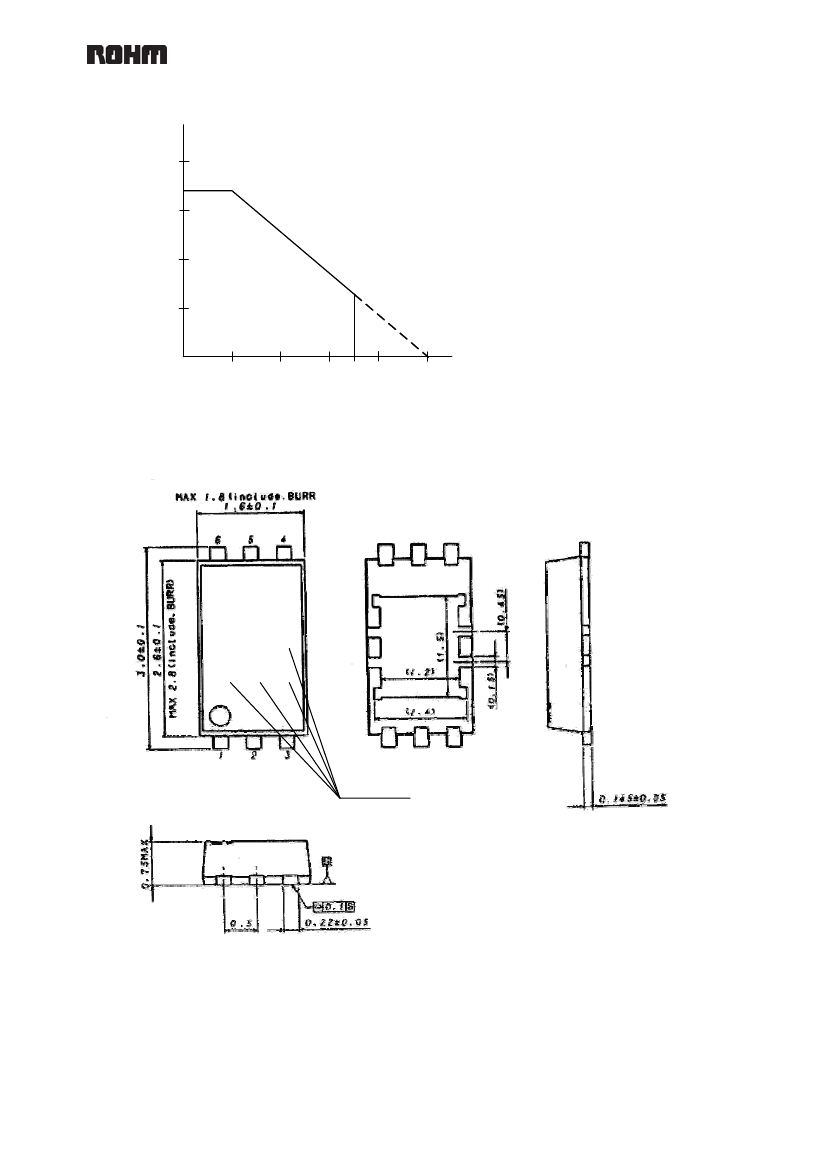

(*1) Pd derated at 6.8mW/℃ for temperature above Ta=25℃,

mounted on 70mm×70mm×1.6mm glass-epoxy

PCB.

Status of this document

The Japanese version of this document is the official specification.

Please use the translation version of this document as a reference to expedite understanding of the official version.

If there is any uncertainty in translation version of this document, official version takes priority.

REV. B

4/4

○ ORERATION NOTES

1.) Absolute Maximum Ratings

This product is produced with strict quality control, however, may be destroyed if it is operated beyond its absolute maximum ratings. If

the device is destroyed in exceeding the recommended maximum ratings, the failure mode will be difficult to determine (E.g. short mode,

open mode). Therefore, physical protection counter-measures (like fuse) should be implemented when operating conditions are

beyond the absolute maximum ratings specified.

2.) GND Potential

GND potential must be the lowest potential no matter what may happen. Actually, including transitional states, all pins except GND must

not be the voltage below GND.

3.) Setting of Heat

Consider Pd of actually using states, carry out the heat design that have adequate margin.

4.) Pin Short and Mistake Fitting

When mounting the IC on the PCB, pay attention to the orientation of the IC. If there is a placement mistake, the IC may be burned up.

5.) Actions in Strong Magnetic Field

Using the IC within a strong magnetic field may cause a malfunction.

6.) Mutual Impedance

Use short and wide wiring tracks for the power supply and ground to keep the mutual impedance as small as possible. Use a capacitor

to keep ripple to a minimum.

7.) Voltage of STBY Pin

For standby mode, set STBY voltage below 1.1V. For normal operation, set the pin voltage beyond 2.5V. It is not recommended to set

STBY voltage between 1.1V and 2.5V, and it may cause improper operation. And, please be sure to turn STBY Control Voltage ON from

OFF after applying Operating Voltage on VIN pin.

8.) Over Current Protection Circuit

Over current and short circuit protection is built-in at the output, and IC destruction is prevented at the time of load short circuit.

These protection circuits is effective in the destructive prevention by the sudden accident, please avoid use to which a protection

circuit operates continuously.

9.) Thermal Shutdown

This IC has Thermal Shutdown Circuit (TSD Circuit). When the temperature of IC Chip is higher than 175℃, the output turned off by

TSD Circuit. TSD Circuit is only designed for protecting IC from thermal over load, therefore it is not recommended that you design the

application as TSD working in normally condition.

10.) SS Pin

SS pin can drive quite small current, because the pin is directly connected to reference voltage circuit. It may be that output voltage is

dropping when the load of SS pin is more than 100nA. If the pin is connected to a capacitor, please use a ceramic capacitor for small

leak current. Please take care that output noise is smaller as SS pin capacitor is larger, but startup time is longer.

11.) Input / Output Capacitor

Mounting input capacitor between input pin and GND (as close to pin as

possible), and also output capacitor between output pin and GND (as close

to pin as possible) is recommended. The input capacitor reduces the output

impedance of the voltage supply source connected to the VIN. The higher

ESR (Ω)

100

CIN=4.7μF , COUT=4.7μF , Temp=25℃

value the output capacitor goes, the more stable the whole operation

becomes. This leads to high load transient response. Please confirm the

whole operation on actual application board. Fig4 is the relation of IOUT and

ESR.. Please confirm the whole operation on actual application board.

Generally, ceramic capacitor has wide range of tolerance, temperature

coefficient, and DC bias characteristic. And also its value goes lower as time

progresses. Please choose ceramic capacitors after obtaining more detailed

data by asking capacitor makers.

Stable region

0.1

0.01

100

Output Current

200

IOUT (mA)

300

Fig.4 Stable region (Example)

REV. B

Appendix

Notes

No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM

CO.,LTD.

The content specified herein is subject to change for improvement without notice.

The content specified herein is for the purpose of introducing ROHM's products (hereinafter "Products"). If you

wish to use any such Product, please be sure to refer to the specifications, which can be obtained from ROHM

upon request.

Examples of application circuits, circuit constants and any other information contained herein illustrate the

standard usage and operations of the Products. The peripheral conditions must be taken into account when

designing circuits for mass production.

Great care was taken in ensuring the accuracy of the information specified in this document. However, should

you incur any damage arising from any inaccuracy or misprint of such information, ROHM shall bear no respon-

sibility for such damage.

The technical information specified herein is intended only to show the typical functions of and examples of

application circuits for the Products. ROHM does not grant you, explicitly or implicitly, any license to use or

exercise intellectual property or other rights held by ROHM and other parties. ROHM shall bear no responsibility

whatsoever for any dispute arising from the use of such technical information.

The Products specified in this document are intended to be used with general-use electronic equipment or

devices (such as audio visual equipment, office-automation equipment, communication devices, electronic

appliances and amusement devices).

The Products are not designed to be radiation tolerant.

While ROHM always makes efforts to enhance the quality and reliability of its Products, a Product may fail or

malfunction for a variety of reasons.

Please be sure to implement in your equipment using the Products safety measures to guard against the

possibility of physical injury, fire or any other damage caused in the event of the failure of any Product, such as

derating, redundancy, fire control and fail-safe designs. ROHM shall bear no responsibility whatsoever for your

use of any Product outside of the prescribed scope or not in accordance with the instruction manual.

The Products are not designed or manufactured to be used with any equipment, device or system

which requires an extremely high level of reliability the failure or malfunction of which may result in a direct

threat to human life or create a risk of human injury (such as a medical instrument, transportation equipment,

aerospace machinery, nuclear-reactor controller, fuel-controller or other safety device). ROHM shall bear no

responsibility in any way for use of any of the Products for the above special purposes. If a Product is intended

to be used for any such special purpose, please contact a ROHM sales representative before purchasing.

If you intend to export or ship overseas any Product or technology specified herein that may be controlled under

the Foreign Exchange and the Foreign Trade Law, you will be required to obtain a license or permit under the Law.

Thank you for your accessing to ROHM product informations.

More detail product informations and catalogs are available, please contact your nearest sales office.

ROHM

Customer Support System

www.rohm.com

2008 ROHM CO.,LTD.

THE AMERICAS

EUROPE

ASIA

JAPAN

webmaster@ rohm.co. jp

21 Saiin Mizosaki-cho, Ukyo-ku, Kyoto 615-8585, Japan

TEL : +81-75-311-2121

FAX : +81-75-315-0172

Appendix1-Rev3.0
