EMC filters
3-line filters
for regenerative converters
Series/Type:
Date:
B84143*R410
May 2014
© EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
3-line filters
for regenerative converters
B84143*R410
Power line filters for 3-phase systems
Rated voltage V
R
: 520/300 V AC
Rated current I
R
: 35 A to 230 A
Construction
3-line filters
Metal case
Book size
Features
High insertion loss
Easy to install
Compact design
Degree of protection: IP 20
1)
Optimized for long motor cables
and operation under full load
Design complies with IEC 60939
UL and cUL approval
Typical applications
Frequency converters and regenerative frequency
converters (AFE) for motor drives, e.g.
elevators
machine tools
pumps
traction systems
conveyor systems
HVAC systems (heating, ventilation and air
conditioning)
Terminals
Finger-safe terminal blocks
Marking
Marking on component:
Manufacturer's logo, ordering code, rated voltage, rated
current, rated temperature, climatic category, date code,
approvals
Minimum data on packaging:
Manufacturer's logo, ordering code, quantity, date code
1) According to IEC 60529
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 15
3-line filters
for regenerative converters
B84143*R410
Typical circuit diagrams
B84143A0035R410, B84143A0200R410, B84143A0230R410
B84143A0050R410, B84143A0080R410, B84143A0110R410, B84143A0150R410
B84143B0200R410, B84143B0230R410
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 15
3-line filters
for regenerative converters
B84143*R410
Technical data and measuring conditions
Rated voltage V
R
Rated current I
R
Test voltage V
test
Overload capability (thermal)
Leakage current l
LK
Climatic category (IEC 60068-1)
Approvals
520/300 V AC (50/60 Hz)
Referred to 50
°C
rated temperature
2240 V DC, 2 s (line/line)
2720 V DC, 2 s (lines/case)
1.5 I
R
for 3 min per hour or
2.5 I
R
for 30 s per hour
At V
R
and 50 Hz
25/100/21 ( 25
°C/+100 °C/21
days damp heat test)
UL 1283 and CSA C22.2 No.8
Characteristics and ordering codes
I
R
A
Terminal cross
section
mm
2
I
LK
mA
14
15
15
15
15
10
18
10
18
R
typ
mΩ
2.9
1.6
0.9
0.65
0.6
0.3
0.39
0.25
0.35
Approx.
weight
kg
2.5
4.5
8.5
9.0
13.5
14.0
19.0
14.5
19.0
Ordering code
Approvals
V
R
= 520/300 V AC
35
10
50
25
80
50
110
50
150
95
200
95
200
95
230
95
230
95
×
= Approval granted
B84143A0035R410
B84143A0050R410
B84143A0080R410
B84143A0110R410
B84143A0150R410
B84143A0200R410
B84143B0200R410
B84143A0230R410
B84143B0230R410
×
×
×
×
×
×
×
×
×
×
×
×
×
×
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 15
3-line filters
for regenerative converters
B84143*R410

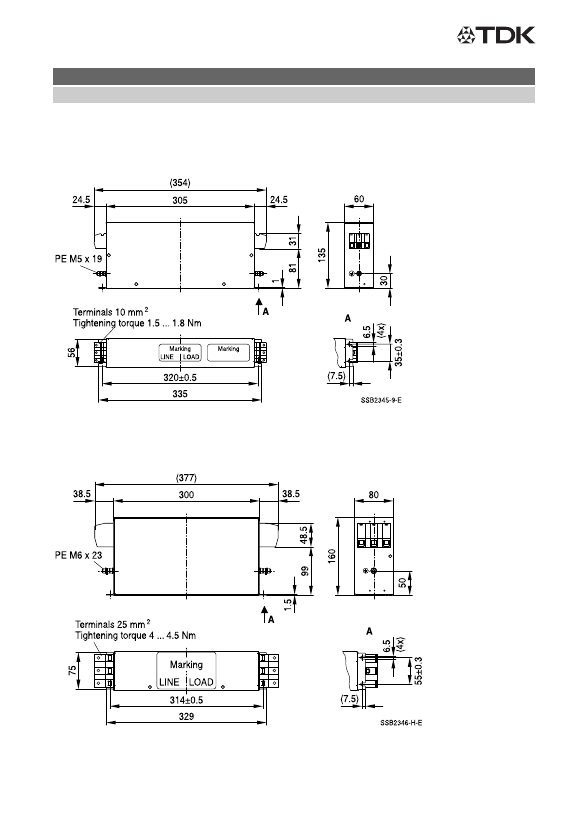

Dimensional drawings
B84143A0035R410 (35 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
B84143A0050R410 (50 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 15
