835-00840: DescriptionSMPS Transformer, 13W; CategoryPower management transformer; File Size65KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric Compare View All

835-00840 Overview

SMPS Transformer, 13W

835-00840 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ALSO; FLY BACK; TURNS RATIO IS 1:0.57
high	8.38 mm
Maximum input voltage	72 V
Minimum input voltage	36 V
length	17.15 mm
Manufacturer's serial number	835-00840
Installation features	SURFACE MOUNT
Number of primary windings	3
Number of secondary windings	2
Maximum operating frequency	250 kHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output voltage 1	19.5 V
method of packing	TAPE & REEL
physical size	L17.15XB21.97XH8.38 (mm)
rated power	13 W
Primary inductance	37 µH
surface mount	YES
Transformer type	SMPS TRANSFORMER
width	21.97 mm
Base Number Matches	1

Preview

Download Datasheet

View All

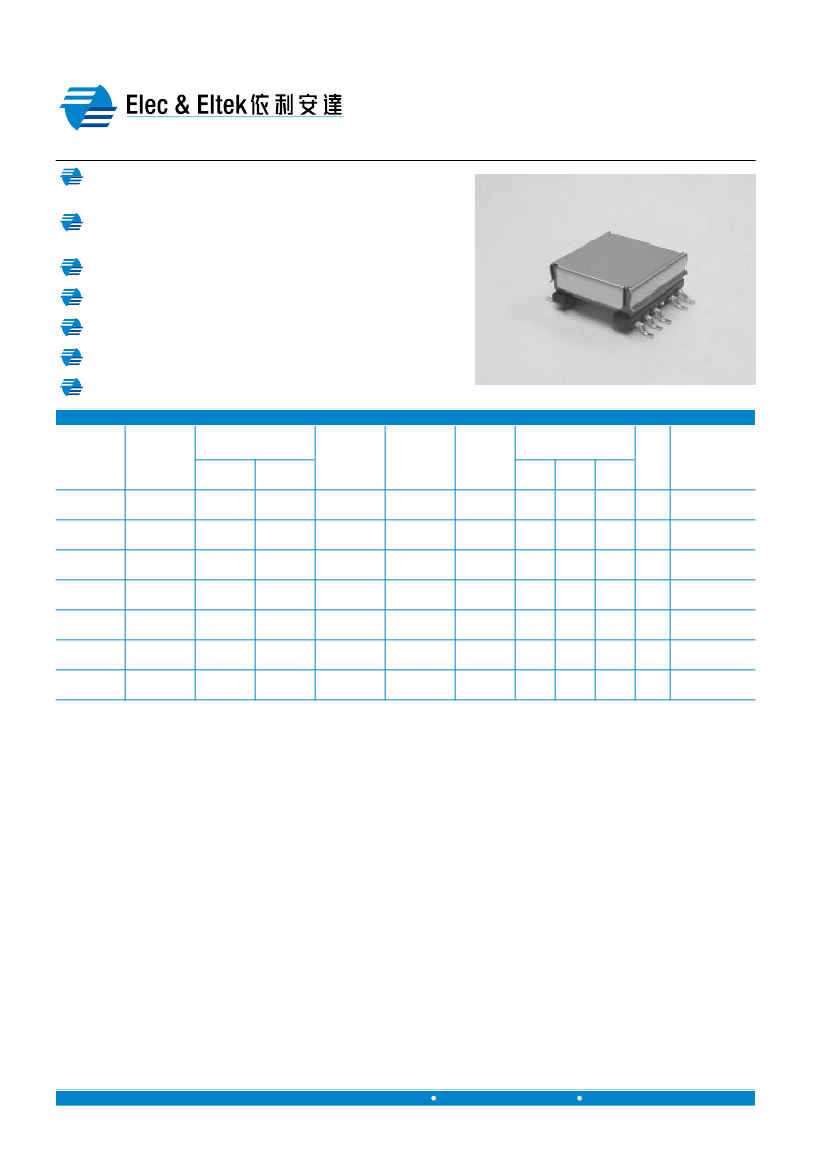

E & E Magnetic Products Limited

POWER TRANSFORMER

Flyback Transformer for PoE

Providing Power to PoE devices with up to 13 Watts

S

CHEMATICS

Flyback transformers designed for PoE (IEEE802.3af)

powered devices with up to 13 Watts

Designed for 250kHz switching frequency with input of

36 - 72V

Low Leakage Inductance

Hipot voltage: 1500Vrms

Operating temperature -40°C to +125°C.

RoHS compliant version is available

Custom design is also available

E

LECTRICAL

S

PECIFICATION @

25°C

Part

Number

835-00835

835-00836

835-00837

835-00838

835-00839

835-00840

835-00841

RoHS

Part

Number

835-00835F

835-00836F

835-00837F

835-00838F

835-00839F

835-00840F

835-00841F

Turns Ratio

Pri : Sec

1 : 0.07

1 : 0.08

1 : 0.11

1 : 0.15

1 : 0.35

1 : 0.57

1 : 0.67

Pri : Bias

1 : 0.36

1 : 0.33

1 : 0.36

1 : 0.35

1 : 0.33

Inductance

at 0A

(uH ± 10%)

45

35

40

35

37

Inductance Leakage

at Ipk

Inductance

(uH Min)

(nH Max)

40.5

31.5

36.0

31.5

33.3

7.9

4.2

3.4

1.9

0.6

0.4

DCR

(mOhm Max)

Pri

195

95

138

130

95

85

86

Sec

5

7

9

17

25

49

Bias

195

150

180

165

150

385

370

Ipk

(A)

Secondary

Output

Vout=1.8V,7.2A

Vout=2.5V,5.2A

Vout=3.3V,3.9A

Vout=5.0V,2.6A

Vout=12V,1.1A

Vout=19.5V,0.67A

Vout=24V,0.54A

2.3

2.2

2.1

2.0

Notes:

1. Inductance is measured at 250kHz, 0.3Vrms.

2. Peak primary current, Ipk, is drawn at minimum input voltage.

3. DCR for the primary and for the secondary are with the windings connected in parallel.

4. Leakage Inductance is for the primary winding with the secondary winding shorted.

5. Turns ratio are with the primary and the secondary windings connected in parallel.

6. Output of the secondary is with the windings connected in parallel. Bias winding output is 12V, 20mA.

7.Operating temperature range: -40°

C

to +125°C. The part temperature (ambient temperature + temperature rise)

should not exceed the upper limit of the operating temperature under worst case operating conditions. Circuit design,

component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part

temperature. Part temperature should be verified in the end application.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

1

Tel: (852) 2765 3888

Fax: (852) 2954 3304

PX201(01)

Revised in 06/12
