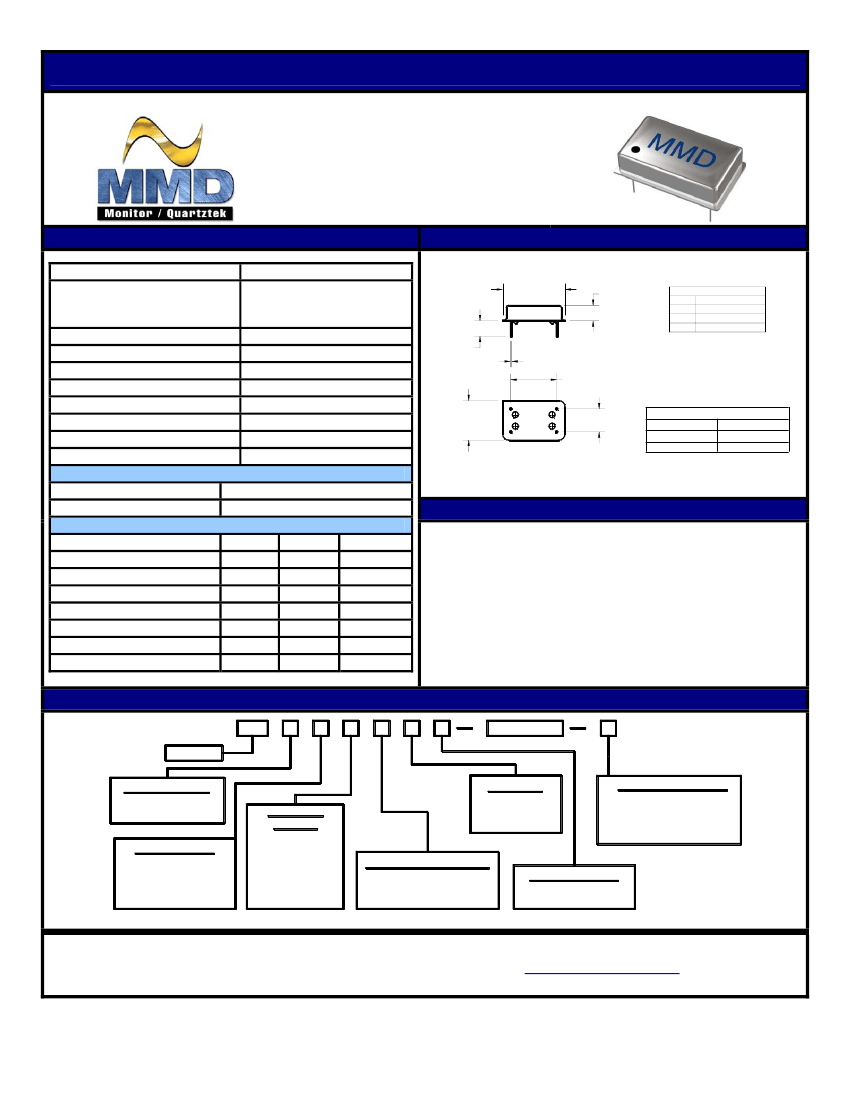

MAH Series
Industry Standard
Package
RoHS Compliant Available
HCMOS Output
Wide Frequency Range
ELECTRICAL SPECIFICATIONS:
Frequency Range
5.000kHZ to 200.000MHz
Frequency Stability (Inclusive
of Temperature, Load, Voltage
See Part Number Guide
and Aging)
Operating Temperature
See Part Number Guide
Storage Temperature
-55°C to +125°C
Waveform
HCMOS
Logic “0”
10% Vdd max
Logic “1”
90% Vdd min
Duty Cycle 50% OF Waveform
See Part Number Guide
Load
10 TTL Gates or 50pF max
Start Up Time
10mSec max
Rise/Fall Time
Up to 70.000MHZ
6 nSec max
Above 70.000MHZ
4 nSec max
Supply Voltage (VDC ±10%) – Supply Current (in mA max)
+5.0
+3.3
+2.5/+1.8
5.000kHz to 1.000MHz
35
10
NA
1.001MHz to 24.000MHz
45
25
NA
24.001MHz to 50.000MHz
55
35
NA
50.001MHz to 70.000MHz
60
35
NA
70.001MHZ to 200.000MHZ
85
40
NA
24.000MHz to 30.000MHz
NA
NA
20
30.001MHz to 80.000MHz
NA
NA
40
MECHANICAL DETAILS:
20.70 [.815]
MAX
5.08 [.200]
PIN CONNECTIONS
PIN 1 N/C OR TRI-STATE
PIN 7 CASE GROUND
PIN 8 OUTPUT
PIN 14 SUPPLY VOLTAGE
5.08 [.200]
MIN
.50 [.020]
15.24 [.600]
1
14
7
DIMENSIONS IN BRACKET ARE IN INCHES
EXTERNAL BYPASS CAPACITOR RECOMMENDED
13.10 [.516]
MAX
7.62 [.300]
8
TRI-STATE OPERATION
PIN 8
PIN 1
LOGIC "1" OR N/C
OSCILLATION
LOGIC "0" OR GRD HIGH IMPEDANCE
MARKING:
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Line 2: SYYMML
S = Internal Code
YYMM = Date Code (Year/Month)
L = Denotes RoHS Compliant
Line 3: XXXXX
Internal Manufacture Code
PART NUMBER GUIDE:
MAH
14 pin DIP
RoHS Compliant
Blank = Not Compliant
F = Is RoHS Compliant
Supply Voltage
5 = +5.0 VDC
3 = +3.3 VDC
2 = +2.5 VDC
1 = +1.8 VDC
Frequency
Stability
010 = ±10 ppm
020 = ±20 ppm
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
110 = ±10/10 ppm
Symmetry
Blank = 40/60%
A = 45/55%
B = 47.5/52.5%
Operating Temperature
Blank = 0°C to +70°C
27 = -20°C to +70°C
48 = -40°C to +85°C
Value Added Options
Blank = No Added Options
G = Gull-Wing (option 2)
CLXXX = Cut Leads
XXX = Lead Length Code
FREQUENCY
Pin 1 Connection
Blank = No Connect
H = Tri-state
PLEASE CONSULT WITH MMD SALES DEPARTMENT FOR ANY OTHER PARAMETERS OR OPTIONS
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision 11/14/06 E
