SH30091R3YLA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SH30091R3YLA

SH30091R3YLA: DescriptionGeneral Purpose Inductor, 1.3uH, 30%, Ferrite-Core, 1515,; CategoryPassive components inductor; File Size124KB，6 Pages; ManufacturerABC [ABC Taiwan Electronics Corp]; Environmental Compliance

Download Datasheet Parametric Compare View All

SH30091R3YLA Overview

General Purpose Inductor, 1.3uH, 30%, Ferrite-Core, 1515,

SH30091R3YLA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ABC [ABC Taiwan Electronics Corp]
package instruction	1515
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1515
structure	Shielded
core material	Ferrite
DC Resistance	0.082 Ω
Nominal inductance(L)	1.3 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	0.9 mm
Package length	3.8 mm
Package form	SMT
Package width	3.8 mm
method of packing	Bulk
Minimum quality factor (at nominal inductance)	8
Maximum rated current	1.6 A
self resonant frequency	145 MHz
series	SH3009-L
shield	YES
Tolerance	30%
Base Number Matches	1

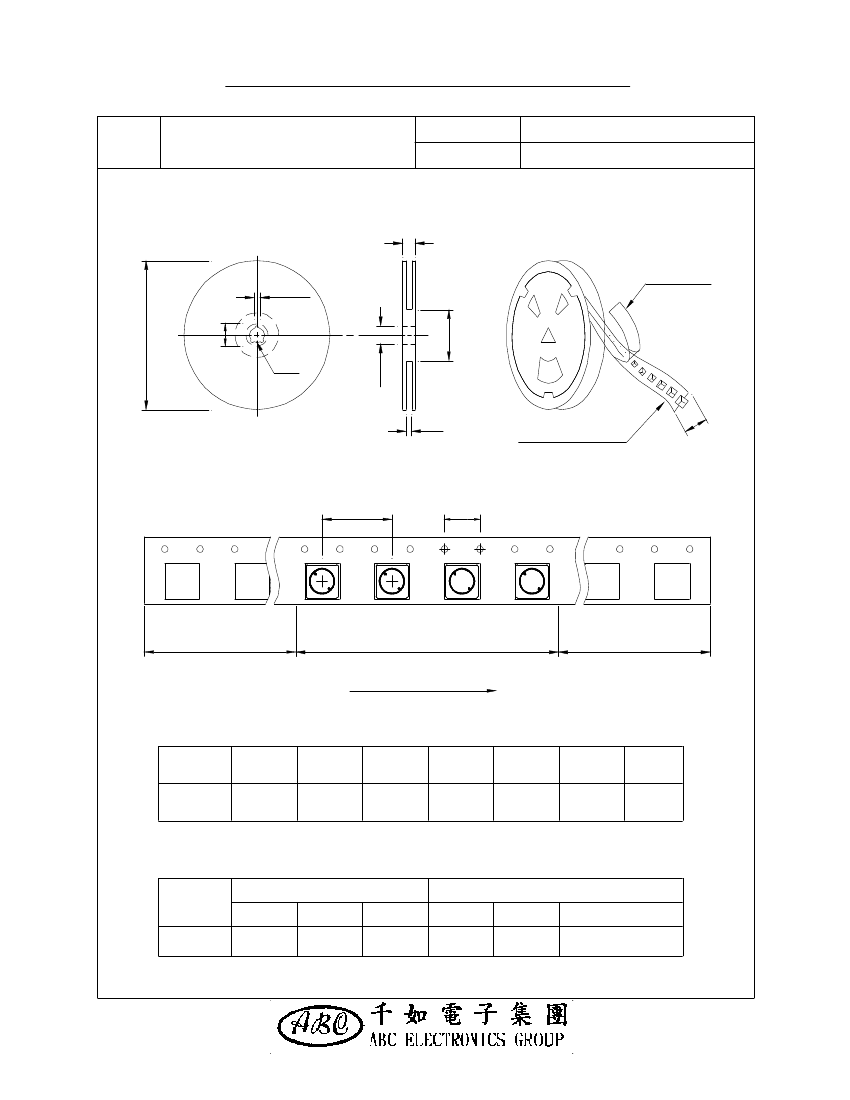

Preview

Download Datasheet

View All

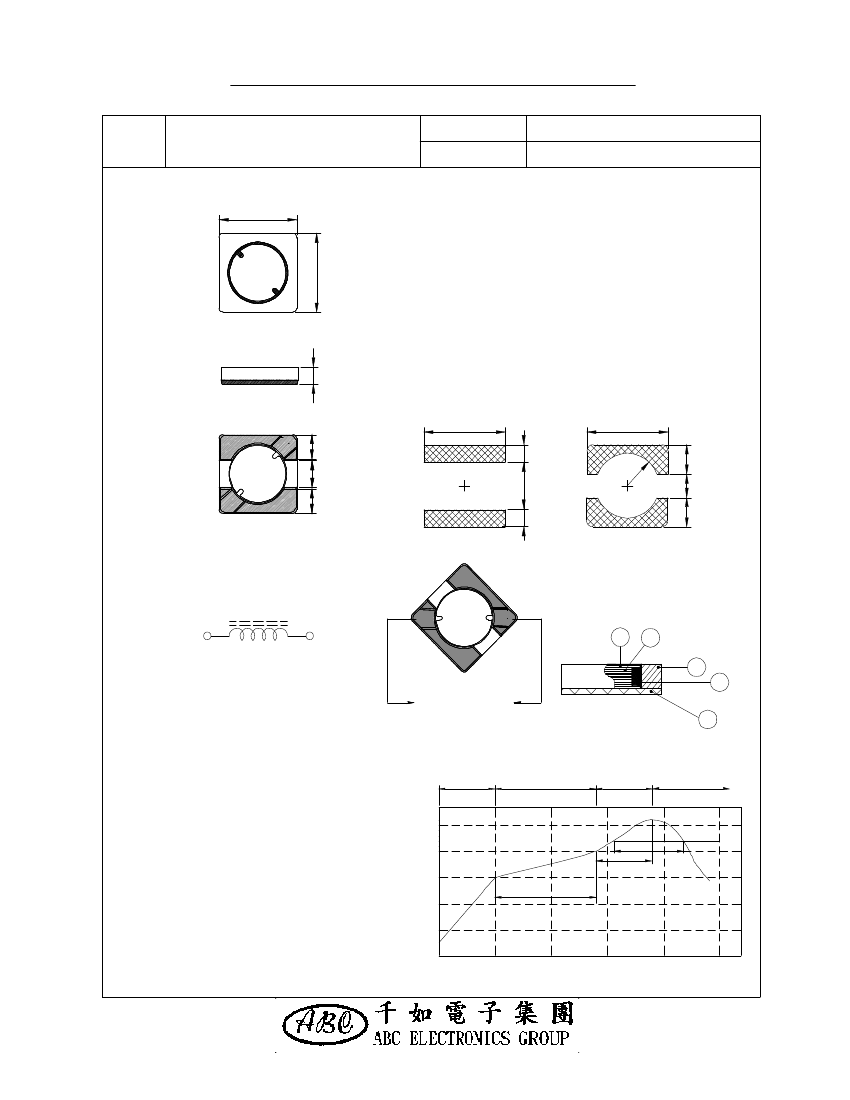

SPECIFICATION FOR APPROVAL

REF : 20070504-B

PROD.

NAME

PAGE: 1

ABC'S DWG NO.

ABC'S ITEM NO.

SH3009□□□□L□-□□□

SHIELDED SMD

POWER INDUCTOR

Ⅰ﹒CONFIGURATION

& DIMENSIONS：

3.80

±0.30

3.80

±0.30

0.90

±0.10

1.30 typ.

1.20 typ.

4.30 ref.

1.00 ref.

2.50 ref.

1.60 ref.

1.10 ref.

1.30 ref.

m/m

100

( PCB Pattern Suggestion )

Ⅱ﹒SCHEMATIC

DIAGRAM：

Ⅲ﹒MATERIALS：

a﹒Core：Ferrite DR core

b﹒Core：Ferrite RI core

c﹒Wire

：Enamelled

copper wire ( Class H )

d﹒Adhesive

：Epoxy

resin

e﹒Terminal：Ag/Ni/Sn

f﹒Remark：Products comply with RoHS'

requirements

Temperature (

℃

)

Preheat Area

Reflow Area

+3.0

℃

/ sec max.

Forced Cooling Area

-(1.0 ~ 5.0)

℃

/ sec max.

Peak Temperature:

260℃

217℃

60sec~150sec

60sec max.

60sec~120sec

LCR Meter

Peak Temp：260℃ max.

Max. Peak Temp - 5℃：30sec max.

Max time above 217℃

：60sec~150sec

max.

Temperature

Rising Area

+4.0

℃

/ sec max.

150 ~ 200

℃

/ 60 ~ 120sec

250

200

150

100

Ⅳ﹒GENERAL

SPECIFICATION：

a﹒Temp. rise

：40℃

typ.

b﹒Storage temp.：-40℃ ----+125℃

c﹒Operating temp.：-40℃----+105℃

d﹒Resistance to solder heat：260℃.10 secs.

100

150

Time ( seconds )

200

250

AR-001A

SH30091R3YLA Related Products

	SH30091R3YLA	SH30093R3YLB	SH30093R3YLA	SH3009150YLA	SH3009150YLB
Description	General Purpose Inductor, 1.3uH, 30%, Ferrite-Core, 1515,	General Purpose Inductor, 3.3uH, 30%, Ferrite-Core, 1515,	General Purpose Inductor, 3.3uH, 30%, Ferrite-Core, 1515,	General Purpose Inductor, 15uH, 30%, Ferrite-Core, 1515,	General Purpose Inductor, 15uH, 30%, Ferrite-Core, 1515,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	ABC [ABC Taiwan Electronics Corp]	ABC [ABC Taiwan Electronics Corp]	ABC [ABC Taiwan Electronics Corp]	ABC [ABC Taiwan Electronics Corp]	ABC [ABC Taiwan Electronics Corp]
package instruction	1515	1515	1515	1515	1515
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Base Number Matches	1	1	1	-	-
