499141-5: DescriptionCONNECTOR, 24 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size30KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

499141-5 Overview

CONNECTOR, 24 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

499141-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	AMP-LATCH, POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	499141
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Qualification Test

Report

501-325

01Mar10 Rev A

All Paragraphs Revised

AMP-LATCH* and IDC Header Connectors, .100 X .100 Inch

Grid

1.1.

INTRODUCTION

Purpose

Testing was performed on AMP-LATCH* and IDC Header Connectors to determine their conformance

to the requirements of Product Specification 108-40018, Revision E.

1.2.

Scope

This report covers the electrical, mechanical, and environmental performance of AMP-LATCH* and IDC

Header Connectors. Testing was performed at the Harrisburg Electrical Components Test Laboratory

between 14Sep95 and 03Nov95, additional testing was performed on low profile headers between

28Jan10 and 23Feb10. The test file numbers for this testing are CTL5227-074-019 and EA20100084T

respectively. This documentation is on file at and available from the Harrisburg Electrical Components

Test Laboratory.

1.3.

Conclusion

Specimens listed in paragraph 1.4. conformed to the electrical, mechanical, and environmental

performance requirements of Product Specification 108-40018, Revision E.

1.4.

Test Specimens

Test specimens were representative of normal production lots. A Certificate of Conformance (C of C)

was issued stating that all specimens in the test package were produced, inspected, and accepted as

conforming to product drawing requirements, and were manufactured using the same core

manufacturing processes and technologies as production parts. Specimens identified with the following

part numbers were used for test:

Test Group Quantity Part Number

1,3

2,3

1,3

5 each

Description

1-103308-0 Low profile header assembly

1-102153-0 Universal header assembly

1-103310-0 Low profile header assembly

1-102159-0 Universal header assembly

104338-9

Low profile, high temperature header assembly

1-111008-0 Universal header for vapor-phase applications

5103308-1 Low profile, vertical header assembly

Figure 1

1.5.

Environmental Conditions

Unless otherwise stated, the following environmental conditions prevailed during testing:

Temperature: 15 to 35°C

Relative Humidity: 25 to 75%

Harrisburg, PA

All International Rights Reserved

* Trademark

| Indicates change

1 of 4

LOC B

501-325

2.7.

Thermal Shock

No evidence of physical damage was visible as a result of thermal shock testing.

2.8.

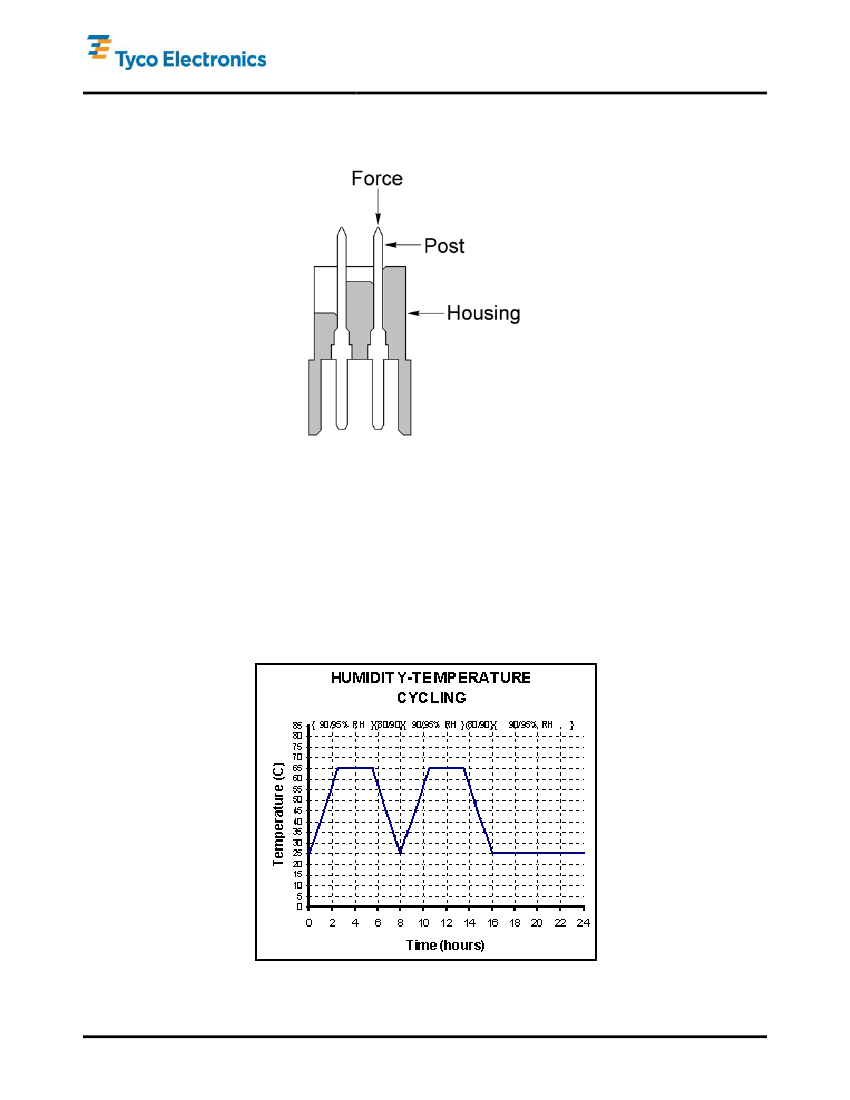

Humidity/temperature Cycling

No evidence of physical damage was visible as a result of humidity/temperature cycling.

3.1.

TEST METHODS

Examination of Product

Specimens were visually examined for evidence of physical damage detrimental to product

performance.

3.2.

Insulation Resistance

Insulation resistance was measured between adjacent contacts of unmated specimens. A test voltage

of 500 volts DC was applied for 2 minutes before the resistance was measured.

3.3.

Withstanding Voltage

A test potential of 1000 volts AC was applied between adjacent contacts of unmated specimens. This

potential was applied for 1 minute and then returned to zero.

3.4.

Solderability

Contact solder tails were immersed in a non-activated rosin flux for 5 to 10 seconds, allowed to drain for

10 to 60 seconds and then held over molten Sn60/Pb40 solder maintained at 245°C without contact for

2 seconds. The contact solder tails were then immersed in the molten solder at a maximum rate of 1

inch per second, held in the molten solder for 3 to 5 seconds and then withdrawn at a maximum rate of

1 inch per second. Specimens were cleaned using isopropyl alcohol and then visually examined for

solder coverage.

3.5.

Component Resistance to Wave Soldering

Specimens were placed on .061 inch thick printed circuit board and the solderable areas of the

specimens immersed in non-activated rosin flux type ROL0 maintained at room temperature for 5 to 10

seconds, removed from the flux, and allowed to drain for 5 to 20 seconds. The specimens were

attached to a dipping machine and immersed at a rate of approximately 1 inch per second into a

Sn60/Pb40 solder bath maintained at 240 ± 5°C to a point where the component body was 1 to 2 mm

above the solder surface, held in the solder bath for 10 seconds, and then removed at a rate of

approximately 1 inch per second. Specimens were cleaned for 5 minutes using isopropyl alcohol and

then given a visual examination under 30X magnification.

Rev A

3 of 4
