BTS409L1E3062A datasheet, PDF - EEWORLD Datasheet

BTS409L1E3062A: DescriptionBuffer/Inverter Based Peripheral Driver, 9.5A, MOS, PSSO4, TO-220AB, 5 PIN; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size306KB，12 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

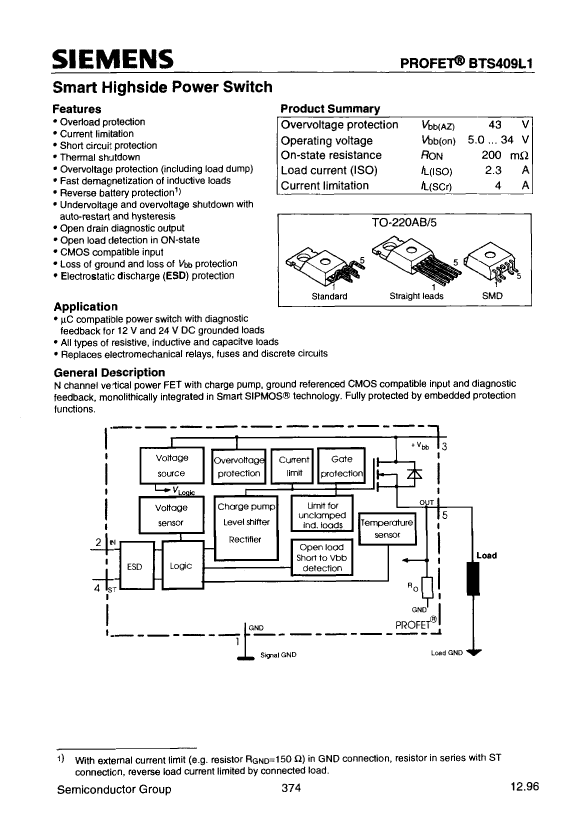

BTS409L1E3062A Overview

Buffer/Inverter Based Peripheral Driver, 9.5A, MOS, PSSO4, TO-220AB, 5 PIN

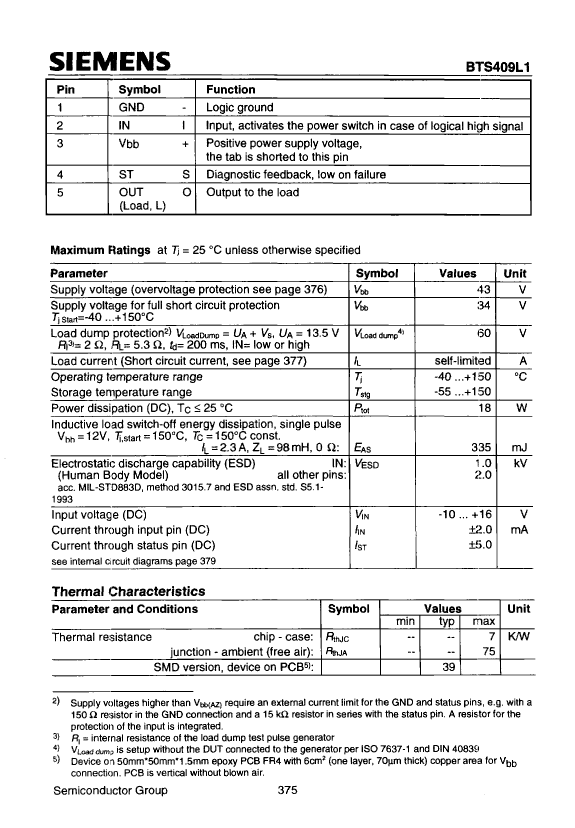

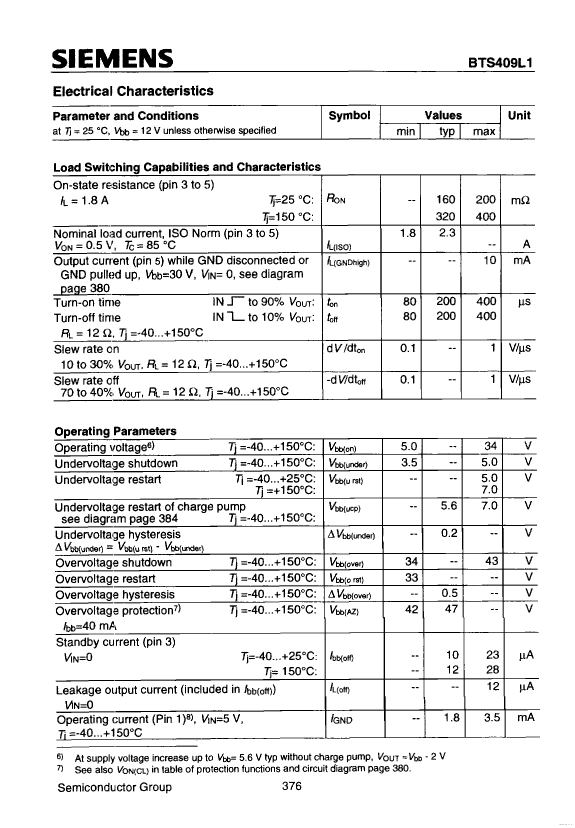

Parameter Name	Attribute value
Parts packaging code	TO-220AB
package instruction	,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99

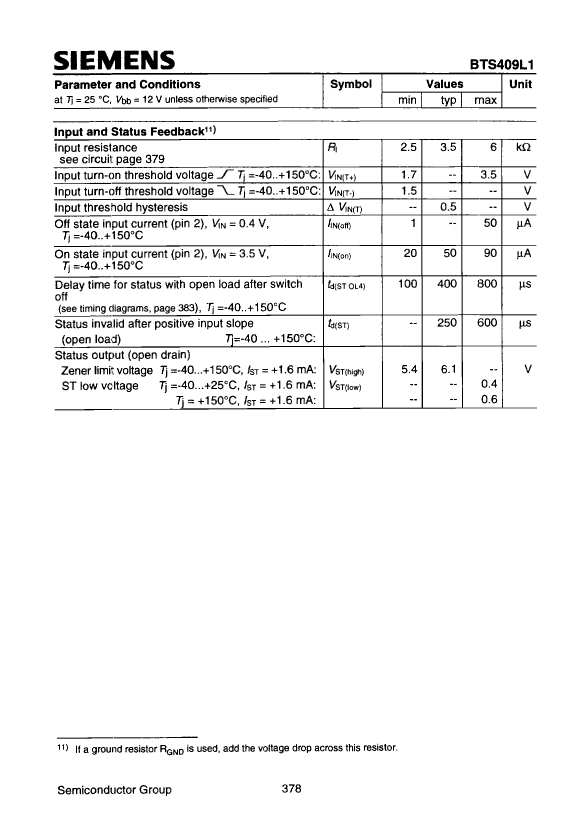

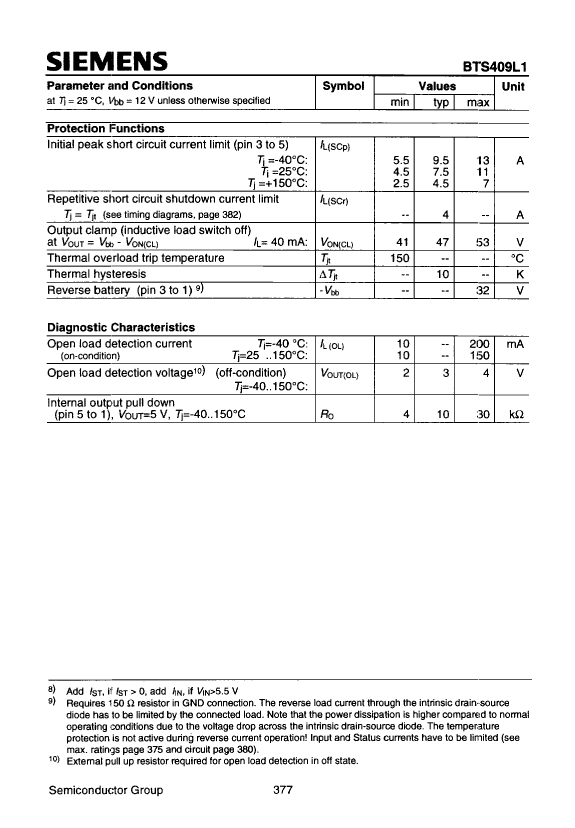

Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSSO-G4
Number of functions	1
Number of terminals	4
Output characteristics	OPEN-SOURCE
Output current flow direction	SOURCE
Nominal output peak current	9.5 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum slew rate	3.5 mA
Maximum supply voltage	34 V
Minimum supply voltage	5 V
Nominal supply voltage	12 V
surface mount	YES
technology	MOS
Terminal form	GULL WING
Terminal location	SINGLE
Disconnect time	400 µs
connection time	400 µs
Base Number Matches	1

	BTS409L1E3062A	BTS409L1E3043
Description	Buffer/Inverter Based Peripheral Driver, 9.5A, MOS, PSSO4, TO-220AB, 5 PIN	Buffer/Inverter Based Peripheral Driver, 9.5A, MOS, PSFM5, STRAIGHT, TO-220AB, 5 PIN
Parts packaging code	TO-220AB	TO-220AB
Contacts	3	3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSSO-G4	R-PSFM-T5
Number of functions	1	1
Number of terminals	4	5
Output characteristics	OPEN-SOURCE	OPEN-SOURCE
Output current flow direction	SOURCE	SOURCE
Nominal output peak current	9.5 A	9.5 A
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum slew rate	3.5 mA	3.5 mA
Maximum supply voltage	34 V	34 V
Minimum supply voltage	5 V	5 V
Nominal supply voltage	12 V	12 V
surface mount	YES	NO
technology	MOS	MOS
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Disconnect time	400 µs	400 µs
connection time	400 µs	400 µs
Base Number Matches	1	1
