518-13-325-18-105006 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 518-13-325-18-105006

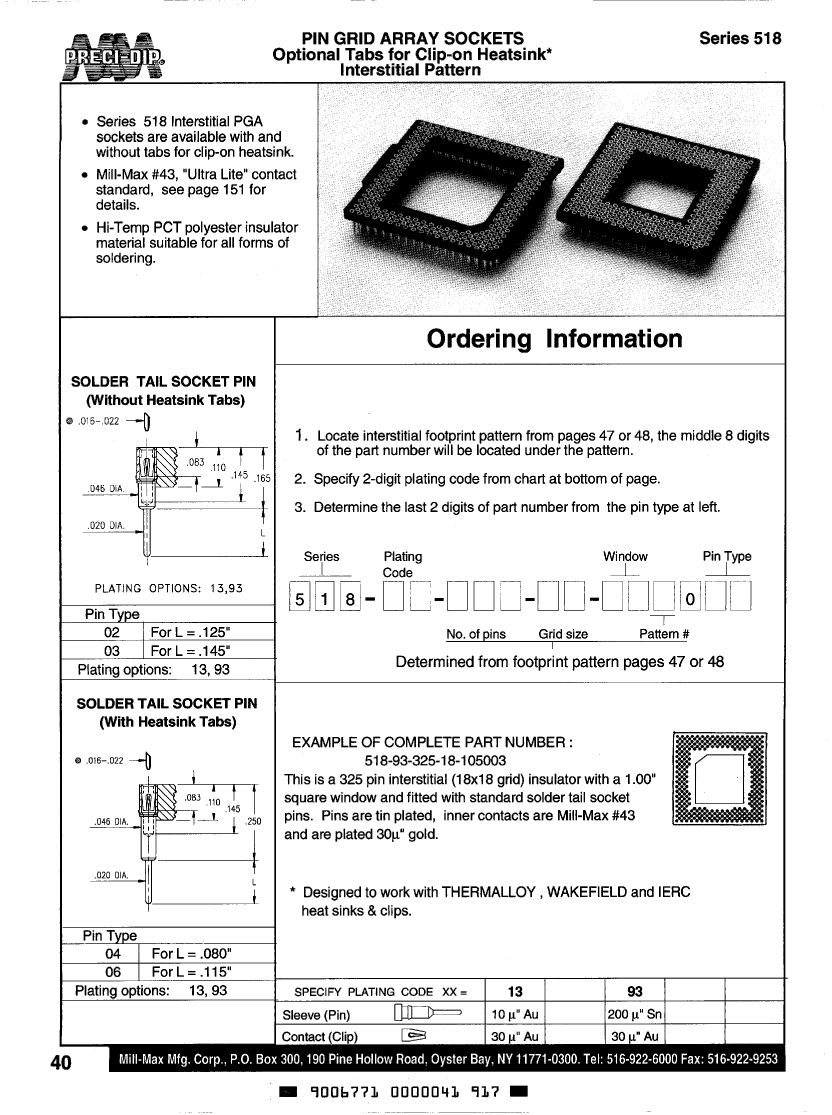

Preview

518-13-325-18-105006: DescriptionIC Socket, PGA325, 325 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder; CategoryThe connector socket; File Size653KB，5 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

518-13-325-18-105006 Overview

IC Socket, PGA325, 325 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder

518-13-325-18-105006 Parametric

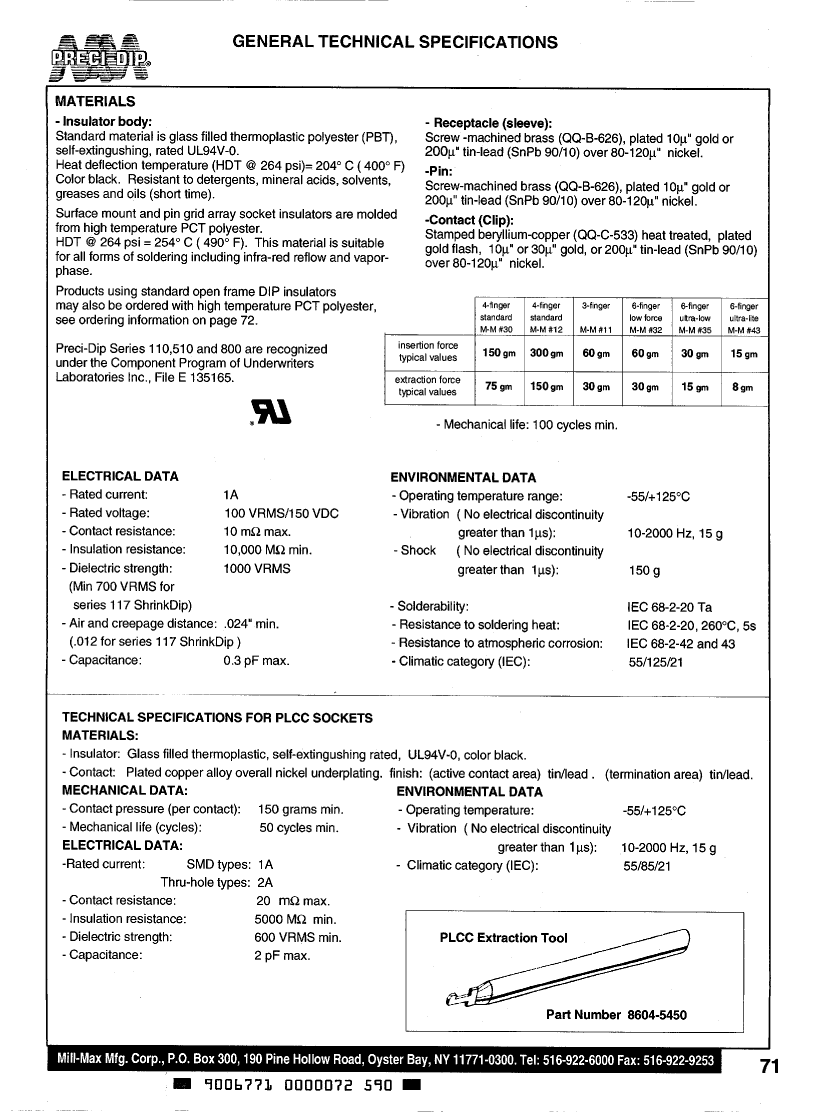

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
Other features	WITH HEATSINK TABS
body width	1.8 inch
subject depth	0.25 inch
body length	1.8 inch

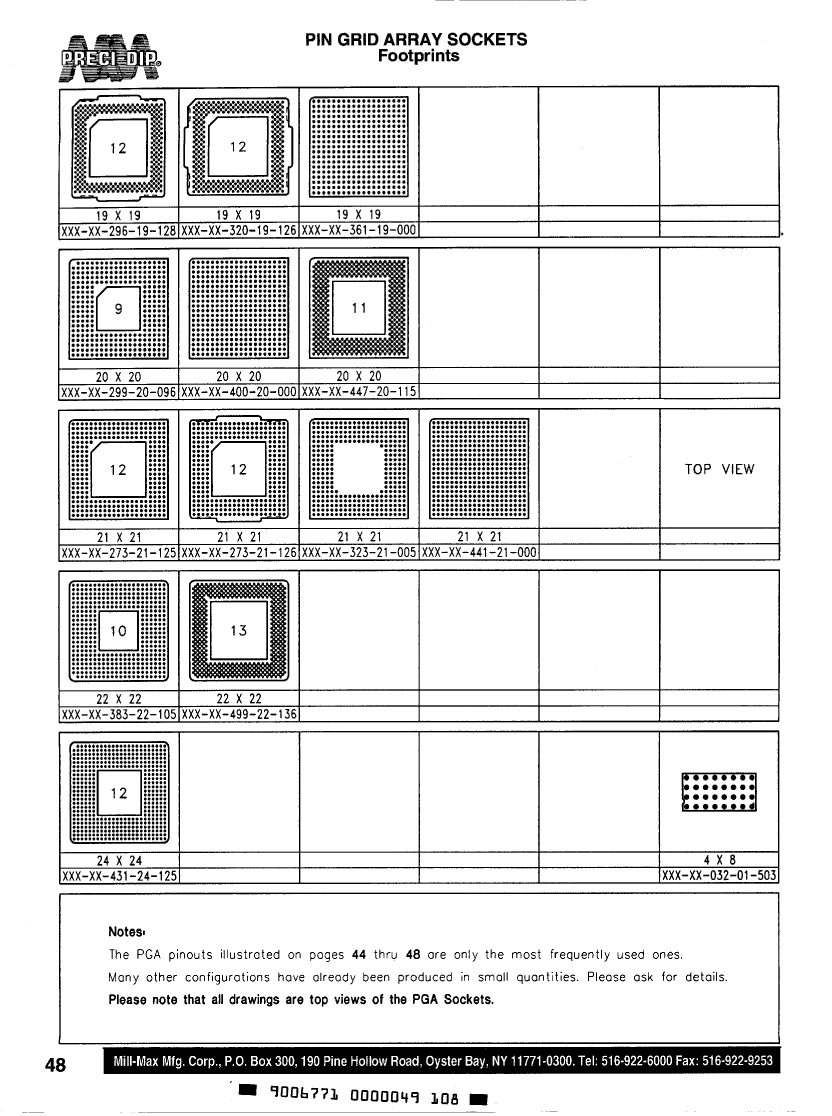

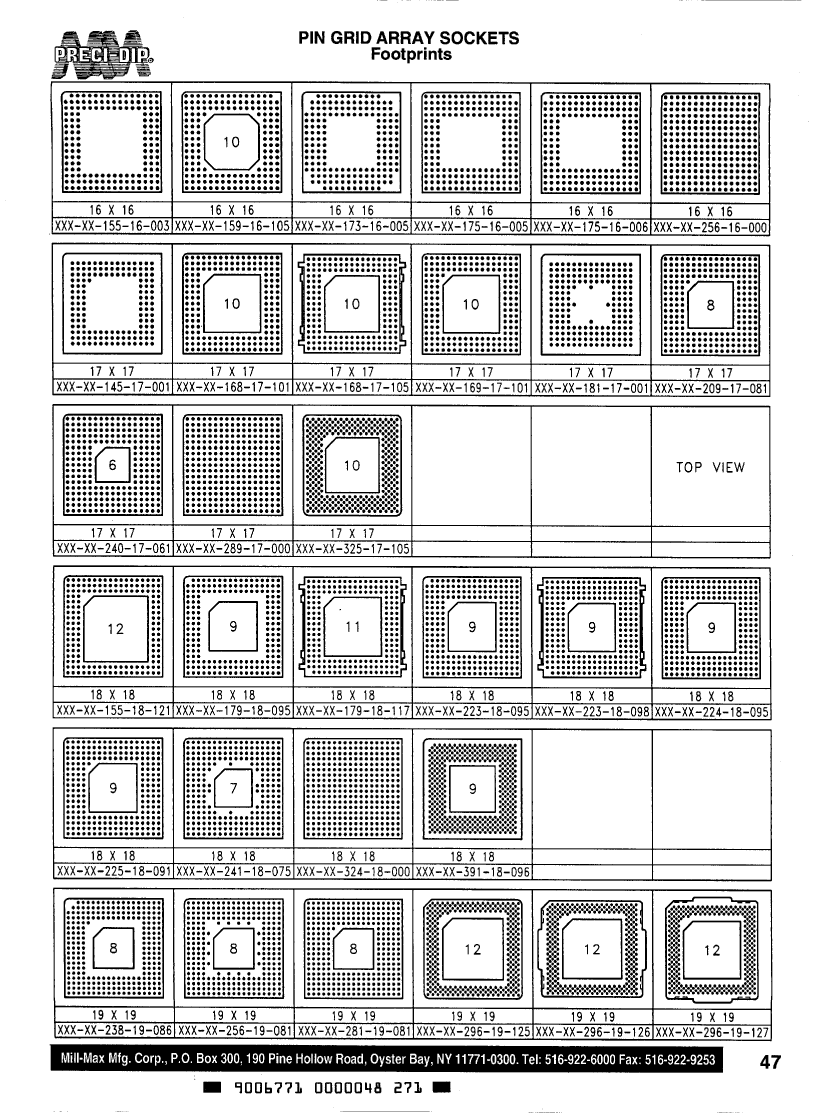

Contact structure	18X18

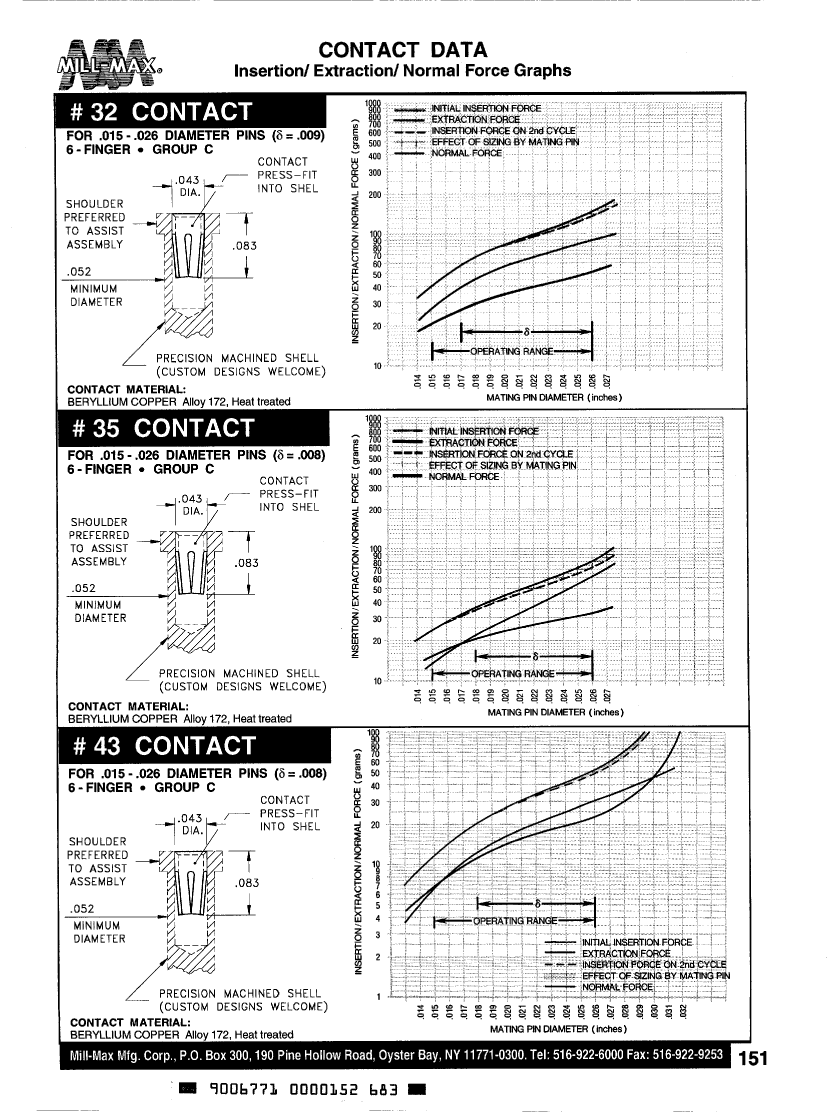

Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PGA325
Dielectric withstand voltage	1000VAC V
Shell material	POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e4
Manufacturer's serial number	518
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	325
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	INTER
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

518-13-325-18-105006 Related Products

	518-13-325-18-105006	518-93-325-18-105006	518-93-325-18-105002	518-13-325-18-105002	518-93-325-18-105004	518-13-325-18-105003	518-13-325-18-105004
Description	IC Socket, PGA325, 325 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA325, 325 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA325, 325 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA325, 325 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA325, 325 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA325, 325 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA325, 325 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder
Is it Rohs certified?	conform to	incompatible	incompatible	conform to	incompatible	conform to	conform to
Maker	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max
Reach Compliance Code	compliant	unknown	unknown	compliant	unknown	compliant	compliant
body width	1.8 inch	1.8 inch	1.8 inch	1.8 inch	1.8 inch	1.8 inch	1.8 inch
subject depth	0.25 inch	0.25 inch	0.165 inch	0.165 inch	0.25 inch	0.165 inch	0.25 inch
body length	1.8 inch	1.8 inch	1.8 inch	1.8 inch	1.8 inch	1.8 inch	1.8 inch
Contact structure	18X18	18X18	18X18	18X18	18X18	18X18	18X18
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact material	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PGA325	PGA325	PGA325	PGA325	PGA325	PGA325	PGA325
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Shell material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
JESD-609 code	e4	e0	e0	e4	e0	e4	e4
Manufacturer's serial number	518	518	518	518	518	518	518
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	325	325	325	325	325	325	325
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	INTER	INTER	INTER	INTER	INTER	INTER	INTER
PCB contact row spacing	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	1
Other features	WITH HEATSINK TABS	WITH HEATSINK TABS	-	-	WITH HEATSINK TABS	-	WITH HEATSINK TABS
