5059-0-15-80-34-01-04-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 5059-0-15-80-34-01-04-0

Preview

5059-0-15-80-34-01-04-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size298KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

5059-0-15-80-34-01-04-0 Overview

PCB Terminal

5059-0-15-80-34-01-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	5059-0
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

PR

E

CI

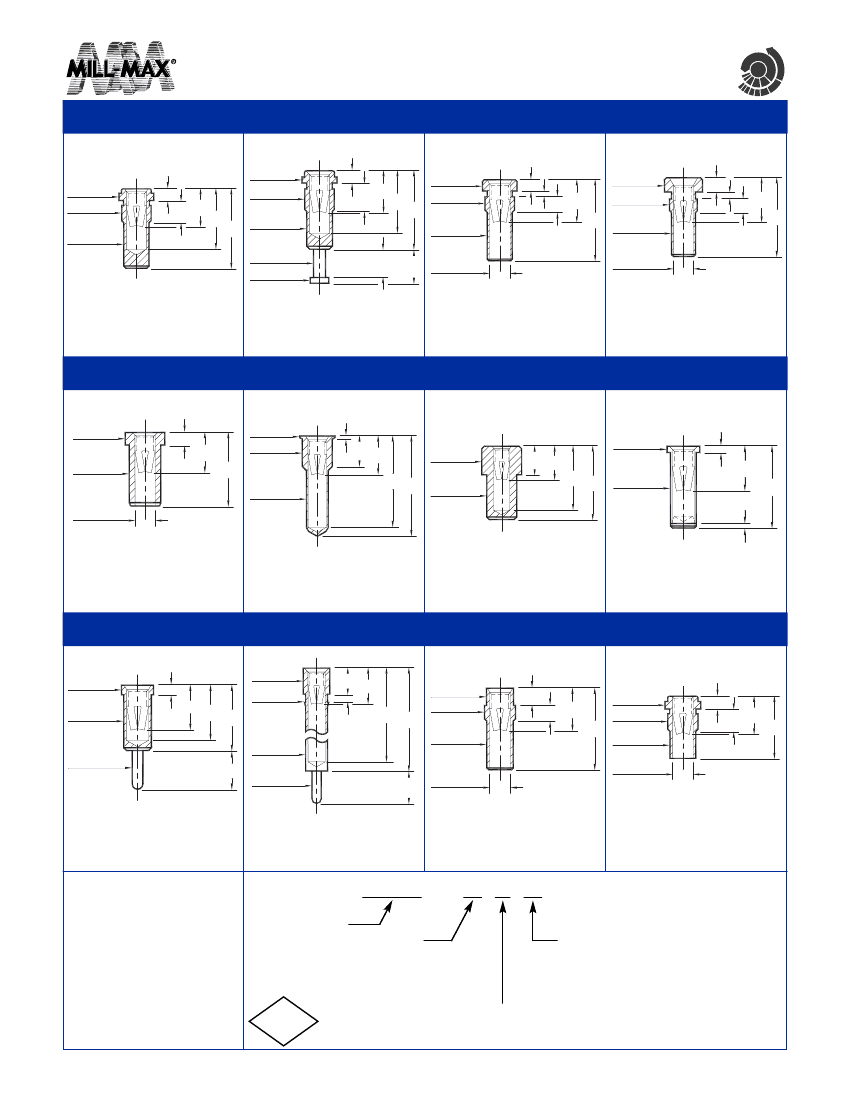

PIN RECEPTACLES

for 0,81 - 1,17 diameter pins

M

ON

S

I

CHI

A

PINS

NE

D

0359

2,79 DIA.

2,36 DIA.

KNURL

2,03 DIA.

0,94

1,78

3,07

4,83

6,35

0358

2,79 DIA.

2,36 DIA.

KNURL

2,08 DIA.

1,02

1,78

3,07

4,83

0360

2,79 DIA.

2,36 DIA.

6,1

KNURL

2,03 DIA.

0,38

0,94

1,27

3,3

6,35

0343

3,18 DIA.

2,36 DIA.

KNURL

2,03 DIA.

0,51

1,24

1,14

3,58

6,48

1,02 DIA.

1,52 DIA.

2,11

2,62

1,60 DIA.

HOLE

1,6 DIA.

HOLE

0359-0-15-XX-34-XX-10-0

Press-fit in 2,29 mounting hole

0358-0-15-XX-34-XX-10-0

Press-fit in 2,29 mounting hole

0360-0-15-XX-34-XX-10-0

Press-fit in 2,29 mounting hole

0343-0-15-XX-34-XX-10-0

Press-fit in 2,29 mounting hole

0356

3,2 DIA.

1,02

3,3

2,54 DIA.

5,92

6659

0,41

3,0 DIA.

2,54 DIA.

2,54

0347

0329

0,46

2,29 DIA.

3,25

7,52 8,26

3,99 DIA.

2,84 3,35

6,35

7,32

1,83 DIA.

3,12

5,61

(REF.)

0,38

1,88 DIA.

2,97 DIA.

1,6 DIA.

HOLE

0356-0-15-XX-34-XX-10-0

Solder mount in 2,59 min. mounting hole

Also available on 24mm wide carrier

tape: 1,100 parts per 330mm reel.

Order as: 0356-0-57-XX-34-XX-10-0

6659-0-15-XX-34-XX-10-0

Solder mount in 2,59 min.

mounting hole

0347-0-15-XX-34-XX-10-0

Solder mount in 3,05 min.

mounting hole

0329-0-15-XX-34-XX-10-0

Solder mount in 1,91 min. mounting

hole. “knock out” bottom.

0814

2,29 DIA.

0,79

3,25

3,81

5059

2,59 DIA.

2,36 DIA.

4,57

8360

2,54

3,35

12,57

9359

1,32

1,27 3,33

6,35

2,79 DIA.

2,36 DIA.

KNURL

2,03 DIA.

1,63 DIA.

0,94

1,78

3,0

4,06

2,08 DIA.

2,29 DIA.

13,46

2,03 DIA.

0,71

2,16 DIA.

KNURL

2,03 DIA.

0,76 DIA.

2,54

0,76 DIA.

3,18

1,63 DIA.

HOLE

0814-0-15-XX-34-XX-04-0

Solder mount in 2,08 min.

mounting hole

5059-0-15-XX-34-XX-04-0

Press-fit in 2,29 mounting hole

8360-0-15-XX-34-XX-10-0

Press-fit in 2,21 mounting hole

9359-0-15-XX-34-XX-10-0

Press-fit in 2,29 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±0,13

DIAMETERS: ±0,05

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - 34 - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

5,08μm TIN/LEAD OVER NICKEL



80

5,08μmTIN OVER NICKEL (RoHS)



15

0,25μm GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

01

5,08μm TIN/LEAD OVER NICKEL



80

5,08μm TIN OVER NICKEL (RoHS)



27

0,76μm GOLD OVER NICKEL (RoHS)

RoHS

CONTACT

#34

CONTACT (DATA ON PAGE 224)

w w w. m i l l - m a x . c o m

154



516-922-6000
