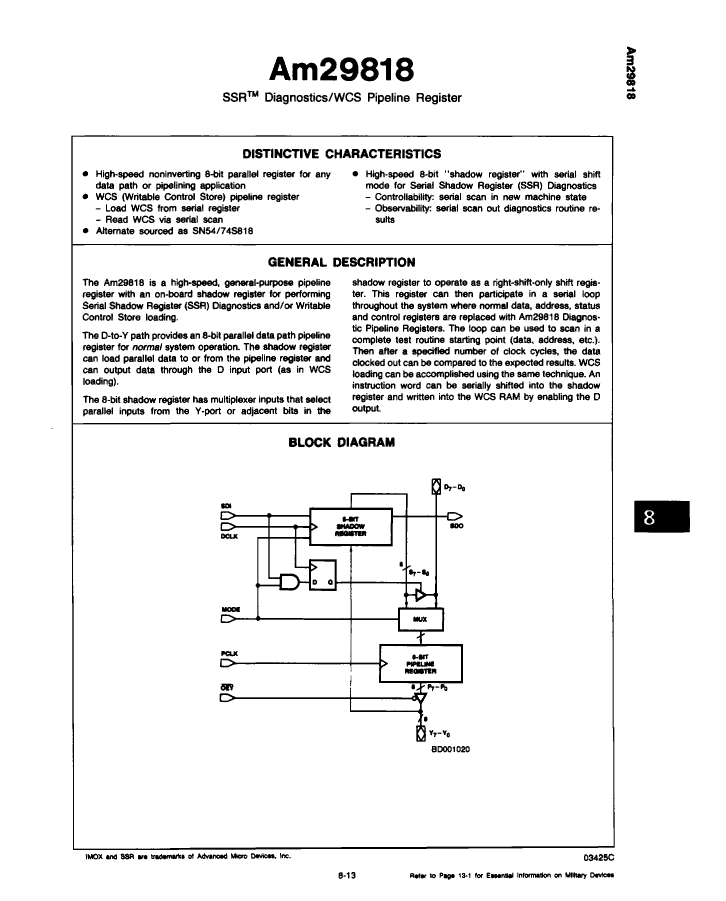

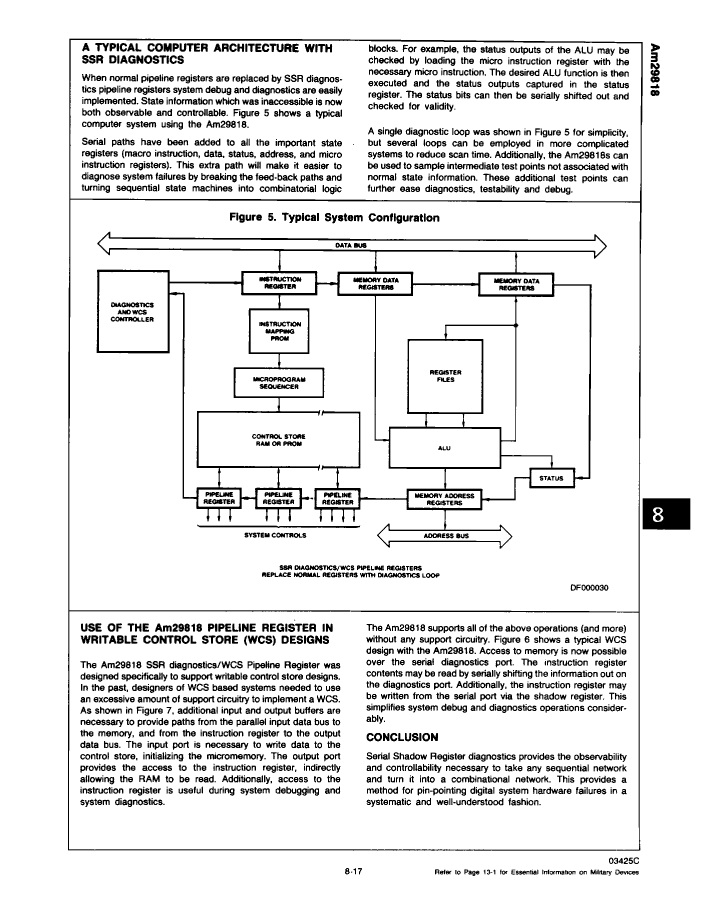

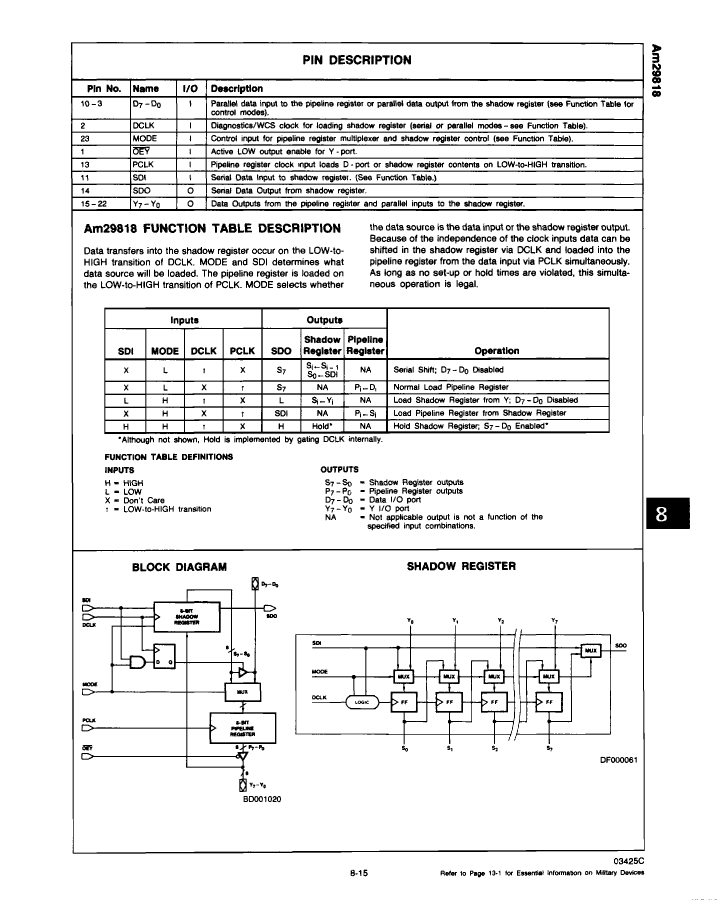

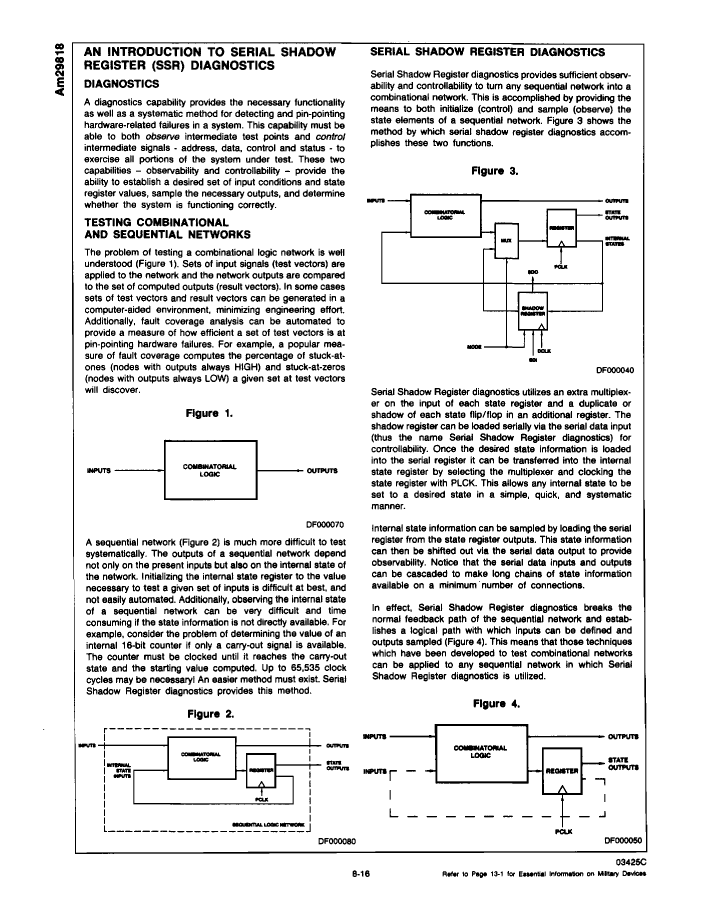

Bus Driver, S Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, HERMETIC SEALED, SLIM, DIP-24

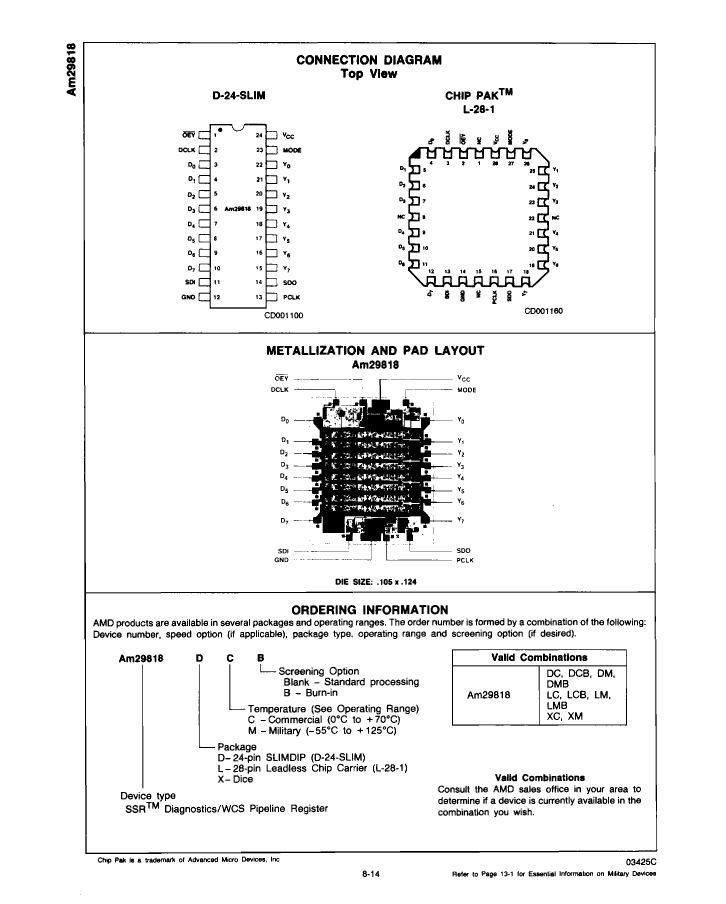

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | AMD |
| Parts packaging code | DIP |
| package instruction | HERMETIC SEALED, SLIM, DIP-24 |
| Contacts | 24 |
| Reach Compliance Code | unknown |
| Other features | DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S |
| series | S |
| JESD-30 code | R-CDIP-T24 |
| JESD-609 code | e0 |
| length | 32.0675 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 24 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Maximum supply current (ICC) | 155 mA |
| propagation delay (tpd) | 13 ns |
| Certification status | Not Qualified |
| Maximum seat height | 5.715 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| Base Number Matches | 1 |
| AM29818DC | AM29818LMB | AM29818LCB | AM29818LC | AM29818DMB | AM29818DCB | AM29818XM | AM29818LM | AM29818DM | AM29818XC | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Bus Driver, S Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, HERMETIC SEALED, SLIM, DIP-24 | Bus Driver, S Series, 1-Func, 8-Bit, True Output, TTL, CQCC28, LCC-28 | Bus Driver, S Series, 1-Func, 8-Bit, True Output, TTL, CQCC28, LCC-28 | Bus Driver, S Series, 1-Func, 8-Bit, True Output, TTL, CQCC28, LCC-28 | Bus Driver, S Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, HERMETIC SEALED, SLIM, DIP-24 | Bus Driver, S Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, HERMETIC SEALED, SLIM, DIP-24 | Bus Driver, S Series, 1-Func, 8-Bit, True Output, TTL, 0.105 X 0.124 INCH, DIE-24 | Bus Driver, S Series, 1-Func, 8-Bit, True Output, TTL, CQCC28, LCC-28 | Bus Driver, S Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, HERMETIC SEALED, SLIM, DIP-24 | Bus Driver, S Series, 1-Func, 8-Bit, True Output, TTL, 0.105 X 0.124 INCH, DIE-24 |
| Maker | AMD | AMD | AMD | AMD | AMD | AMD | AMD | AMD | AMD | AMD |
| Parts packaging code | DIP | QLCC | QLCC | QLCC | DIP | DIP | DIE | QLCC | DIP | DIE |
| package instruction | HERMETIC SEALED, SLIM, DIP-24 | QCCN, | QCCN, | QCCN, | HERMETIC SEALED, SLIM, DIP-24 | HERMETIC SEALED, SLIM, DIP-24 | DIE, | QCCN, | DIP, | DIE, |
| Contacts | 24 | 28 | 28 | 28 | 24 | 24 | 24 | 28 | 24 | 24 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S | DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S | DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S | DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S | DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S | DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S | DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S | DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S | DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S | DIAGNOSTIC SCAN REGISTER WITH SELECTABLE SERIAL & PARALLEL DATA I/P\'S |
| series | S | S | S | S | S | S | S | S | S | S |
| JESD-30 code | R-CDIP-T24 | S-CQCC-N28 | S-CQCC-N28 | S-CQCC-N28 | R-CDIP-T24 | R-CDIP-T24 | R-XUUC-N24 | S-CQCC-N28 | R-CDIP-T24 | R-XUUC-N24 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 24 | 28 | 28 | 28 | 24 | 24 | 24 | 28 | 24 | 24 |
| Maximum operating temperature | 70 °C | 125 °C | 70 °C | 70 °C | 125 °C | 70 °C | 125 °C | 125 °C | 125 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED |
| encapsulated code | DIP | QCCN | QCCN | QCCN | DIP | DIP | DIE | QCCN | DIP | DIE |
| Package shape | RECTANGULAR | SQUARE | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | IN-LINE | IN-LINE | UNCASED CHIP | CHIP CARRIER | IN-LINE | UNCASED CHIP |
| Maximum supply current (ICC) | 155 mA | 165 mA | 155 mA | 155 mA | 165 mA | 155 mA | 165 mA | 165 mA | 165 mA | 155 mA |
| propagation delay (tpd) | 13 ns | 18 ns | 13 ns | 13 ns | 18 ns | 13 ns | 18 ns | 18 ns | 18 ns | 13 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V | 5.5 V | 5.25 V | 5.25 V | 5.5 V | 5.25 V | 5.5 V | 5.5 V | 5.5 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.5 V | 4.75 V | 4.75 V | 4.5 V | 4.75 V | 4.5 V | 4.5 V | 4.5 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | YES | NO | NO | YES | YES | NO | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | MILITARY | COMMERCIAL | COMMERCIAL | MILITARY | COMMERCIAL | MILITARY | MILITARY | MILITARY | COMMERCIAL |
| Terminal form | THROUGH-HOLE | NO LEAD | NO LEAD | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | NO LEAD | THROUGH-HOLE | NO LEAD |
| Terminal location | DUAL | QUAD | QUAD | QUAD | DUAL | DUAL | UPPER | QUAD | DUAL | UPPER |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | - | Contains lead | Contains lead | - |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | - | incompatible | incompatible | - |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | - | e0 | e0 | - |
| length | 32.0675 mm | 8.89 mm | 8.89 mm | 8.89 mm | 32.0675 mm | 32.0675 mm | - | 8.89 mm | 32.0675 mm | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | - |
| Maximum seat height | 5.715 mm | 2.54 mm | 2.54 mm | 2.54 mm | 5.715 mm | 5.715 mm | - | 2.54 mm | 5.715 mm | - |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | - | 1.27 mm | 2.54 mm | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | - |
| width | 7.62 mm | 8.89 mm | 8.89 mm | 8.89 mm | 7.62 mm | 7.62 mm | - | 8.89 mm | 7.62 mm | - |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | - | - | - | - |
