4040-0-19-15-07-80-10-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> 4040-0-19-15-07-80-10-0

Preview

4040-0-19-15-07-80-10-0: DescriptionWire Terminal, ROHS COMPLIANT; CategoryThe connector Connector bracket; File Size105KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

4040-0-19-15-07-80-10-0 Overview

Wire Terminal, ROHS COMPLIANT

4040-0-19-15-07-80-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TIN OVER NICKEL
Assembly name	CONTACT
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	FEMALE
Contact style	ROUND SOCKET
DIN compliance	NO
Finished thickness	200
IEC compliance	NO
MIL compliance	NO
Material	BERYLLIUM COPPER ALLOY
Installation method	STRAIGHT
Terminal length	0.512 inch
Terminal type	CRIMP
Maximum wire diameter	16 AWG
Minimum wire diameter	20 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

PR

E

CI

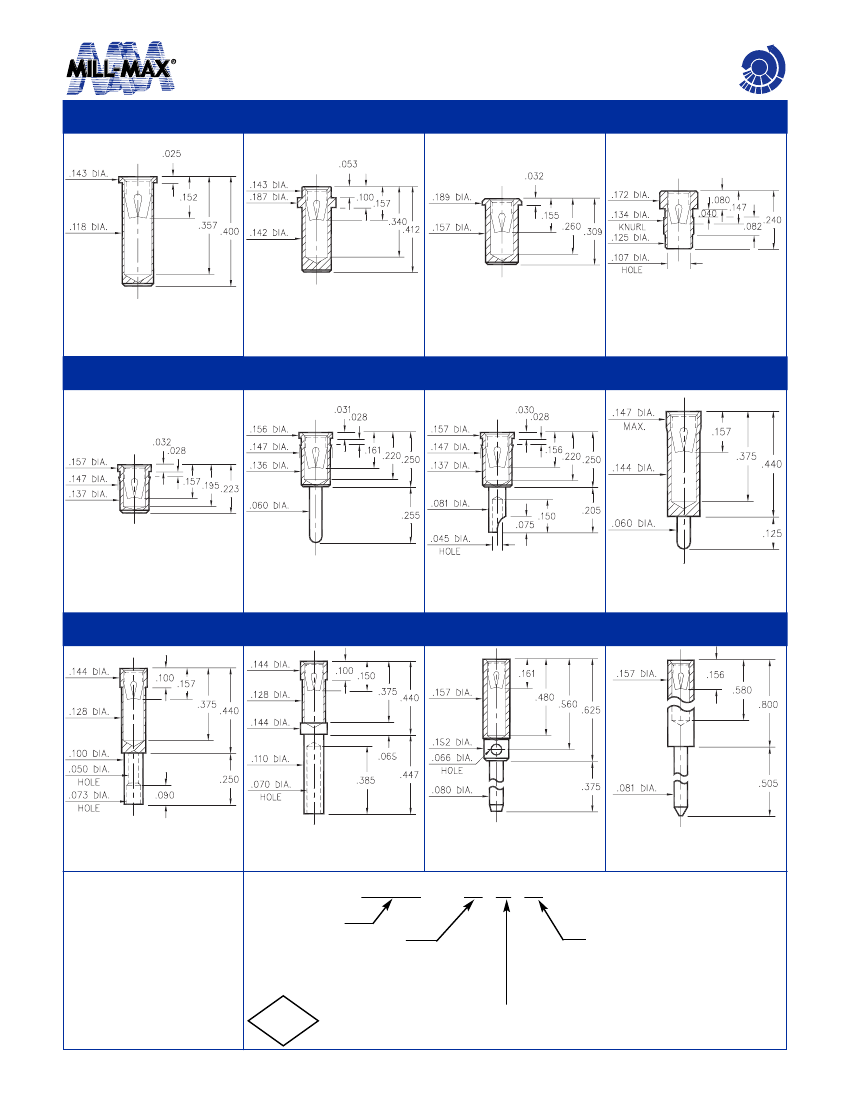

PIN RECEPTACLES

for .065” - .082” diameter pins

M

ON

S

I

CHI

A

PINS

NE

D

0394

0393

0391

9016

0394-0-15-XX-07-XX-10-0

Solder mount in .120 min.

mounting hole

0393-0-15-XX-07-XX-10-0

Solder mount in .144 min.

mounting hole

0391-0-15-XX-07-XX-10-0

Solder mount in .159 min.

mounting hole

9016-0-15-XX-07-XX-10-0

Press-fit in .131 mounting hole

0493

0490

0616

0387

0493-0-15-XX-07-XX-10-0

Press-fit in .144 mounting hole

0490-0-15-XX-07-XX-04-0

Press-fit in .144 mounting hole

0616-0-18-XX-07-XX-10-0

Press-fit in .144 mounting hole

0387-0-15-XX-07-XX-04-0

Solder mount in .063 min.

mounting hole

0370

4040

0491

9214

0370-0-19-XX-07-XX-10-0

#18 Gage crimp barrel

4040-0-19-XX-07-XX-10-0

Wire Termination

0491-0-19-XX-07-XX-04-0

For use in stackable

patch cords

9214-0-15-XX-07-XX-10-0

Solder mount in .083 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 1X - XX - 07 - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200μ” TIN/LEAD OVER NICKEL

80

200μ” TIN OVER NICKEL

15

10μ” GOLD OVER NICKEL

RoHS

SPECIFY CONTACT FINISH:

01

200μ” TIN/LEAD OVER NICKEL

80

200μ” TIN OVER NICKEL

27

30μ” GOLD OVER NICKEL

2002/95/EC

CONTACT

#07

CONTACT (DATA ON PAGE 225)

w w w. m i l l - m a x . c o m

161

516-922-6000
