54165DMQB datasheet, PDF - EEWORLD Datasheet

54165DMQB: DescriptionShift Register, 8-Bit, Right Direction, TTL, CDIP16,; Categorylogic logic; File Size253KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

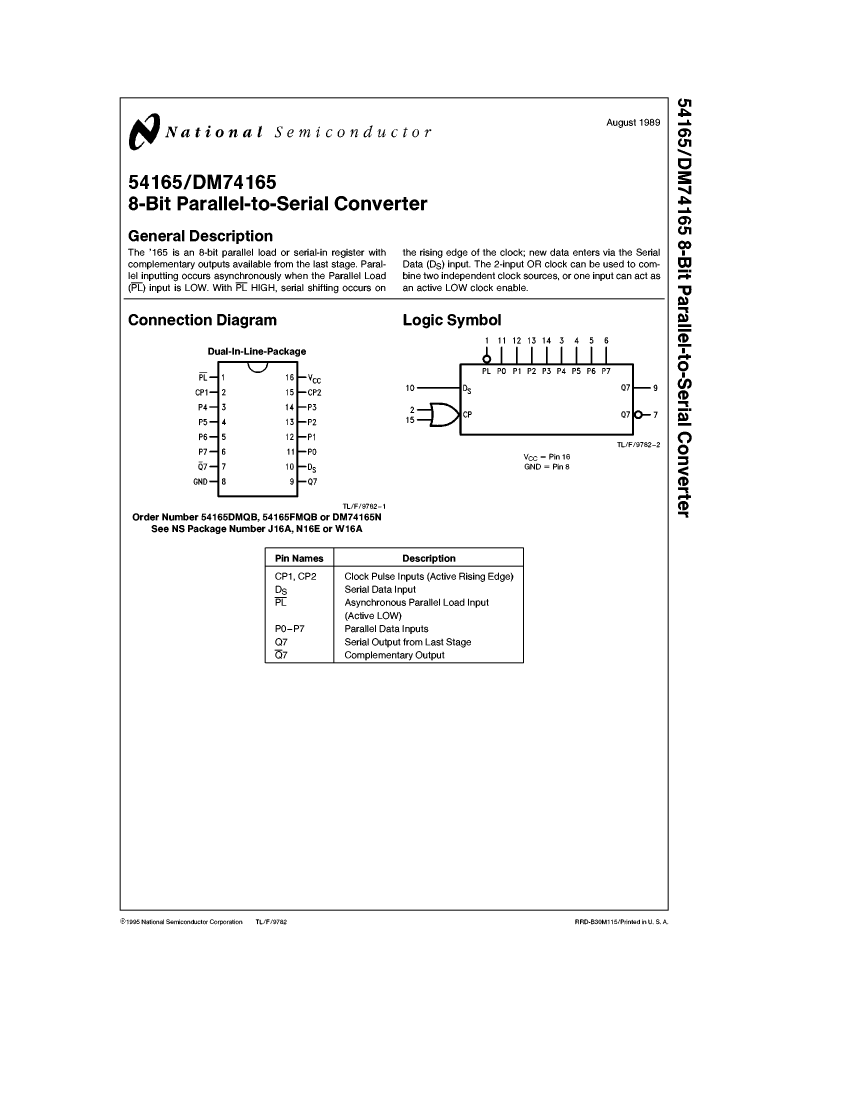

54165DMQB Overview

Shift Register, 8-Bit, Right Direction, TTL, CDIP16,

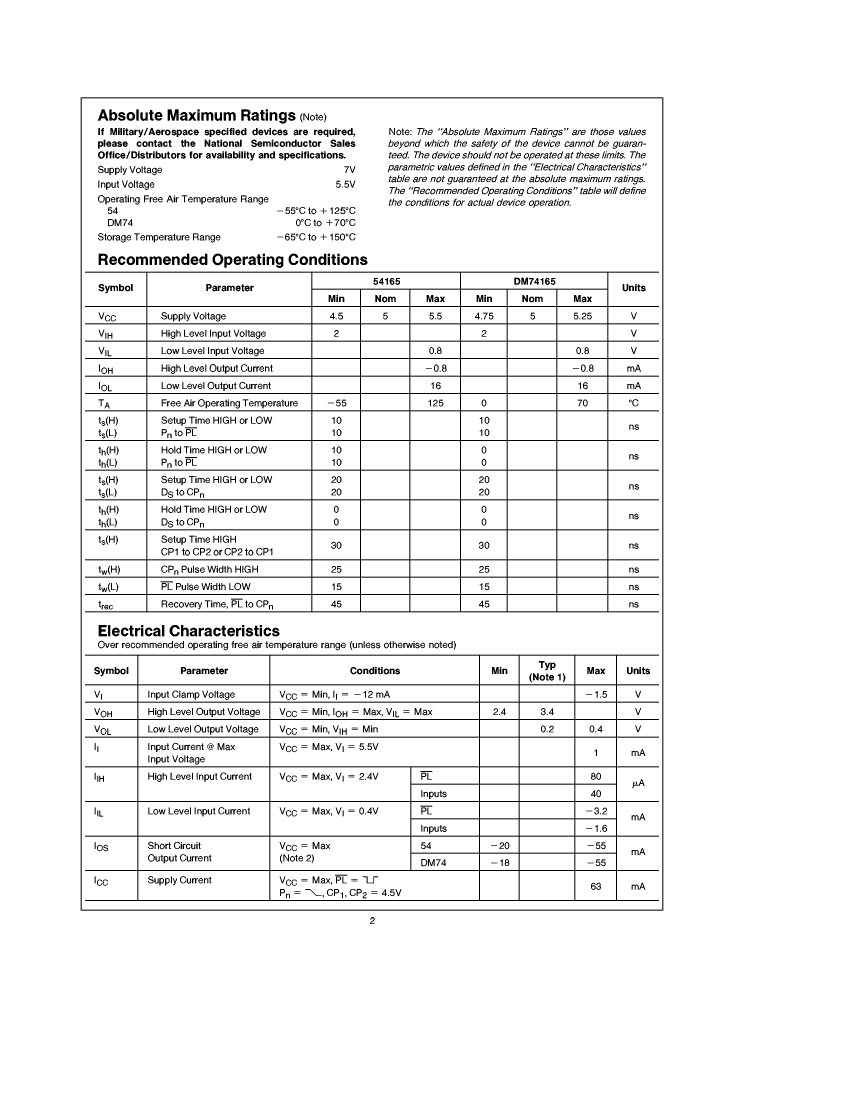

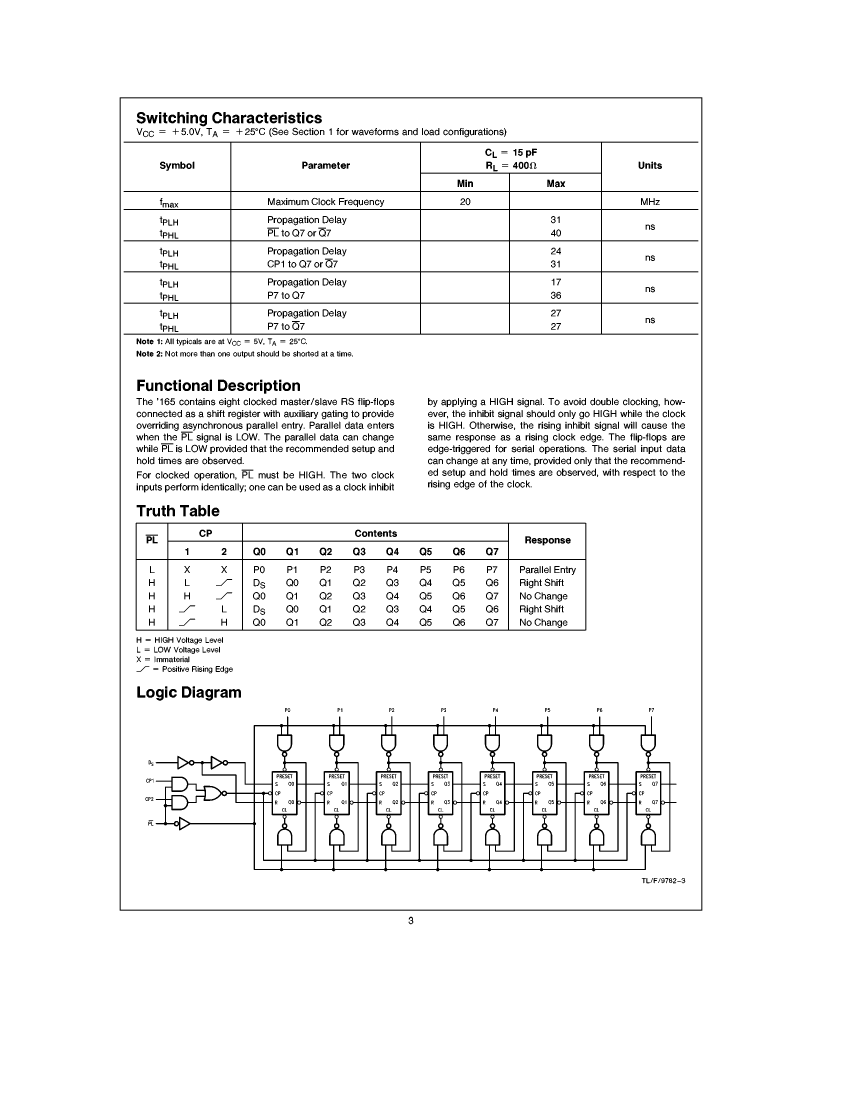

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Counting direction	RIGHT
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

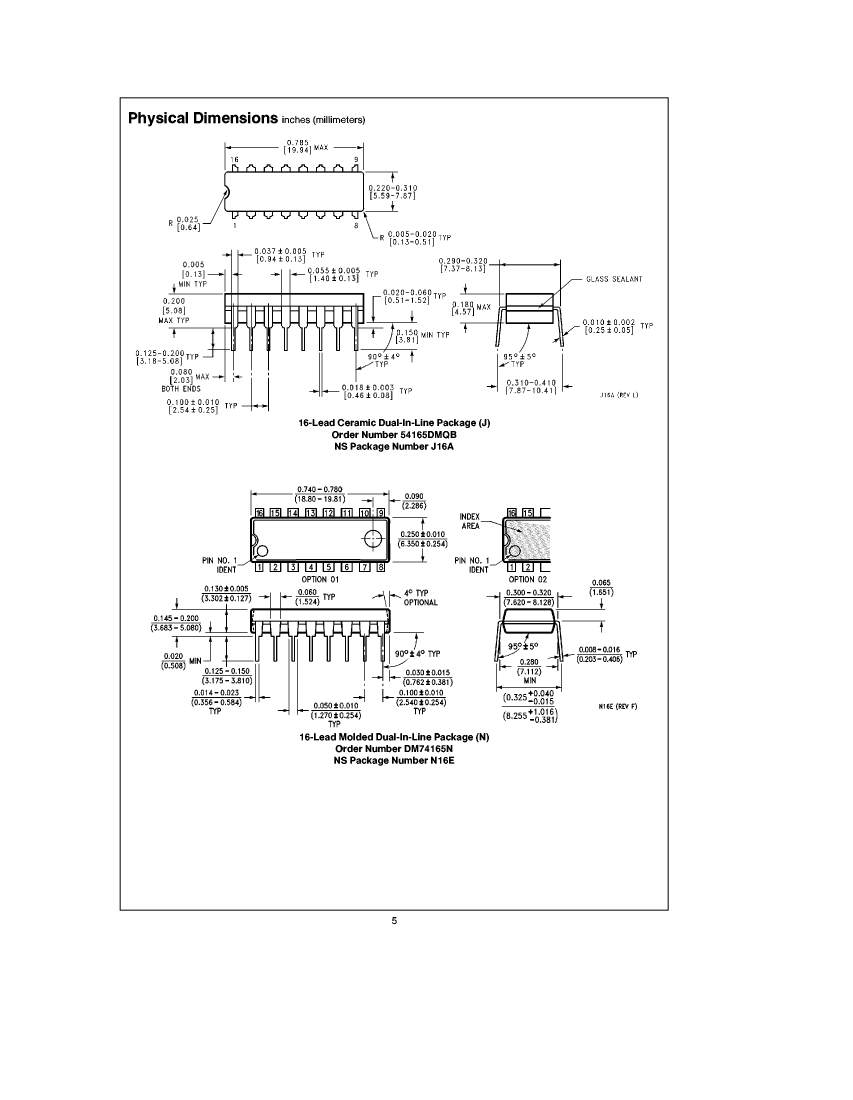

Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	54165DMQB	5962-00-333-8811	DM74165N
Description	Shift Register, 8-Bit, Right Direction, TTL, CDIP16,	Shift Register, 8-Bit, TTL, CDIP16,	Shift Register, 8-Bit, TTL, PDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	compli	unknown
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	125 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
JESD-609 code	e0	-	e0
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
