BK/GDA-2.5AS: DescriptionElectric Fuse, Fast Blow, 2.5A, 250VAC, 1500A (IR), Inline/holder; CategoryCircuit protection Circuit protection; File Size83KB，2 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

BK/GDA-2.5AS Overview

Electric Fuse, Fast Blow, 2.5A, 250VAC, 1500A (IR), Inline/holder

BK/GDA-2.5AS Parametric

Parameter Name	Attribute value
Maker	Cooper Industries
Reach Compliance Code	unknown
Fusing characteristics	FAST
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	3 J
Manufacturer's serial number	GDA
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	5.2mm x 20mm
Rated breaking capacity	1500 A
Rated current	2.5 A
Rated voltage (AC)	250 V
Guideline	IMQ; SEMKO; VDE; UL
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

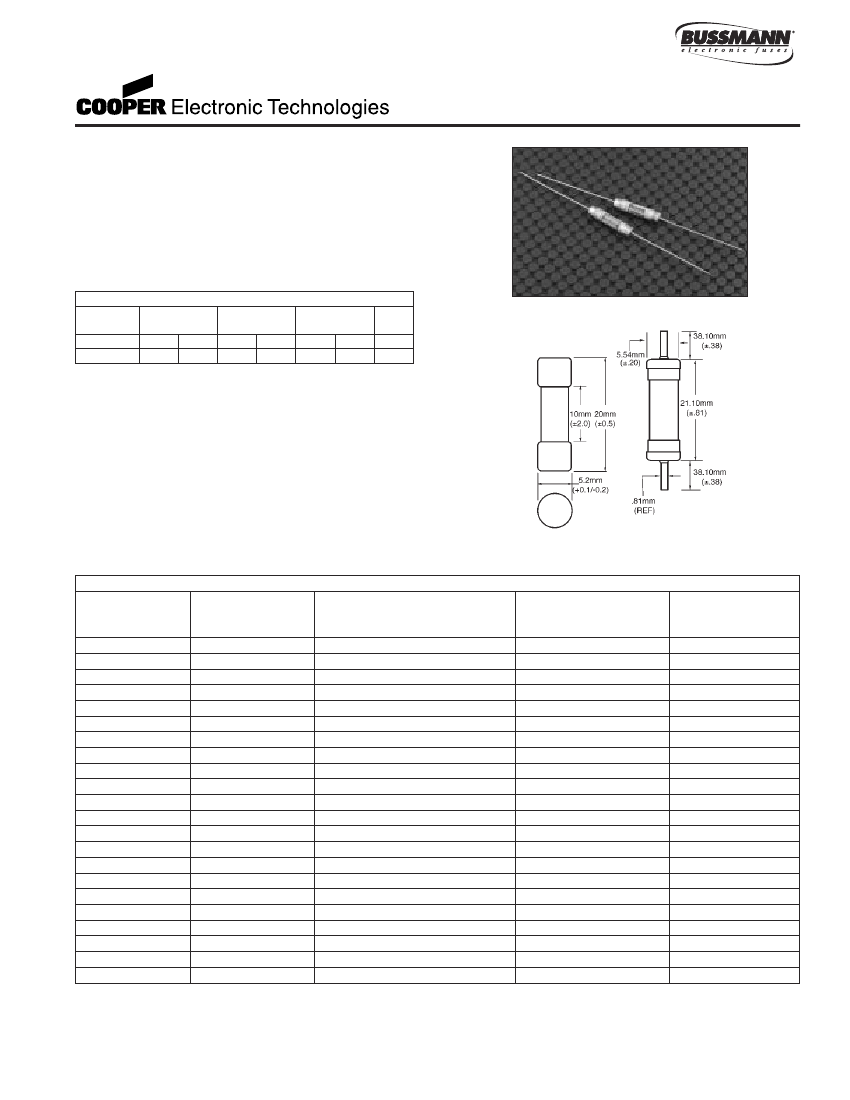

5mm x 20mm Fuses

GDA Series, Fast Acting, Ceramic Tube

Description

• Fast acting, high breaking capacity

• 5mm x 20mm physical size

• Ceramic tube, nickel brass endcap construction

• Optional axial leads are .032" x 1.5" copper tinned

• Optional sleeve is flexible flouropolymer

(U.L. flammability rating VW-1).

• Designed to IEC 60127-2-1

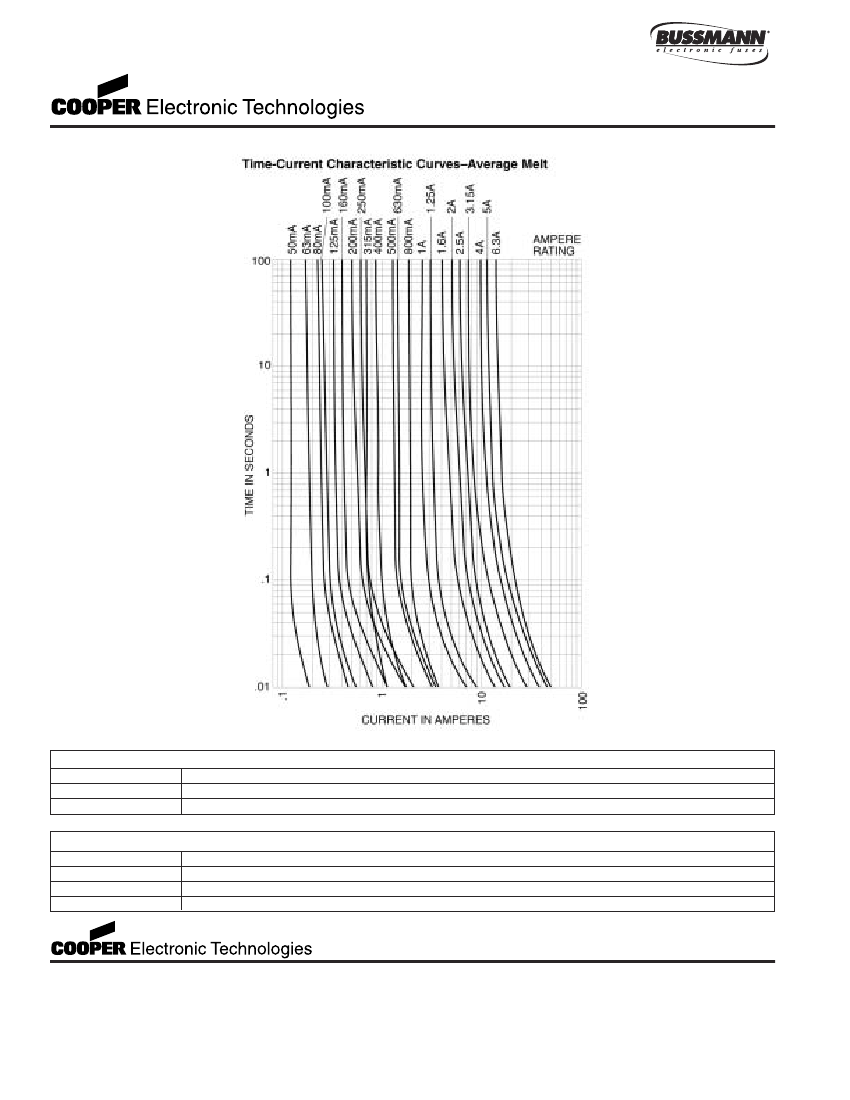

ELECTRICAL CHARACTERISTICS

1.5 In 2.1 In

2.75 In

4 In

10 In

In

min

max

min

max

min

max

50mA-3.15A 60 min 30 min 10 ms 2 sec 3 ms 300 ms 20 ms

4A-10A

60 min 30 min 10 ms 3 sec 3 ms 300 ms 20 ms

Dimensions

Drawing Not to Scale

1.1 In:

∆t

less than or equal to 70°C, 125mA-3A

1.0 In:

∆t

less than or equal to 70°C, 4A

Ordering

• Specify product code, option code and packaging code

Approvals

• UL Recognized, Guide JDYX2, File E75865,

50mA and 315mA-6.3A

• Semko Approval 50mA, 200mA and 315mA-6.3A

• VDE Approval 1.25A-6.3A

• IMQ Approval 500mA, and 2.0A-6.3A

SPECIFICATIONS

Product Code

GDA-50mA

GDA-63mA

GDA-80mA

GDA-100mA

GDA-125mA

GDA-160mA

GDA-200mA

GDA-250mA

GDA-315mA

GDA-400mA

GDA-500mA

GDA-630mA

GDA-800mA

GDA-1A

GDA-1.25A

GDA-1.6A

GDA-2A

GDA-2.5A

GDA-3.15A

GDA-4A

GDA-5A

GDA-6.3A

Voltage

Rating

AC

250V

Interrupting Rating

at Rated Voltage (50Hz)

AC/DC

1500A

Typical

Melting I

2

t (A

2

Sec)

AC

0.0017

0.0005

0.0011

0.0018

0.0037

0.008

0.020

0.027

0.010

0.018

0.038

0.064

0.097

0.480

0.9

1.9

2.0

3.9

8.1

14

25

48

Typical

Voltage

Drop (mV)‡

9000

3300

2600

2300

1900

1600

1350

1300

1400

1200

1050

1200

490

230

200

180

205

190

160

155

150

‡ Typical Voltage Drop (Voltage drop was measured at 20°C ambient temperature at rated current)
