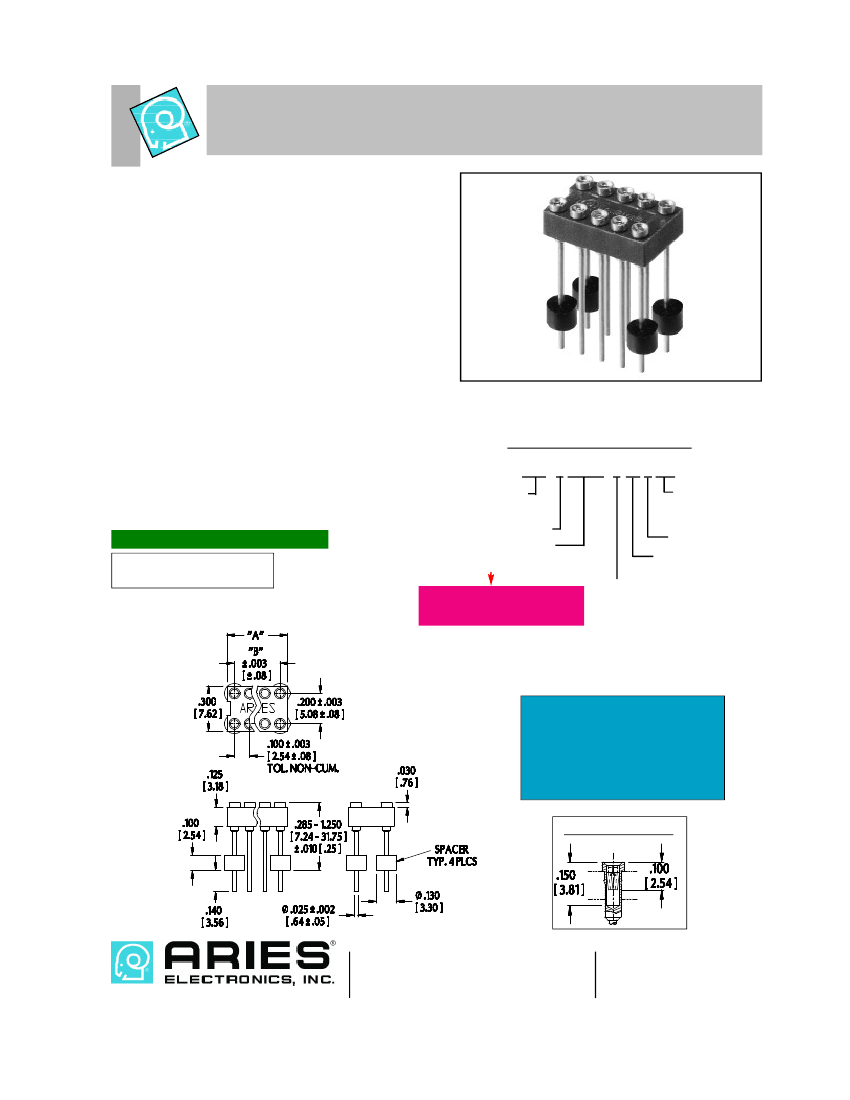

Series 8XXX Collet Elevator Sockets
on .200 [5.08] Centers
FEATURES:
• Ideal for elevating devices (displays, switches, etc.) to
desired level with .285 to 1.250 [7.24 to 31.75] height
extension.
SPECIFICATIONS:
• Standard socket body and spacer are black UL 94-HB
Glass-filled Nylon.
• High temp socket body and spacer are UL 94V-0 4/6 Nylon.
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
• Pin body plating is 200µ [1.27µm] min. 93/7 Tin/Lead per
MIL-P-81728 over 100µ [2.54µm] min. Nickel per
QQ-N-290. Gold plating also available (consult factory).
• 4-fingered collet contact is Beryllium Copper Alloy per UNS
C17200 ASTM-B194-92.
• Contact plating is 30µ [.7µum] min. Gold per MIL-G-45204
over 50µ [1.27µm] min. Nickel per QQ-N-290.
• Contact current rating=3 Amps.
• Operating temperature=221°F [105°C].
• Insertion Force=180 grams/pin; Withdrawal Force=90
grams/pin; Normal Force=140 grams/pin; based on a .018
[.46] diameter test lead.
• Accepts leads .015-.025 [.38-.64] in diameter, .110-.150
[2.79-3.81] long.
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.035 ± .002 [.89 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-8XXXX-210CXX
Optional suffix:
V0=UL 94V-0
plastic
Collet style
Tin plated
solder tail pin
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“A”=NO. OF PINS PER ROW X .100 [2.54]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
No. of pins
6, 8, 10
Series
Seating plane height
.285 [7.24] to 1.250 [31.75]
Row-to-row
ex: .285 height = “-8285-”
spacing
1.250 height = “-81250-”
Consult Data Sheet No. 13008 for
collet elevator sockets on .300
[7.62] and .600 [15.24] centers.
Consult Data Sheet No. 13006 for
elevator sockets with bifurcated
contacts.
CONTACT DETAIL
13007
REV.D
