Part Number:
Status:
Description:
501616-2775
Active
0.30mm Pitch Easy-On™ Type FPC Connector, 1.10mm Mated Height, Right Angle,
SMT, ZIF, Top Contact Style, 27 Circuits, Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-501616-002 (PDF)
Packaging Specification SPK-501616-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Product Name
UPC
FFC/FPC Connectors
501616
Easy-On™
822350835961

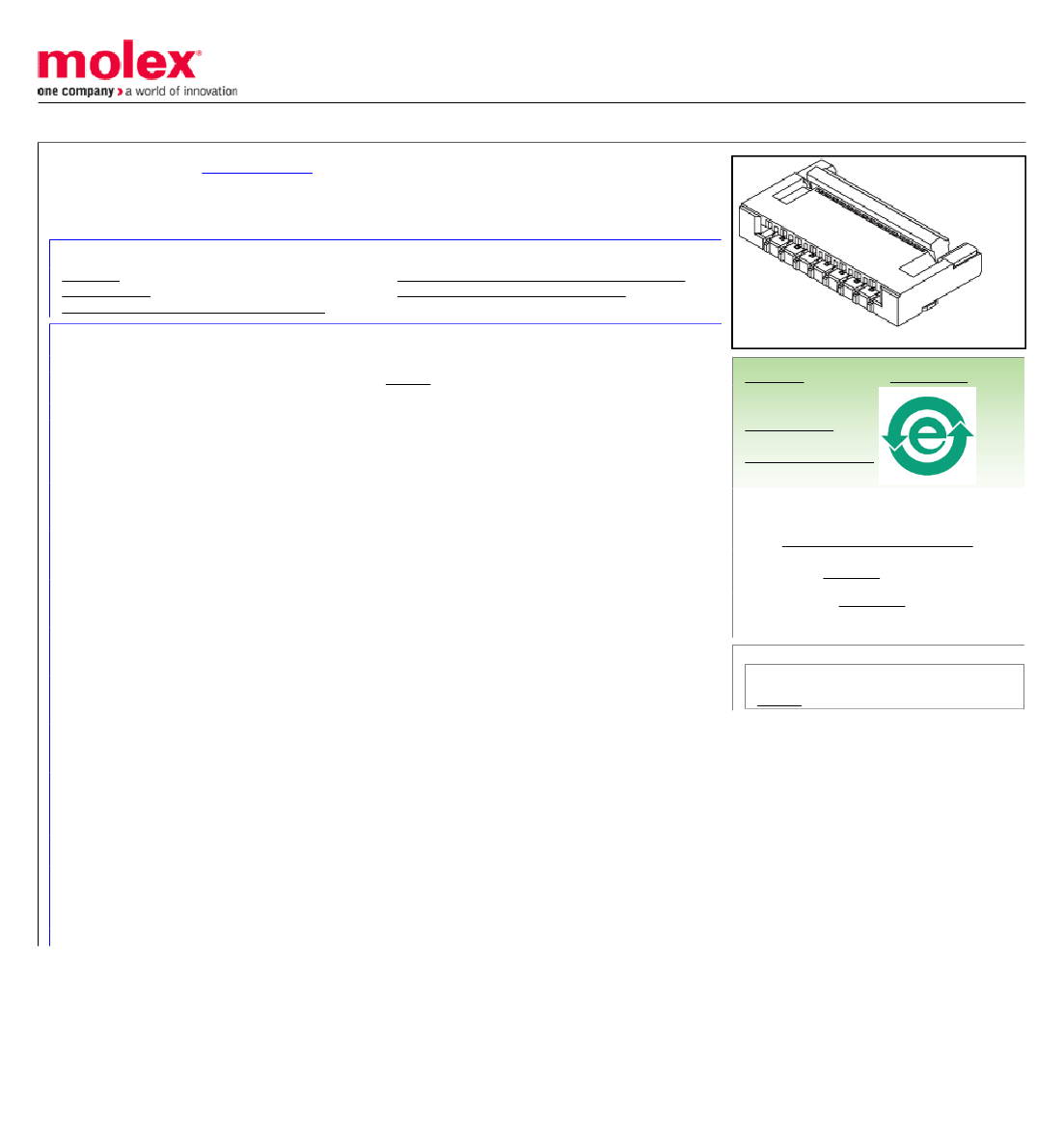

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Low-Halogen
China RoHS
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Mated Height
Material - Metal
Material - Plating Mating
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
27
Black, Gray
Top
10
90° Angle
1.10mm
Copper Alloy
Gold
67.240/mg
1
Right Angle
No
Yes
Embossed Tape on Reel
0.30mm
Yes
No
-40°C to +85°C
Surface Mount
FPC only
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
501616Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.2A
50V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
SPK-501616-001
PS-501616-002, RPS-501616-005, RPS-501616-009
SD-501616-005, SD-501616-006
