5962-01-181-4856 datasheet, PDF

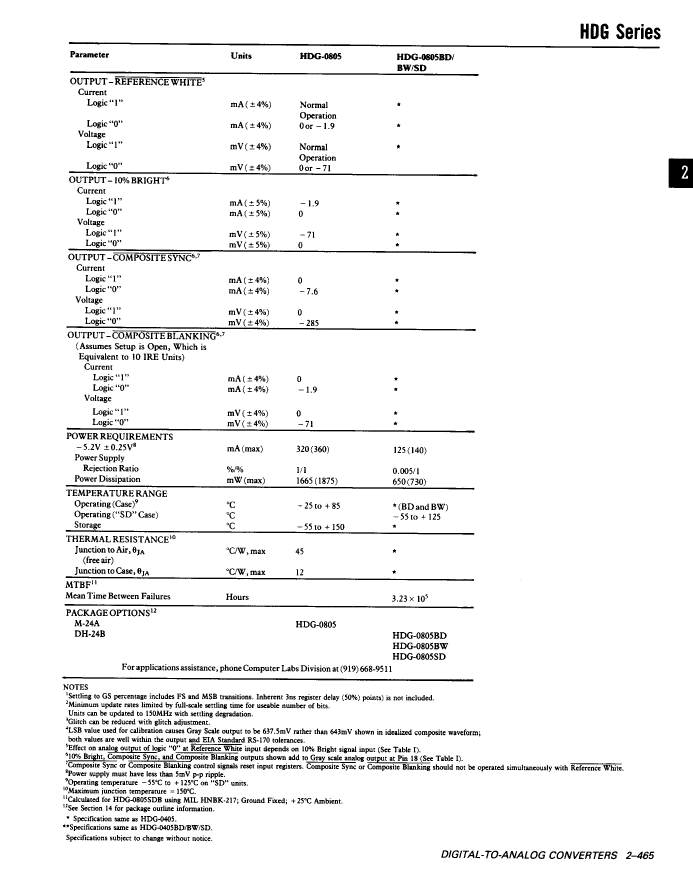

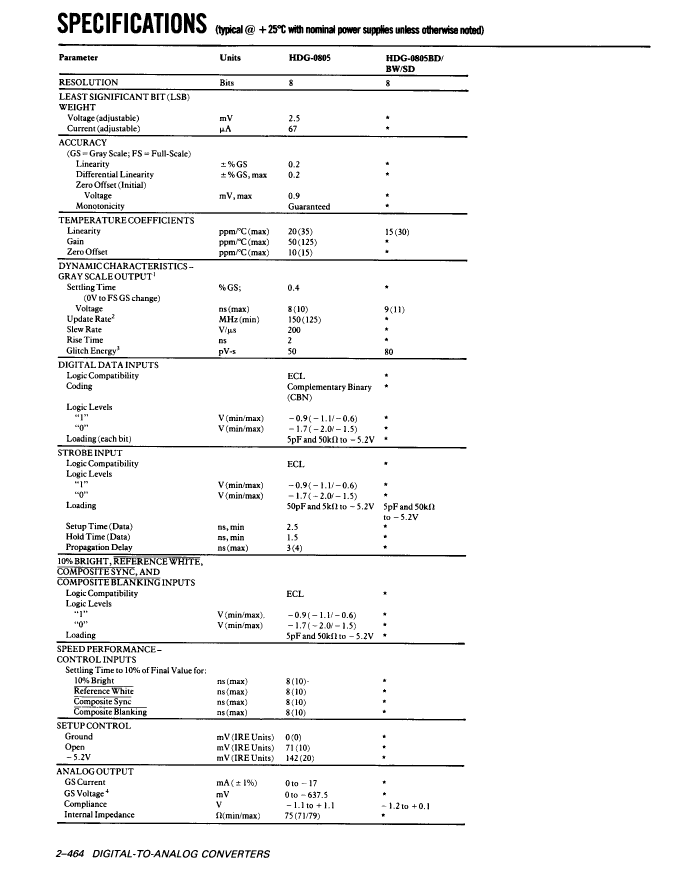

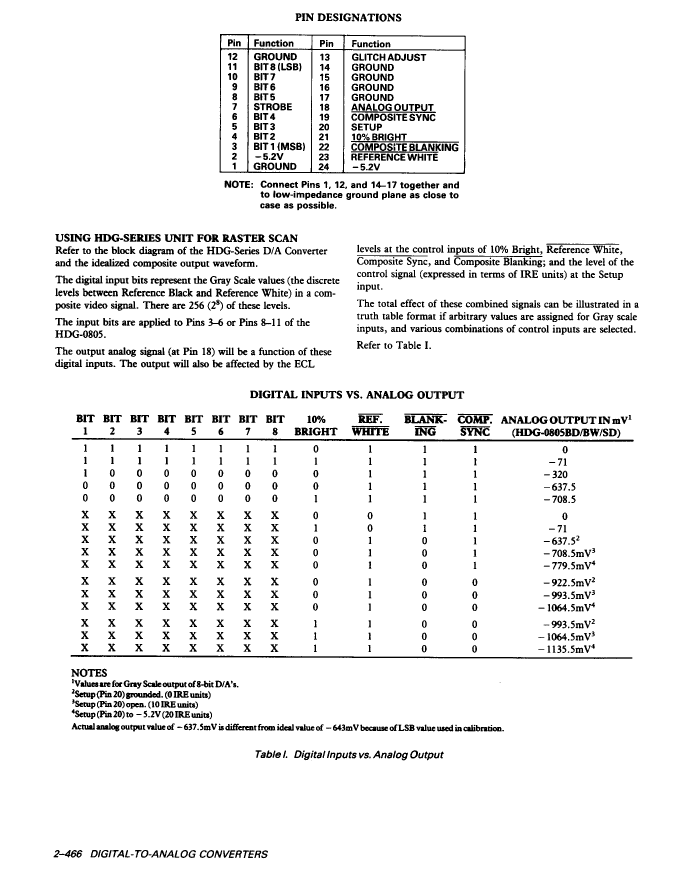

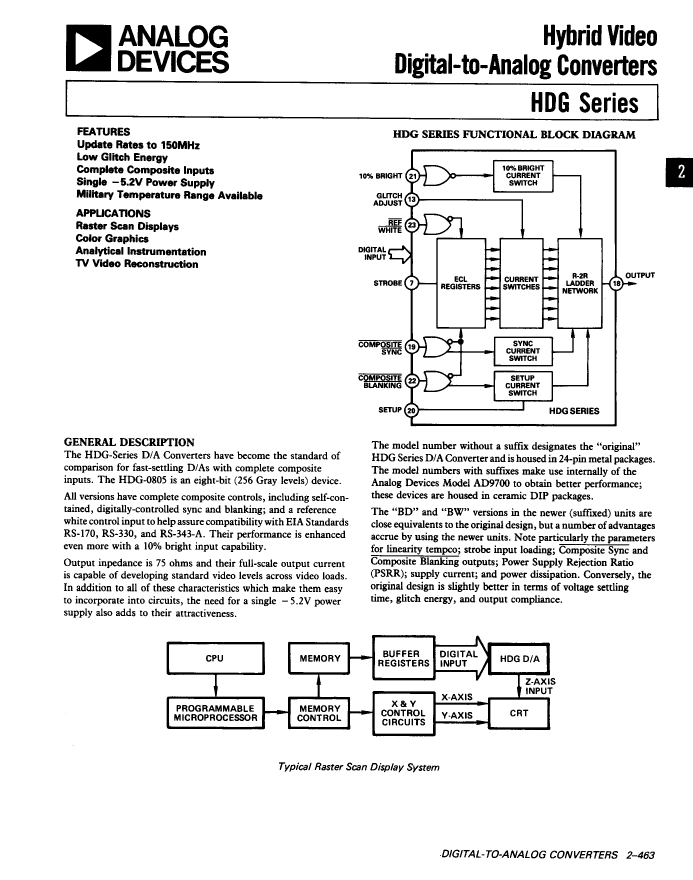

5962-01-181-4856: DescriptionIC IC,D/A CONVERTER,SINGLE,8-BIT,ECL,DIP,24PIN, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size238KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-01-181-4856 Overview

IC IC,D/A CONVERTER,SINGLE,8-BIT,ECL,DIP,24PIN, Digital to Analog Converter

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY
JESD-30 code	R-MDIP-T24
Nominal negative supply voltage	-5.2 V
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	-5.2 V
Certification status	Not Qualified
Maximum stabilization time	0.01 µs
Maximum slew rate	360 mA
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	5962-01-181-4856	SON-N954LF-07-1581-DD	HDG-0805SDB
Description	IC IC,D/A CONVERTER,SINGLE,8-BIT,ECL,DIP,24PIN, Digital to Analog Converter	Array/Network Resistor, Bussed, Thin Film, 0.1W, 1580ohm, 50V, 0.5% +/-Tol, -25,25ppm/Cel, 2021,	IC IC,D/A CONVERTER,SINGLE,8-BIT,ECL,DIP,24PIN, Digital to Analog Converter
Is it Rohs certified?	incompatible	conform to	incompatible
Reach Compliance Code	unknown	compliant	unknown
Number of functions	1	1	1
Number of terminals	24	8	24
Maximum operating temperature	85 °C	150 °C	125 °C
Minimum operating temperature	-25 °C	-55 °C	-55 °C
Package form	IN-LINE	SOIC	IN-LINE
surface mount	NO	YES	NO
technology	ECL	THIN FILM	ECL
Maker	ADI	-	ADI
Converter type	D/A CONVERTER	-	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY	-	COMPLEMENTARY BINARY
JESD-30 code	R-MDIP-T24	-	R-XDIP-T24
Nominal negative supply voltage	-5.2 V	-	-5.2 V
Number of digits	8	-	8
Package body material	METAL	-	CERAMIC
encapsulated code	DIP	-	DIP
Encapsulate equivalent code	DIP24,.6	-	DIP24,.6
Package shape	RECTANGULAR	-	RECTANGULAR
power supply	-5.2 V	-	-5.2 V
Certification status	Not Qualified	-	Not Qualified
Maximum stabilization time	0.01 µs	-	0.011 µs
Maximum slew rate	360 mA	-	140 mA
Temperature level	OTHER	-	MILITARY
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE
Terminal pitch	2.54 mm	-	2.54 mm
Terminal location	DUAL	-	DUAL
ECCN code	-	EAR99	3A001.A.2.C
JESD-609 code	-	e3	e0
Terminal surface	-	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)
