Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> F38456D

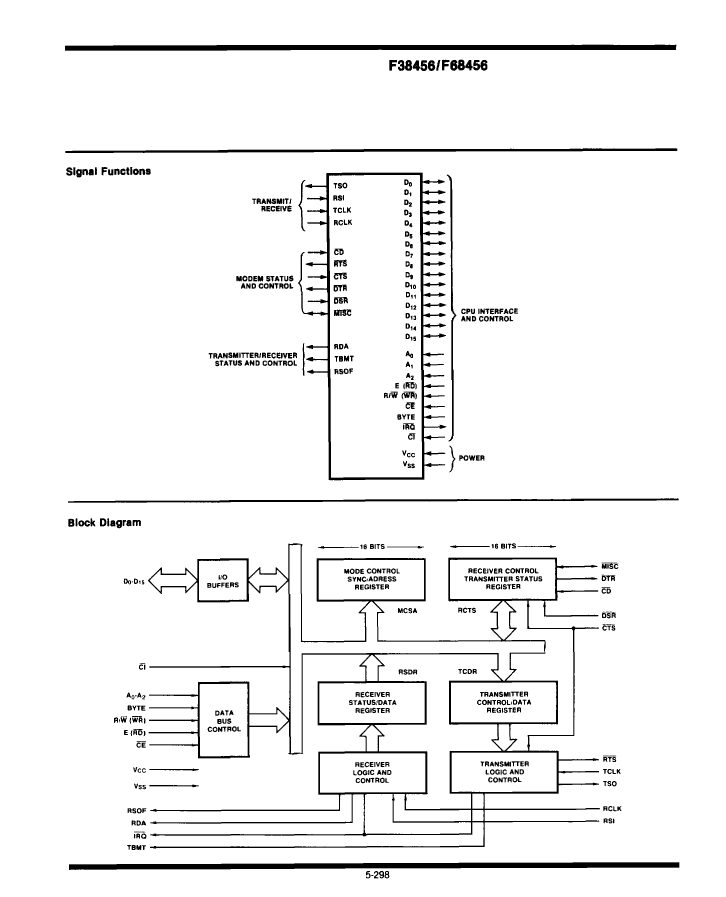

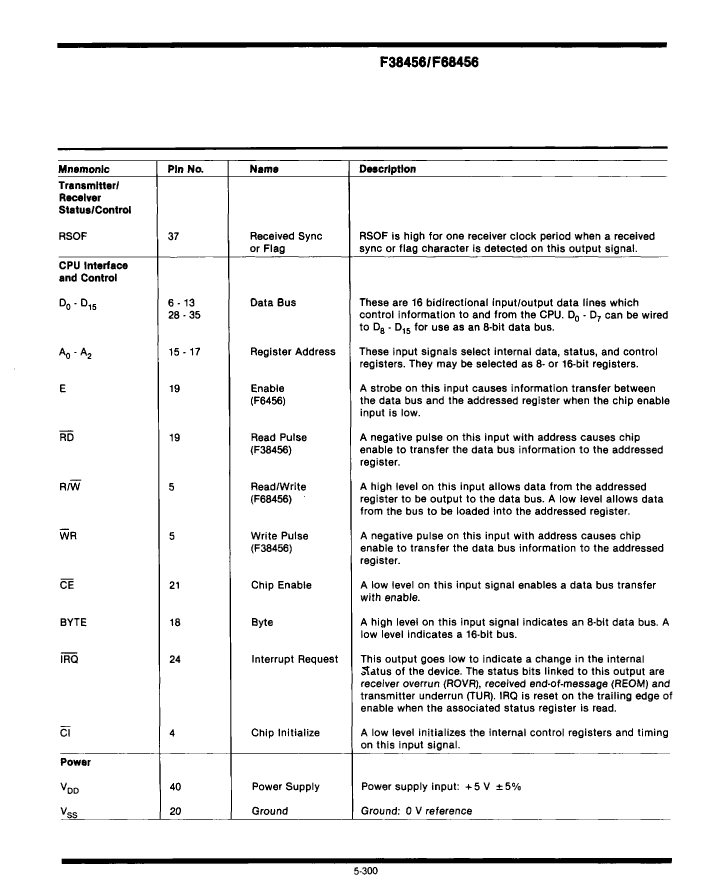

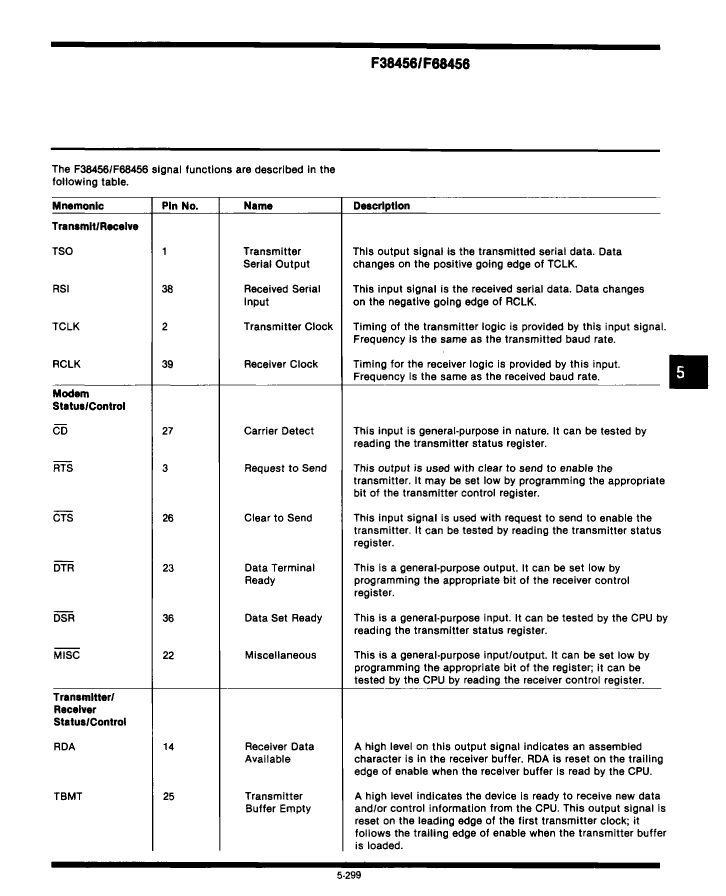

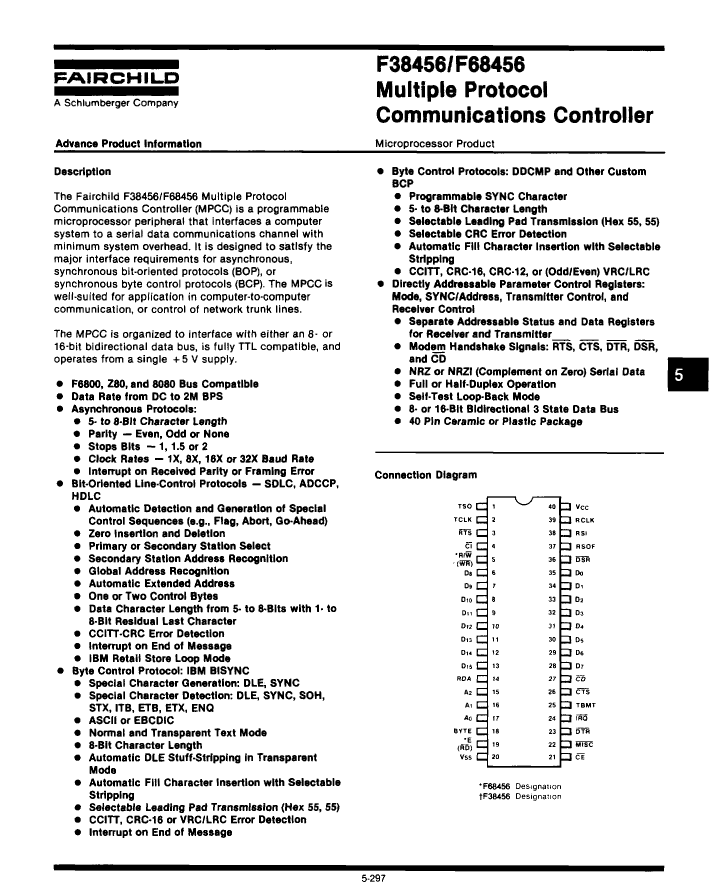

Preview

F38456D: DescriptionMulti Protocol Controller, 1 Channel(s), 0.25MBps, MOS, CDIP40, CERAMIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size126KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

F38456D Overview

Multi Protocol Controller, 1 Channel(s), 0.25MBps, MOS, CDIP40, CERAMIC, DIP-40

F38456D Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
Address bus width	3
boundary scan	NO
Bus compatibility	F6800; Z80; 8080
letter of agreement	SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; ADCCP; DDCMP
Data encoding/decoding methods	NRZ; NRZI
Maximum data transfer rate	0.25 MBps
External data bus width	16
JESD-30 code	R-GDIP-T40
length	52.1335 mm
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	1
Number of terminals	40
On-chip data RAM width
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	6.35 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL
Base Number Matches	1

Preview

Download Datasheet

View All

F38456D Related Products

	F38456D	F68456D	F38456P	F68456P
Description	Multi Protocol Controller, 1 Channel(s), 0.25MBps, MOS, CDIP40, CERAMIC, DIP-40	Multi Protocol Controller, 1 Channel(s), 0.25MBps, MOS, CDIP40, CERAMIC, DIP-40	Multi Protocol Controller, 1 Channel(s), 0.25MBps, MOS, PDIP40, PLASTIC, DIP-40	Multi Protocol Controller, 1 Channel(s), 0.25MBps, MOS, PDIP40, PLASTIC, DIP-40
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,	DIP,
Contacts	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown
Address bus width	3	3	3	3
boundary scan	NO	NO	NO	NO
Bus compatibility	F6800; Z80; 8080	F6800; Z80; 8080	F6800; Z80; 8080	F6800; Z80; 8080
letter of agreement	SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; ADCCP; DDCMP	SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; ADCCP; DDCMP	SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; ADCCP; DDCMP	SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; ADCCP; DDCMP
Data encoding/decoding methods	NRZ; NRZI	NRZ; NRZI	NRZ; NRZI	NRZ; NRZI
Maximum data transfer rate	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps
External data bus width	16	16	16	16
JESD-30 code	R-GDIP-T40	R-GDIP-T40	R-PDIP-T40	R-PDIP-T40
length	52.1335 mm	52.1335 mm	52.07 mm	52.07 mm
low power mode	NO	NO	NO	NO
Number of serial I/Os	1	1	1	1
Number of terminals	40	40	40	40
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	6.35 mm	6.35 mm	4.448 mm	4.448 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL
Base Number Matches	1	1	1	1
Maker	Fairchild	-	Fairchild	Fairchild
