HSJ1765-011075 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HSJ1765-011075

HSJ1765-011075: DescriptionAudio/RCA Connector, 5 Pole(s), Surface Mount Terminal, Jack; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric Compare View All

HSJ1765-011075 Overview

Audio/RCA Connector, 5 Pole(s), Surface Mount Terminal, Jack

HSJ1765-011075 Parametric

Parameter Name	Attribute value
Maker	Hosiden Corporation
Reach Compliance Code	unknown
body width	0.22 inch
subject depth	0.559 inch
body length	0.256 inch
Body/casing type	JACK
Configuration	1X1 HORIZONTAL
Connector type	3.5mm AUDIO
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Installation type	BOARD
Number of connectors	ONE
Number of poles	5
Number of ports	1
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT
Base Number Matches	1

Preview

Download Datasheet

View All

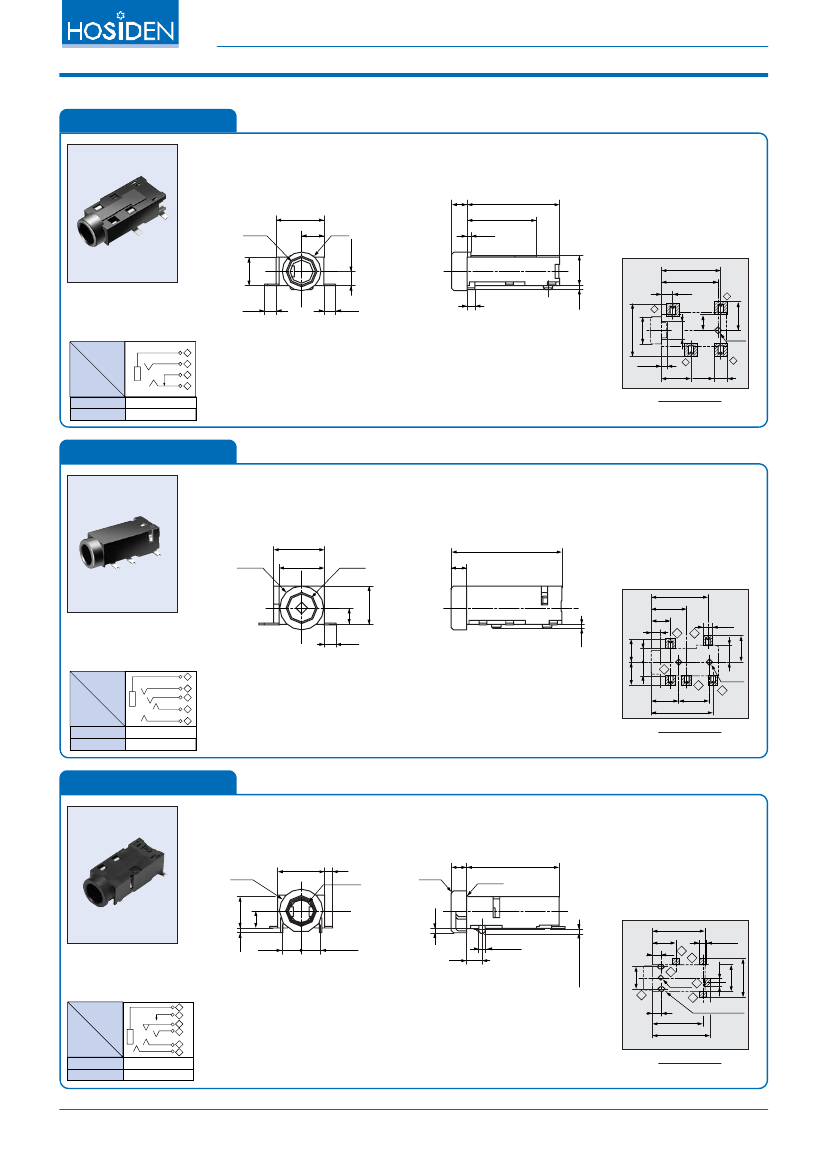

3.5 DIA Miniature Jacks SMD Style Horizontal Type

Unit: mm

HSJ1828-011020

6.2

3.6

0.5

2.9

1.85

9.8

3.2

2.9

1.3

Schematic

1.1

Housing

Color

Black

Red

5.5 4-2.4

Pad Layout

(Top View)

HSJ1828-011020

HSJ1828-011021

HSJ1765-011070

6.5

5.6

14.2

3.6

5.8

7.5

4.1

5 1

4.9 4.9

2.9 2.9

2.1

4.9

Schematic

5.8

6.5

13.1

Pad Layout

(Top View)

1.3

Housing

Color

Black

Yellow

HSJ1765-011070

HSJ1765-011075

HSJ2077-019670

5.5

3.6

R0.2

R0.3

4.2

2.1

0.5

(2.5)

(2)

2-0.8

1.1 2

Schematic

2-(1.4×0.8)

11.5

13.2

Pad Layout

(Top View)

Housing

Color

Black

Yellow

HSJ2077-019670

HSJ2077-019675

1.7

8.6

2.1mm

0.5 (B0SS)

5.3

1.9 4

0.6

3-1.7

3.6

5.6

1.5

0.5

h=2.1

5-2

5.3

1.5

0.5

h=1.85

10.5

2.1

3.7

3.9

HSJ1765-011075 Related Products

	HSJ1765-011075	HSJ1765-011070	HSJ2077-019670	HSJ2077-019675	HSJ1828-011020	HSJ1828-011021
Description	Audio/RCA Connector, 5 Pole(s), Surface Mount Terminal, Jack	Audio/RCA Connector, 5 Pole(s), Female, Surface Mount Terminal, Locking, Jack	Audio/RCA Connector, 6 Pole(s), Female, Surface Mount Terminal, Jack	Audio/RCA Connector, 6 Pole(s), Surface Mount Terminal, Jack	Audio/RCA Connector, 3 Pole(s), Surface Mount Terminal, Jack	Audio/RCA Connector, 3 Pole(s), Surface Mount Terminal, Jack
Maker	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.22 inch	0.193 inch	0.165 inch	0.217 inch	0.197 inch	0.197 inch
subject depth	0.559 inch	0.559 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch
body length	0.256 inch	0.256 inch	0.236 inch	0.276 inch	0.244 inch	0.244 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK
Configuration	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL
Connector type	3.5mm AUDIO	3.5mm AUDIO	3.5mm AUDIO	3.5mm AUDIO	3.5mm AUDIO	3.5mm AUDIO
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
Number of poles	5	5	6	6	3	3
Number of ports	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
