5RO/5: DescriptionRectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, TO-5,; CategoryDiscrete semiconductor diode; File Size47KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

5RO/5 Overview

Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, TO-5,

5RO/5 Parametric

Parameter Name	Attribute value
Maker	SSDI
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-5
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.045 µs
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

Preview

Download Datasheet

View All

PRELIMINARY

SOLID STATE DEVICES, INC.

14005 Stage Road * Santa Fe Springs, Ca 90670

Phone: (562) 404-4474 * Fax: (562) 404-1773

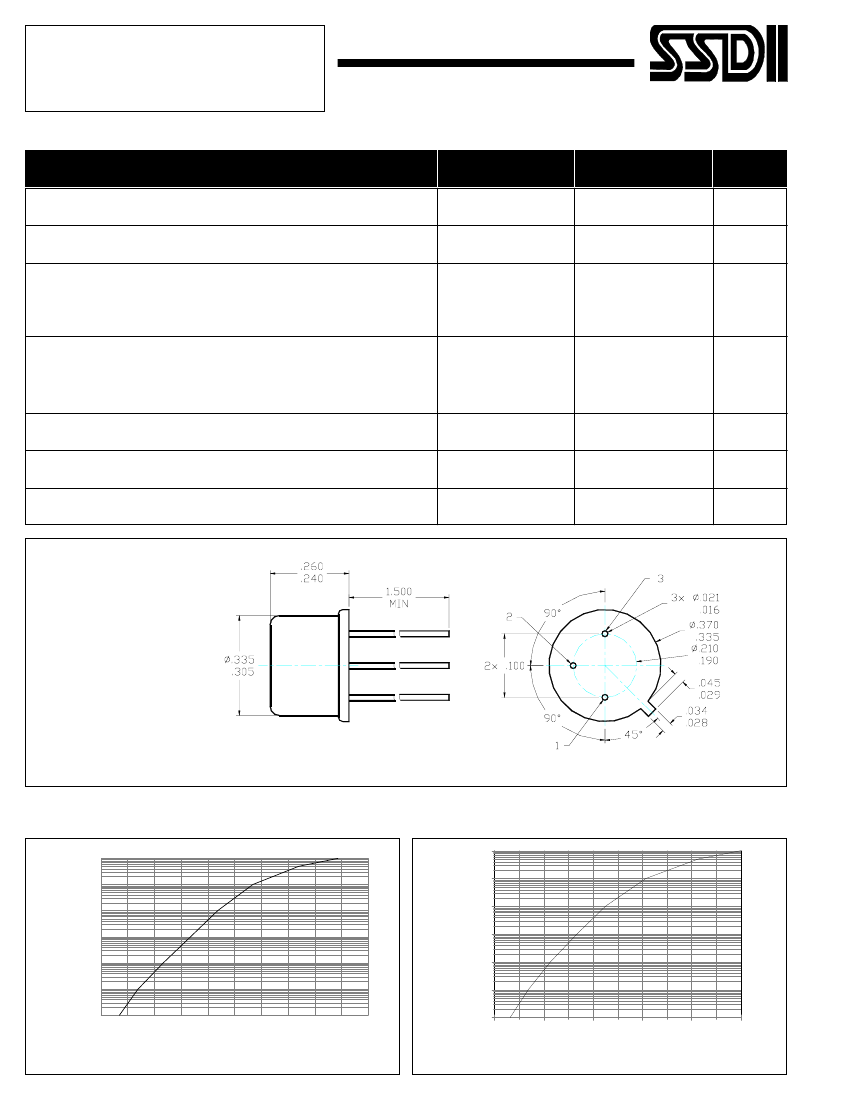

5RO/5

thru

15RO/5

1 AMP

50-150 VOLTS

EPION

HIGH SPEED

RECTIFIER

NON ISOLATED

TO-5

(Low Profile)

Designer's Data Sheet

FEATURES:

Optimized for 12V and 15V auxiliary output power supplies. The

EPION series has been designed to provide low forward voltage

drops and small delta shifts in reverse recovery time at high

temperature minimizing switching loses.

• Radiation Tolerant

• Ultra Fast Recovery Time

• Low Forward Voltage

• Low Reverse Leakage

• Hermetically Sealed Package

• High Reverse Blocking Voltage

• 175

o

C Operating T

J

Maximum Ratings

Peak Repetitive Reverse and

DC Blocking Voltage

5R

7R

10R

12R

15R

SYMBOL

V

RM(rep)

V

R

VALUE

50

70

100

125

150

1

UNITS

Volts

Half Wave Rectified Forward Current. Averaged Over

Full Cycle

(Resistive load, 60Hz, Sine Wave, T

C

= 55

o

C)

Peak Repetitive Forward Current

(T

C

= 55

o

C, 8.3 ms Pulse, Allow Junction to Reach Equilib-

rium Between Pulses)

Peak Surge Current

(T

C

= 55

o

C, Superimposed on Rated Current at Rated

Voltage, 8.3 ms Pulse)

Operating and Storage Temperature

Maximum Thermal Resistance

Junction to Case

Io

Amp

I

FM(rep)

I

FM(surge)

T

J

& Tstg

R

2JC

10

Amps

50

-65 TO +175

50

Amps

o

C

o

C/W

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RC0005A

5RO/5 Related Products

	5RO/5	12RO/5	15RO/5	10RO/5	7RO/5
Description	Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, TO-5,	Rectifier Diode, 1 Element, 1A, 125V V(RRM), Silicon, TO-5,	Rectifier Diode, 1 Element, 1A, 150V V(RRM), Silicon, TO-5,	Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, TO-5,	Rectifier Diode, 1 Element, 1A, 70V V(RRM), Silicon, TO-5,
Reach Compliance Code	compliant	compli	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-5	TO-5	TO-5	TO-5	TO-5
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	125 V	150 V	100 V	70 V
Maximum reverse recovery time	0.045 µs	0.045 µs	0.045 µs	0.045 µs	0.045 µs
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Base Number Matches	1	1	1	1	-
