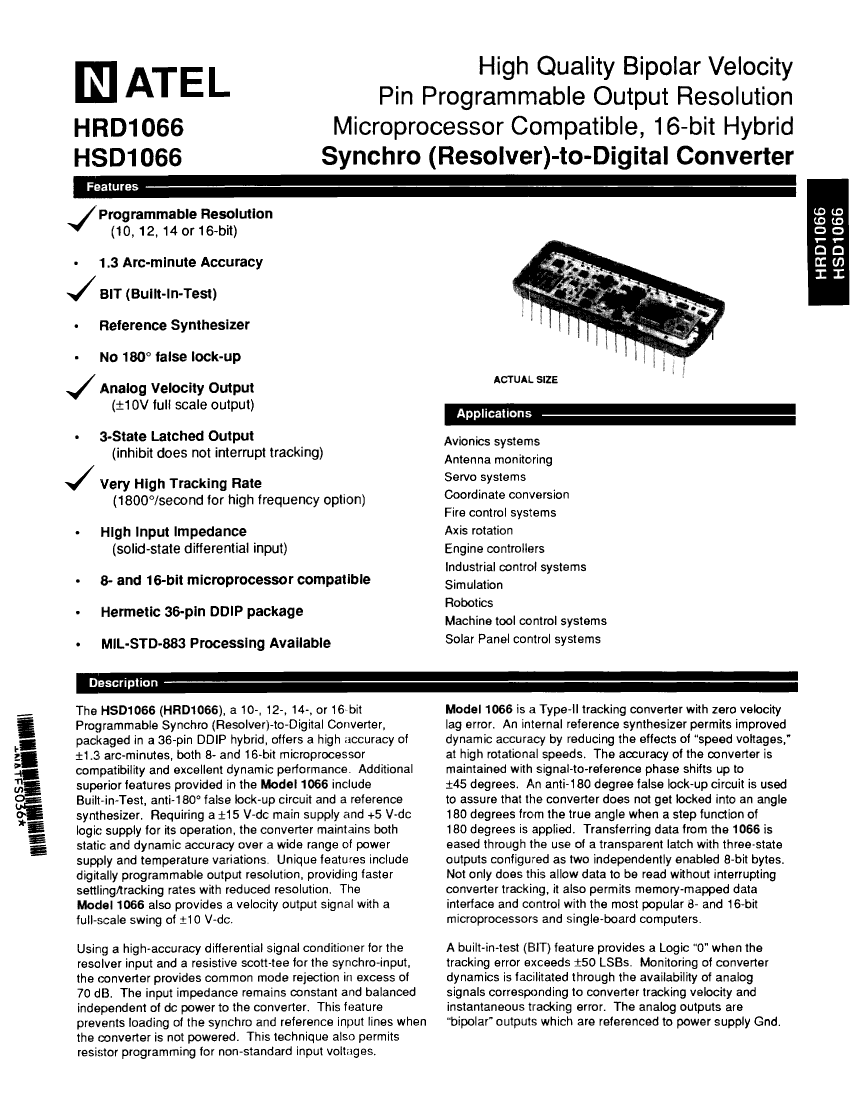

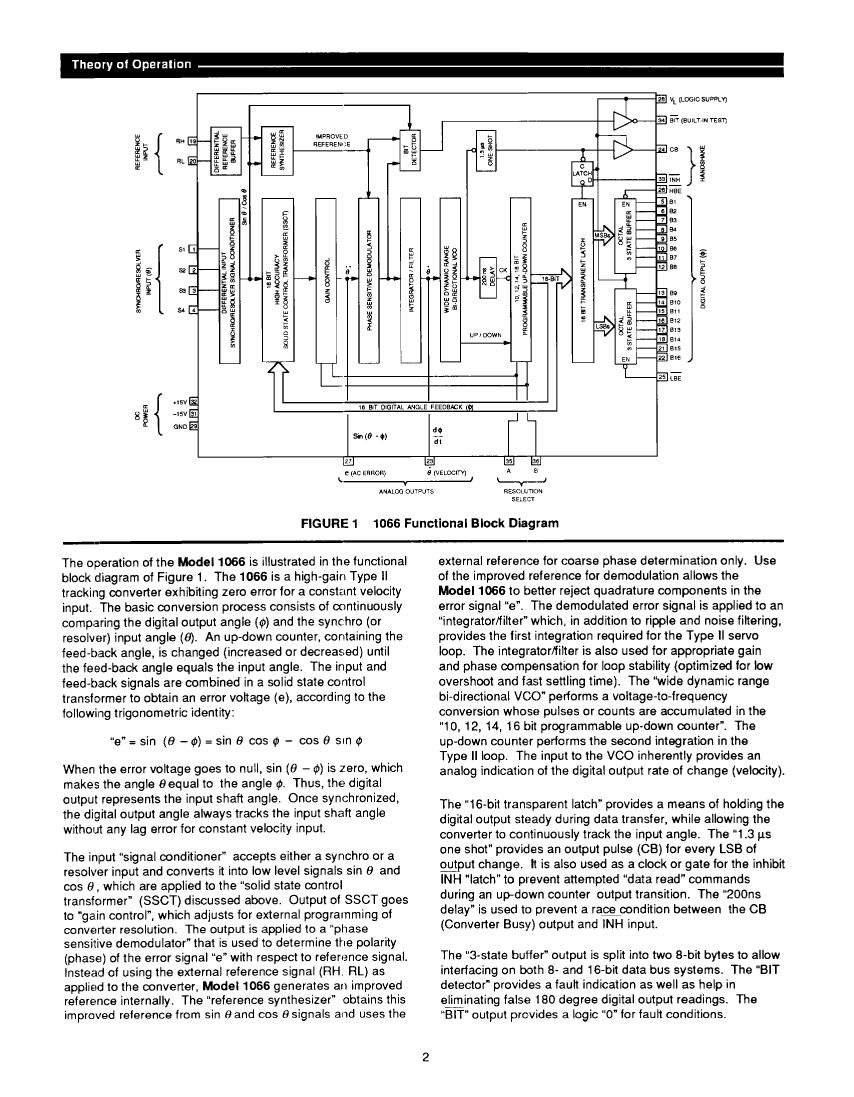

Synchro or Resolver to Digital Converter, Hybrid, CDIP36, 0.780 X 1.900 INCH, 0.210 INCH HEIGHT, HERMETIC SEALED, DOUBLE WIDTH, DIP-36

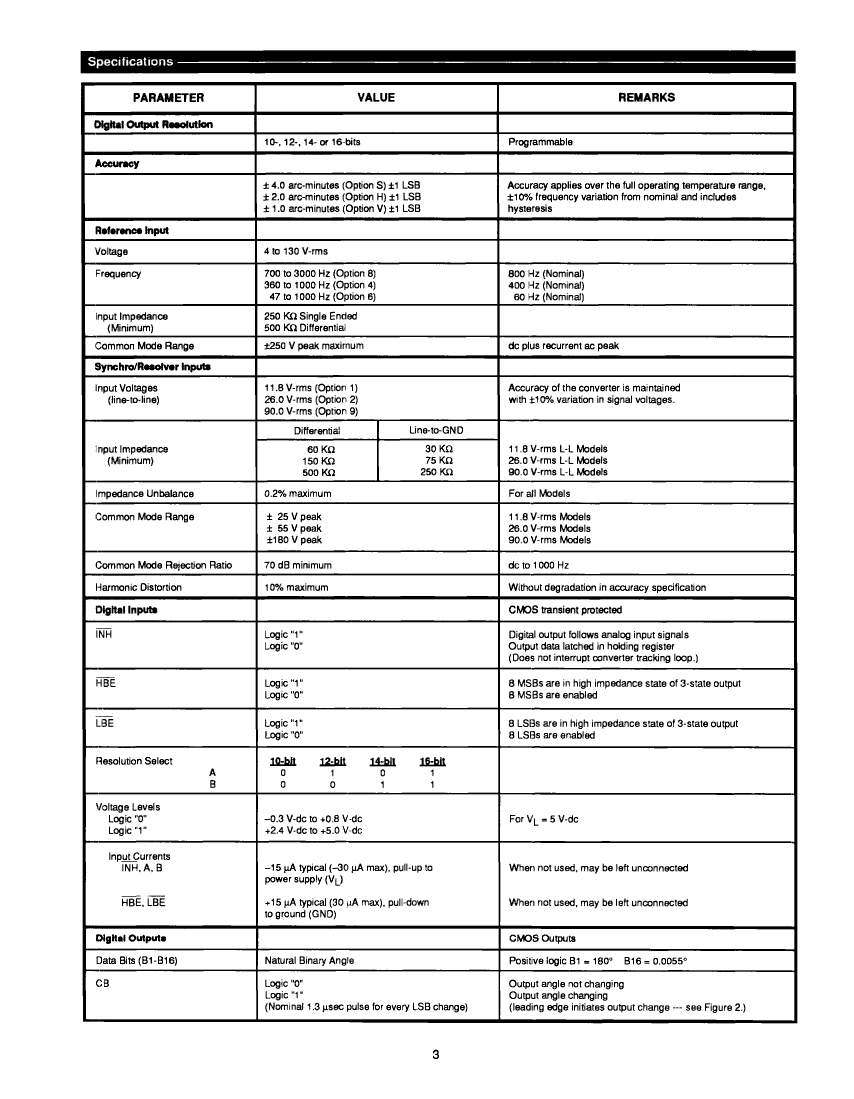

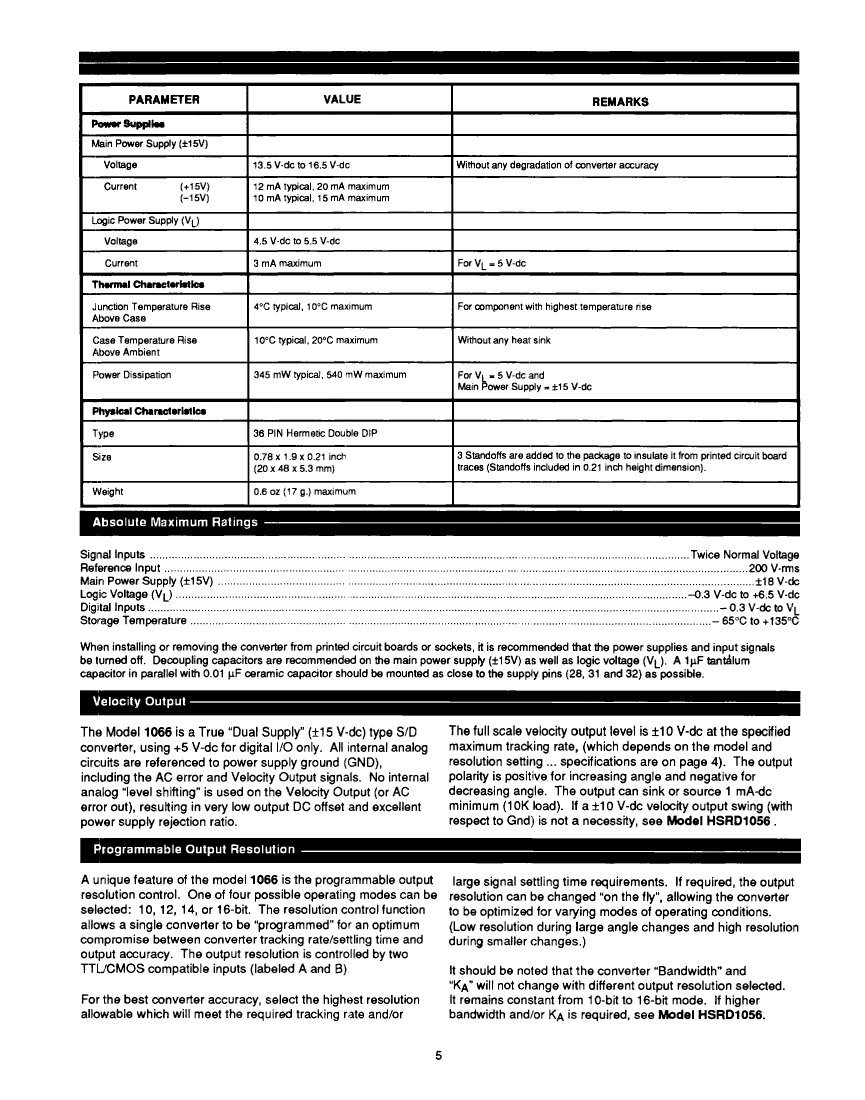

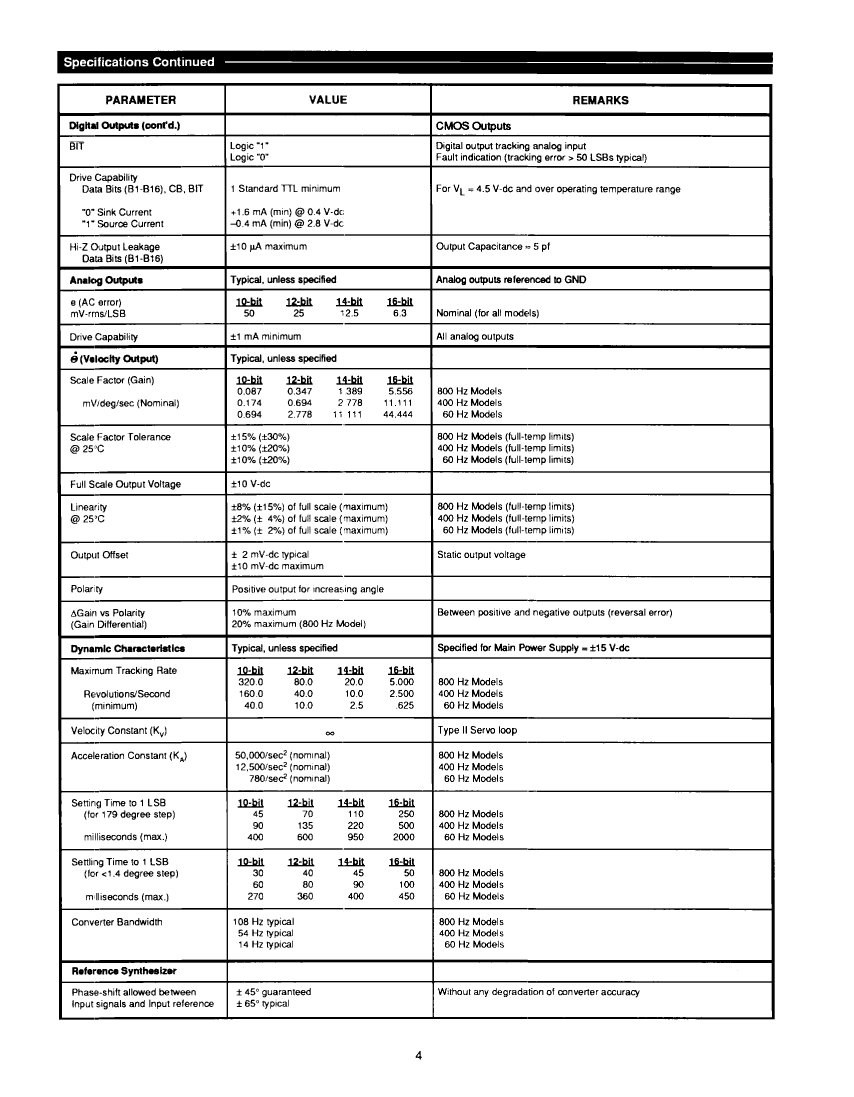

| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 36 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | BUILT-IN-TEST |
| Maximum analog input voltage | 26 V |
| Maximum angular accuracy | 4 arc min |
| Converter type | SYNCHRO OR RESOLVER TO DIGITAL CONVERTER |
| JESD-30 code | R-CDIP-P36 |
| length | 48.13 mm |
| Maximum negative supply voltage | -16.5 V |
| Minimum negative supply voltage | -13.5 V |
| Nominal negative supply voltage | -15 V |
| Number of digits | 16 |
| Number of functions | 1 |
| Number of terminals | 36 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum seat height | 5.4 mm |
| Maximum stabilization time | 500 µs |
| Signal/output frequency | 1000 Hz |
| Maximum slew rate | 20 mA |
| Maximum supply voltage | 16.5 V |
| Minimum supply voltage | 13.5 V |
| Nominal supply voltage | 15 V |
| surface mount | NO |
| technology | HYBRID |
| Temperature level | OTHER |
| Terminal form | PIN/PEG |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum tracking rate | 2.5 rps |
| width | 15.24 mm |
| Base Number Matches | 1 |
