50410310ST datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 50410310ST

50410310ST: DescriptionPiano Dip Switch, 3 Switches, SPST, Off-on, Vertical, 0.1A, 50VDC, Solder Terminal, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size116KB，1 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

50410310ST Overview

Piano Dip Switch, 3 Switches, SPST, Off-on, Vertical, 0.1A, 50VDC, Solder Terminal, Surface Mount-straight

50410310ST Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
Actuator angle
Actuator color	BLACK
Actuator length	0.043 inch
Actuator material	THERMOPLASTIC
Actuator type	PIANO
body width	8.9916 mm
Body color	BLACK
body height	6.604 mm
Body length or diameter	9.017 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	0.1A@50VDC
Contact function	OFF-ON
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	50 V
Dielectric withstand voltage	500VAC V
Electrical life	2000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	GOLD OVER NICKEL
Shell material	THERMOPLASTIC
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	5041
Installation features	SURFACE MOUNT-STRAIGHT
Number of switching segments	3
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Switch type	PIANO DIP SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

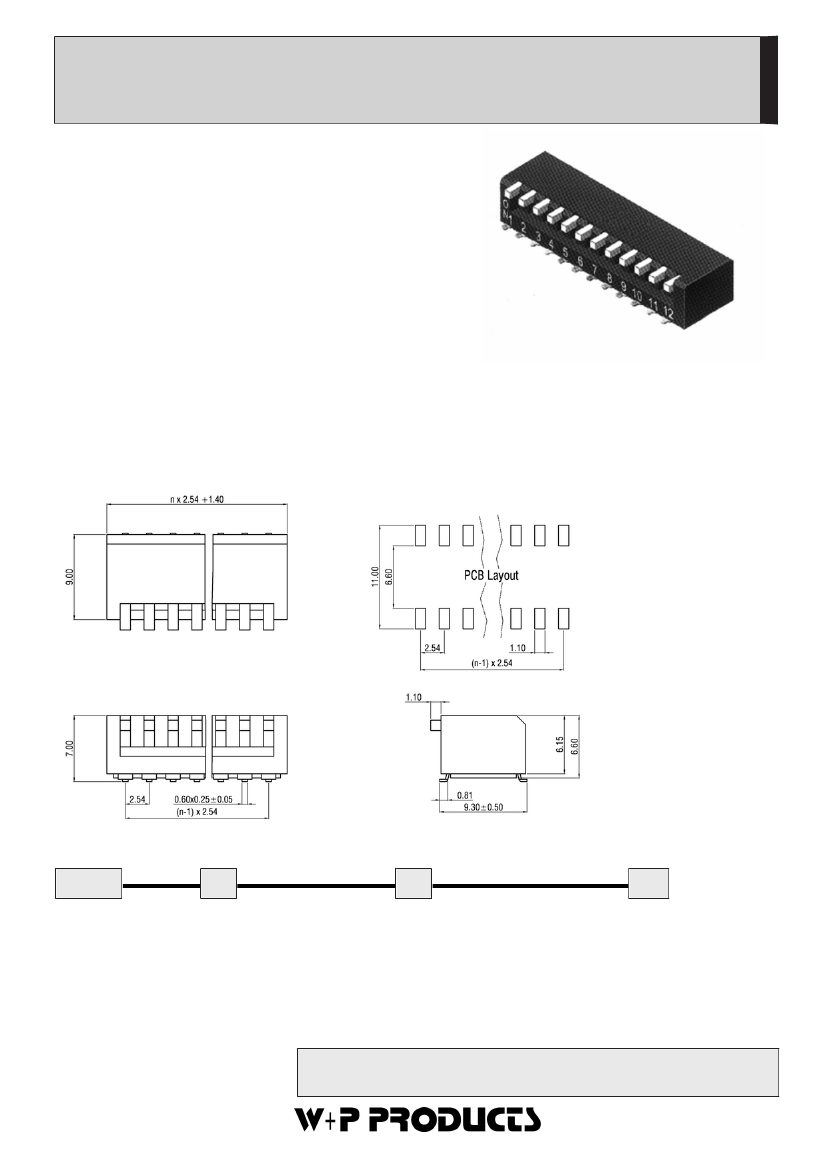

5041

SMT - DIP-Schalter - Piano-Version

SMT DIP-Switch - Piano Version

Technische Daten /Technical

Data

Gehäuse/Abdeckung/Hebel

Thermoplastischer Kunststoff, nach UL94 V-0

Case/Cover/Actuator

Thermoplastic, rated UL94 V-0

Farbe

Schwarz

Colour

Black

Kontaktmaterial

Phosphorbronze, vergoldet über Nickel

Contact Material

Phosphor bronze, gold plated over nickel

Kontaktbelastbarkeit

50V

, 100mA in Ruhe

24V

, 24mA im Schaltzustand

Contact Rating

50V

, 100mA in steady situation

24V

, 24mA at mate and break

Durchgangswiderstand

< 50mΩ im Auslieferungszustand

Contact Resistance

< 50mΩ at initial state

Isolationswiderstand

> 10

Ω

@ 500V

Insulation Resistance

> 10

Ω

@ 500V

Spannungsfestigkeit

500V

@ 1min

Test Voltage

500V

@ 1min

Temperaturbereich

-20°C ... +85°C

Temperature Range

-20°C ... +85°C

Elektrische Lebensdauer

min. 2000 Schaltungen/Schalter

Electrical Life

min. 2000 operations/switch

Mechanische Lebensdauer

min. 2000 Schaltungen/Schalter

Mechanical Life

min. 2000 operations/switch

Verarbeitung

250°C +/- 10°C für 10s

Processing

250°C +/- 10°C for 10s

Series

Circuits

Actuator

Packing

5041

A=6,08mm

A=8,72mm

A=11,90mm

A=14,44mm

A=16,98mm

A=19,52mm

A=22,06mm

A=24,60mm

A=27,14mm

A=36,48mm

Standardhebel

Standard actuator

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

Lieferformen /

Packing Options:

= In Stangen ohne PP-Pad /

Packed in tubes

= Tape & Reel Verpackung /

Tape & Reel packing

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

50410310ST Related Products

	50410310ST	50410210ST	50410410ST
Description	Piano Dip Switch, 3 Switches, SPST, Off-on, Vertical, 0.1A, 50VDC, Solder Terminal, Surface Mount-straight	Piano Dip Switch, 2 Switches, SPST, Off-on, Vertical, 0.1A, 50VDC, Solder Terminal, Surface Mount-straight	Piano Dip Switch, 4 Switches, SPST, Off-on, Vertical, 0.1A, 50VDC, Solder Terminal, Surface Mount-straight
Maker	W+P Products GmbH	W+P Products GmbH	W+P Products GmbH
Reach Compliance Code	compliant	compliant	compliant
Actuator color	BLACK	BLACK	BLACK
Actuator length	0.043 inch	0.043 inch	0.043 inch
Actuator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Actuator type	PIANO	PIANO	PIANO
body width	8.9916 mm	8.9916 mm	8.9916 mm
Body color	BLACK	BLACK	BLACK
body height	6.604 mm	6.604 mm	6.604 mm
Body length or diameter	9.017 mm	6.477 mm	11.557 mm
center contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Center contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Maximum contact current (DC)	0.1 A	0.1 A	0.1 A
Contact (DC) maximum rated R load	0.1A@50VDC	0.1A@50VDC	0.1A@50VDC
Contact function	OFF-ON	OFF-ON	OFF-ON
Contact resistance	0.05 mΩ	0.05 mΩ	0.05 mΩ
Maximum contact voltage (DC)	50 V	50 V	50 V
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Electrical life	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)
End contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
End contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Shell material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	5041	5041	5041
Installation features	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT
Number of switching segments	3	2	4
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
surface mount	NO	NO	NO
Switch action	VERTICAL	VERTICAL	VERTICAL
switch function	SPST	SPST	SPST
Switch type	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH
Termination type	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1
