BX2575LANLT Overview

Telecom Transformer

BX2575LANLT Parametric

Parameter NameAttribute value
MakerPulse Electronics
Reach Compliance Codecompliant
ECCN codeEAR99
Manufacturer's serial numberBX2575LANLT
Transformer typeTELECOM TRANSFORMER
Base Number Matches1

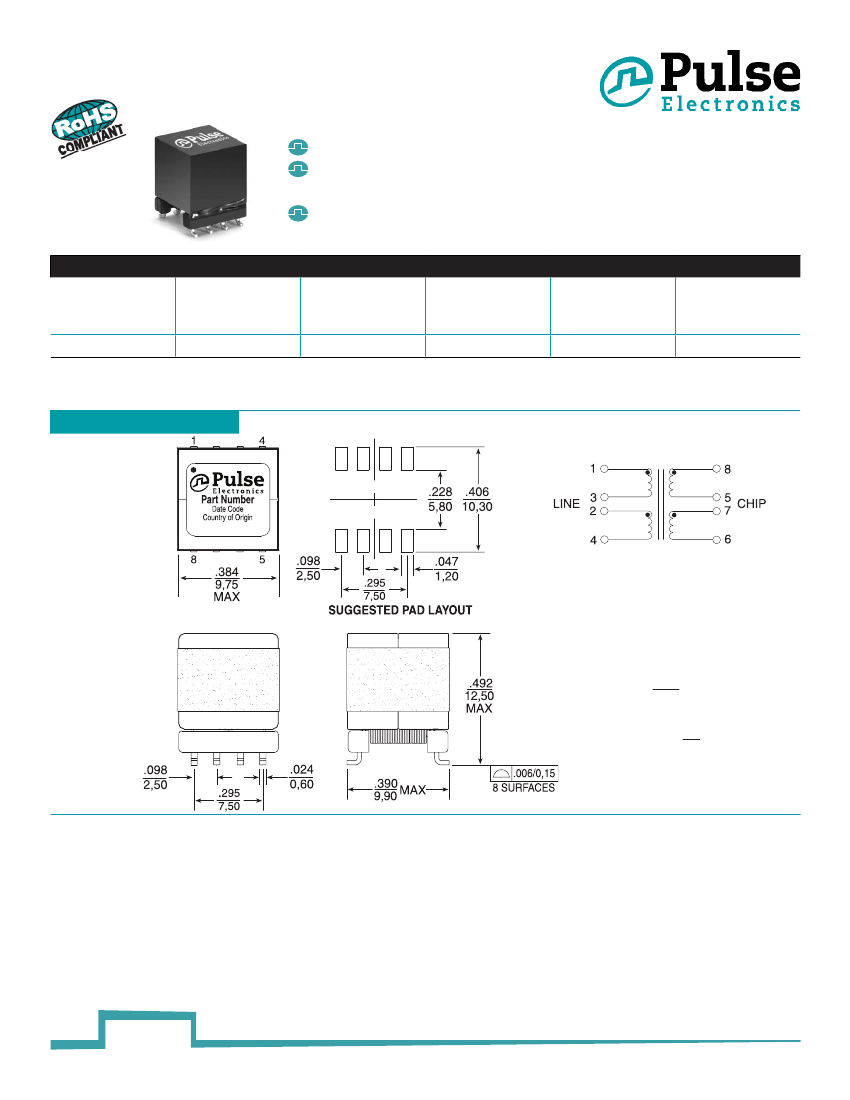

ADSL Line Transformer
For Conexant CO Chipset
ADSL/ADSL+ transformer for CO applications
Matched to Conexant (Globespan) 24Mbps CO chipset with
Elantec EL1528 driver, Annex A and C applications
Meets functional insulation requirements for lowest cost
Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C
RoHS-5
Compliant
Part Number
BX2575L
RoHS-6
Compliant
Part Number
BX2575LNL
Turns Ratio
(Line:Chip)
0.9:1
OCL 1-4
(w/2-3 tied)
(μH
±7%)
1000
Isolation Voltage
Line:Chip
(Vrms)
1500
Working
Voltage
(Vrms)
250
Notes:
Transformers are shipped in trays, unless Tape & Reel packaging is specified. Please add the suffix “T” (i.e. BX2575LT and BX2575LNLT) for tape and reel orders.
Mechanical
BX2575L / BX2575LNL
Schematic
Weight
......................3.2 grams
Tape & Reel
..................175/reel
Tray
...............................90/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
For More Information
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Tel: 858 674 8100
Fax: 858 674 8262
Pulse Europe
Einsteinstrasse 1
D-71083 Herrenberg
Germany
Pulse China Headquarters
B402, Shenzhen Academy of
Aerospace Technology Bldg.
10th Kejinan Road
High-Tech Zone
Nanshan District
Shenzen, PR China 518057
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 2704/2705
Super Ocean Finance Ctr.
2067 Yan An Road West
Shanghai 200336
China
Tel: 86 21 62787060
Fax: 86 2162786973
Pulse South Asia
135 Joo Seng Road
#03-02
PM Industrial Bldg.
Singapore 368363
Tel: 65 6287 8998
Fax: 65 6287 8998
Pulse North Asia
3F, No. 198
Zhongyuan Road
Zhongli City
Taoyuan County 320
Taiwan R. O. C.
Tel: 886 3 4356768
Fax: 886 3 4356823 (Pulse)
Fax: 886 3 4356820 (FRE)
Tel: 49 7032 78060
Fax: 49 7032 7806 135
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be
trademarks or registered trademarks of their respective owners. © Copyright, 2012. Pulse Electronics, Inc. All rights reserved.
1
pulseelectronics.com
B864.C (02/12)
