208577128 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 208577128

Preview

208577128: DescriptionBoard Euro Connector, Female, Right Angle, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

208577128 Overview

Board Euro Connector, Female, Right Angle, Solder Terminal, Receptacle

208577128 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=128, MAX ROWS (SERIES)=4
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	YES
Manufacturer's serial number	8577
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

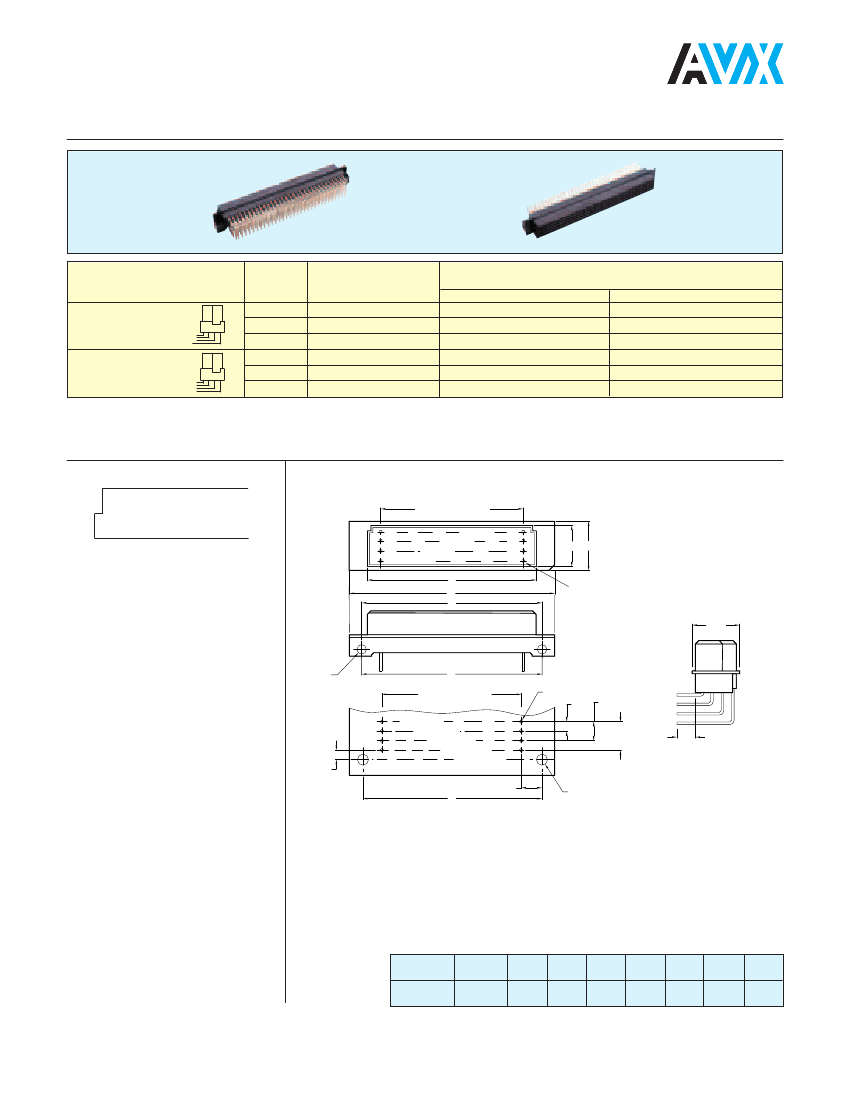

Female Style R

Expanded High Temperature

Series 8577 – 4 rows (4 x 32) Inverted

Contact Design

and

Termination Length

0.6 x 0.6 mm Post Profile

3.0 mm (Y) Right Angled

0.6 x 0.6 mm Post Profile

3.0 mm (Y) Right Angled

Number of

Contacts

128

Loading Description

a + b + c + d fully loaded

Part Number

Performance classes according to DIN 41612

II

I

20 8577 128 002 025

20 8577 128 002 049

128

a + b + c + d fully loaded

20 8577 128 006 025

20 8577 128 006 049

NB: Alternative Prefix Variations Available: 26, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION

●

DIMENSIONS

A EQ SP @ 2.54 [0.100] = B

d

c

b

a

ROW D

ROW C

ROW B

ROW A

E

C

D

F

G

128 contacts,

rows a + b + c + d fully loaded

1

13.1

[0.516]

2.54

[0.100] DIA.

D

1.02 DIA.

[0.040]

2.54

[0.100]

ROW E

ROW D

ROW C

ROW B

ROW A

7.62

[0.300]

Y

For Y dimension see

contact design

5.08

[0.200]

A EQ SP @ 2.54 [0.100] = B

2.54

[0.100]

5.08 [0.200]

D

HOLE PATTERN

2.84

[0.112] DIA.

Unit: millimeters (inches)

No. Contact

Positions

128

Contact

Rows

4 (4 x 32)

A

31

B

78.74

(3.100)

C

D

E

F

G

93.90 88.90 84.90

(3.697) (3.500) (3.343)

11.10 13.10

(0.437) (0.516)

108
