251-065-0001G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 251-065-0001G

251-065-0001G: DescriptionRF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

251-065-0001G Overview

RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle

251-065-0001G Parametric

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-39012
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	251
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

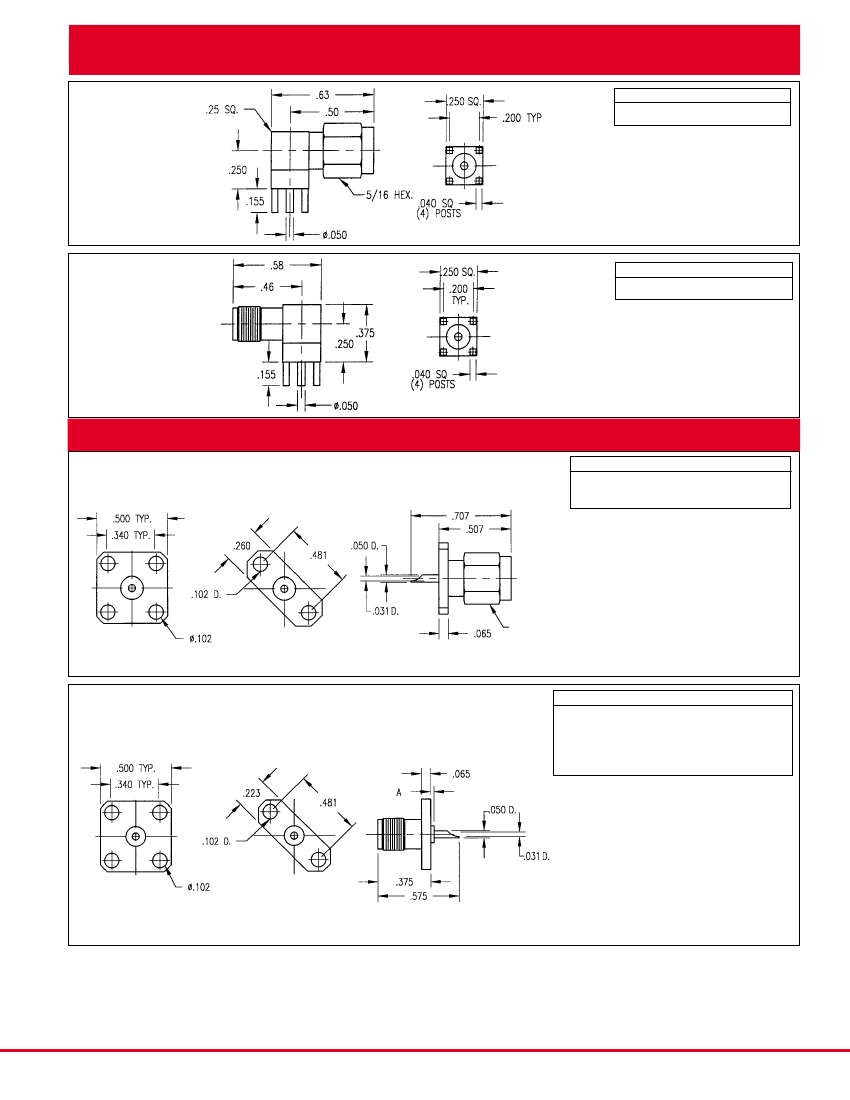

SMA STAINLESS STEEL:

Printed Circuit Receptacles

Right

Angle Plug

Part Number

Mounting Hole

252-060-0040G

No. 060

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

Right Angle

Jack

Part Number

Mounting Hole

253-060-0040G

No. 060

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

SMA STAINLESS STEEL:

Straight Plug

Flange Mount

Flange Mount Receptacle

Part Number

Mounting Hole Figure

250-065-0000G

No. 065

250-066-0000G

No. 066

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

5/16 HEX

Figure 1

Straight Jack

Flange Mount

Figure 2

Part Number Mounting Hole A Figure

251-065-0000G

No. 065

.000

251-066-0000G

No. 066

.000

251-065-0001G

No. 065

.025

251-066-0001G

No. 066

.025

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Figure 2

Figure 1

Note: Dimensions shown in inches.

Winchester/Retconn

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com

RF/9

251-065-0001G Related Products

	251-065-0001G	250-065-0000G	251-065-0000G	253-060-0040G	252-060-0040G	251-066-0001G	251-066-0000G
Description	RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle	RF SMA Connector, Male, Panel Mount, Cable Mount, Solder Terminal, Receptacle	RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle	RF SMA Connector, Female, Board Mount, Solder Terminal, Receptacle	RF SMA Connector, Male, Board Mount, Solder Terminal, Receptacle	RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle	RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD (30) OVER NICKEL (50)
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	MALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	BOARD	BOARD	CABLE	CABLE
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	NO	NO	YES	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	1
Maker	Winchester Electronics	-	Winchester Electronics	Winchester Electronics	Winchester Electronics	-	-
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Manufacturer's serial number	251	250	251	-	252	251	251
