314025.MX280P: DescriptionElectric Fuse, Fast Blow, 25A, 280VAC, 50A (IR), Inline/holder, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size141KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

314025.MX280P Overview

Electric Fuse, Fast Blow, 25A, 280VAC, 50A (IR), Inline/holder, ROHS COMPLIANT

314025.MX280P Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Fusing characteristics	FAST
body height	31.75 mm
Body length or diameter	6.35 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	314P
Installation features	INLINE/HOLDER
physical size	6.35mm x 31.75mm
Rated breaking capacity	50 A
Rated current	25 A
Rated voltage (AC)	280 V
Guideline	CE; CSA; METI; PSE; UL
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

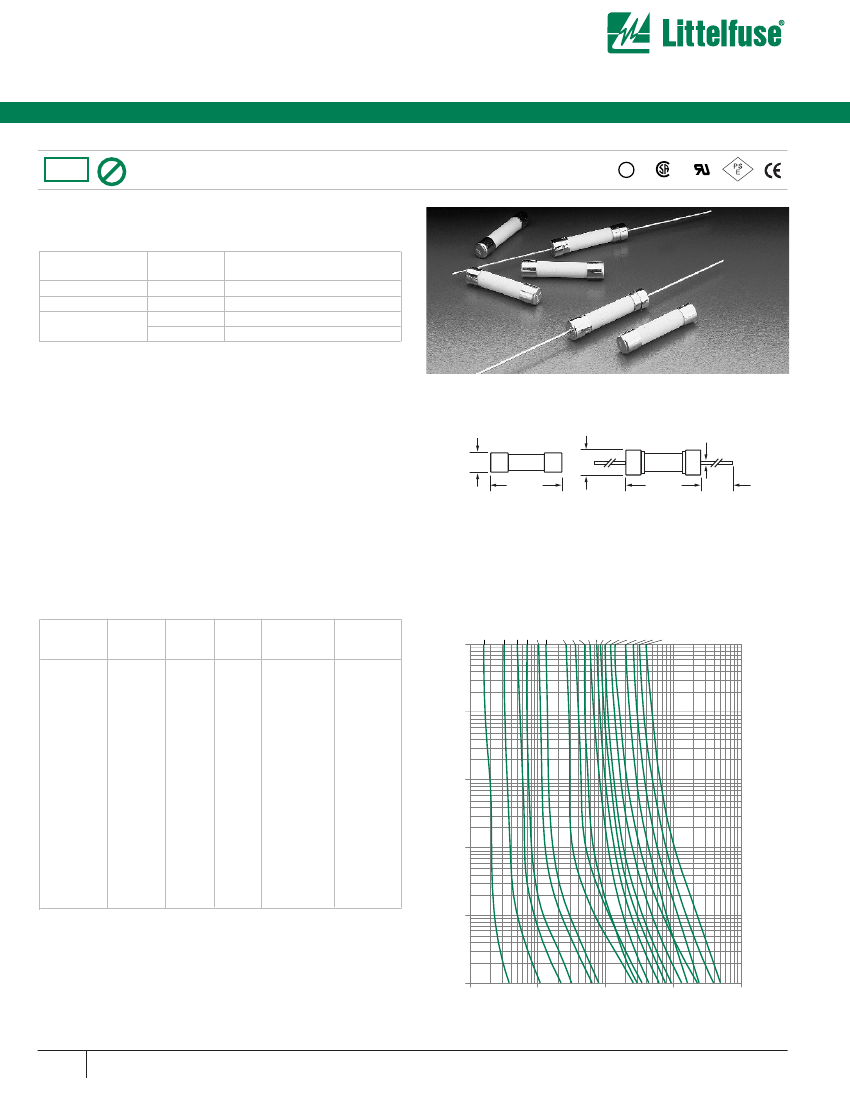

Axial Lead and Cartridge Fuses

Ceramic Body

RoHS

3AB

Fast-Acting Fuse 314P/324P Series

Ceramic body construction permits higher interrupting ratings and volt-

age ratings. Ideal for applications where high current loads are expected.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

135%

200%

Ampere

Rating

1/8–30

1/8–12

15 – 30

Opening

Time

4 hours,

Minimum

1 hour,

Maximum

15 seconds,

Maximum

30 seconds,

Maximum

AGENCY APPROVALS:

Listed by Underwriters Laboratories

and Certified by CSA through 15 amperes at 250 VAC/125 VDC.

Recognized under the Components Program of Underwriters

Laboratories at 20-30A, certified by CSA at 20A, and approved by METI

from 10 through 30 amperes.

AGENCY FILE NUMBERS:

UL E10480, CSA LR 29862.

314

000P

Series

6.985 (.275")

6.35 (.25")

31.75

(1.25")

324

000P

Series

0.813 (.032") (

1/ 8

- 15A)

1.016 (.040") (20 - 30A)

INTERRUPTING RATINGS:

0.125 - 20A

25- 30A

0.125 - .75A

1 - 3A

4 - 15A

20A

25-30A

15-25A*

10,000@ 125 VAC

400A @ 125 VAC

35A @ 250 VAC

100A @ 250VAC

750A @ 250VAC

1,000A @ 250VAC

200A @ 300VAC

100A @ 250VAC

50A @ 280VAC

32.72

(1.288")

38.1

(1.50") TYP.

Axial Lead Material: Tin coated copper.

Average Time Current Curves

ORDERING INFORMATION:

1/8A

Cartridge

Catalog

Number

314.125P

314.250P

314.375P

314.500P

314.750P

314

001P

314

002P

314

003P

314

004P

314

005P

314

006P

314

007P

314

008P

314

010P

314

012P

314

015P

314

020P

314

025P

314

030P

Axial Lead

Catalog

Number

324.125P

324.250P

324.375P

324.500P

324.750P

324

001P

324

002P

324

003P

324

004P

324

005P

324

006P

324

007P

324

008P

324

010P

324

012P

324

015P

324

020P

324

025P

324

030P

Ampere

Rating

1/8

1/4

3/8

1/2

3/4

Voltage

Rating

250

Nominal

Resistance

Cold Ohms

6.20

1.95

0.820

0.500

0.250

0.189

0.0700

0.0432

0.0470

0.0300

0.0240

0.0187

0.0153

0.0105

0.00760

0.00505

0.00355

0.00235

0.00182

Nominal

Melting I

Sec.

0.00149

0.0140

0.050

0.115

0.466

0.690

11.0

14.6

10.4

26.0

45.0

71.0

105.0

206.0

570.0

292.0

631.0

1450.0

2490.0

1/4A

3/8A

1/2A

3/4A

1000

100

TIME IN SECONDS

*50A @ 280VAC interrupting rating available for 15A, 20A and 25A devices. Add

suffix ‘280’. Example: 0324025.MX280P.

0.1

0.01

0.1

100

CURRENT IN AMPERES

1000

406

w w w. l i t t e l f u s e . c o m

10A

12A

15A

20A

25A

30A

314025.MX280P Related Products

	314025.MX280P	324025.MX280P	324015.MX280P	314020.MX280P	314015.MX280P	324020.MX280P
Description	Electric Fuse, Fast Blow, 25A, 280VAC, 50A (IR), Inline/holder, ROHS COMPLIANT	Electric Fuse, Fast Blow, 25A, 280VAC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Fast Blow, 15A, 280VAC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Fast Blow, 20A, 280VAC, 50A (IR), Inline/holder, ROHS COMPLIANT	Electric Fuse, Fast Blow, 15A, 280VAC, 50A (IR), Inline/holder, ROHS COMPLIANT	Electric Fuse, Fast Blow, 20A, 280VAC, 50A (IR), Through Hole, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Fusing characteristics	FAST	FAST	FAST	FAST	FAST	FAST
body height	31.75 mm	32.72 mm	32.72 mm	31.75 mm	31.75 mm	32.72 mm
Body length or diameter	6.35 mm	6.99 mm	6.99 mm	6.35 mm	6.35 mm	6.99 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Manufacturer's serial number	314P	324P	324P	314P	314P	324P
Installation features	INLINE/HOLDER	THROUGH HOLE	THROUGH HOLE	INLINE/HOLDER	INLINE/HOLDER	THROUGH HOLE
physical size	6.35mm x 31.75mm	6.99mm x 32.72mm	6.99mm x 32.72mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.99mm x 32.72mm
Rated breaking capacity	50 A	50 A	50 A	50 A	50 A	50 A
Rated current	25 A	25 A	15 A	20 A	15 A	20 A
Rated voltage (AC)	280 V	280 V	280 V	280 V	280 V	280 V
Guideline	CE; CSA; METI; PSE; UL	CE; CSA; METI; PSE; UL	CE; CSA; METI; PSE; UL	CE; CSA; METI; PSE; UL	CE; CSA; METI; PSE; UL	CE; CSA; METI; PSE; UL
surface mount	NO	NO	NO	NO	NO	NO
Terminal shape	END CAP	PIN WIRE	PIN WIRE	END CAP	END CAP	PIN WIRE
Base Number Matches	1	1	1	1	1	1
