PCB Mount
Filtered Terminal Blocks

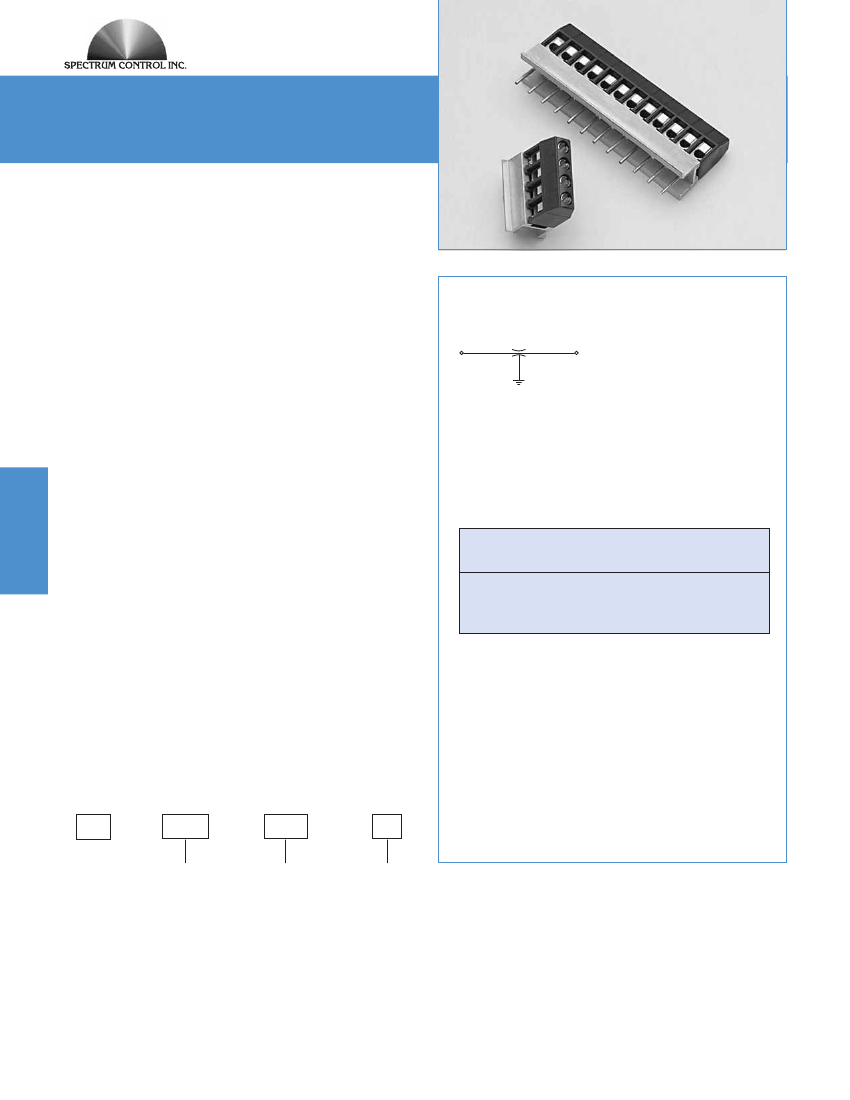

The PCB mount filtered terminal block is designed to pro-
vide excellent EMI/RFI filtering of low voltage DC power
lines and control lines. These new terminal blocks use a
unique screw clamp system with a wire protector which
provides for quick and easy installation. Spectrum’s PCB
Mount terminal blocks can be used for a variety of power
supply filtering applications in telecommunications equip-
ment, metering, industrial controls, instrumentation and
EDP equipment.
Specifications
ELECTRICAL
Features
s
s
C Filter
s
s
s
s
Filtered Arrays
s
s
Filter element provides high insertion loss
for EMI/RFI filtering of DC power and control lines
Rugged construction provides protection to filtering
element; especially useful for repeated changes in
wiring or field connections
2 to 12 terminals available (combine if larger
number of terminals needed)
Quick and easy PCB installation and maintenance
Cost-effective solution for industrial
interconnection EMI filtering problems
Selectively loaded filter pins to economically meet
exact filtering requirements
Available with European (5 mm) or US (.200") pin
spacing
Available in RoHS compliant versions
Operating temperature:
Working voltage:
Capacitance:
Dielectric
withstanding voltage:
Current rating:
D.C. resistance:
-40° C to 80° C
100VDC
2500 pF* +80% / -20%
707VDC
12 Amps max.
.01 ohms max.
Typical Insertion Loss — dB:
In 50 Ohm Circuit
10 MHz....... 10.4
50 MHz....... 23.9
100 MHz....... 29.9
MECHANICAL
Center spacing:
Wire size:
Screw material:
Recommended PCB
hole diameter:
Molded material:
Tightening torque:
Terminal:
500 MHz......... 43.9
1000 MHz......... 49.9
Ordering Information
Example:
52-227-006-L
The part number shown represents a low profile PCB
mount terminal block for thru-hole grounding with six terminals
(US spacing).
US .200: (5.08 mm)
EURO .197" (5 mm)
AWG 12 through 26
steel, zinc chromate plate
.05" (1.30 mm) contact hole
UL rated 94VO polyamide
2.5 in.-lbs. max.
Brass, tin-plated
52
-
*
227
-
006
-
L
* For filter elements with additional capacitance values,
consult factory.
Terminal Block type
227
U.S. pin spacing
228
Metric pin spacing
Number of
Low profile
terminals
sizing
002

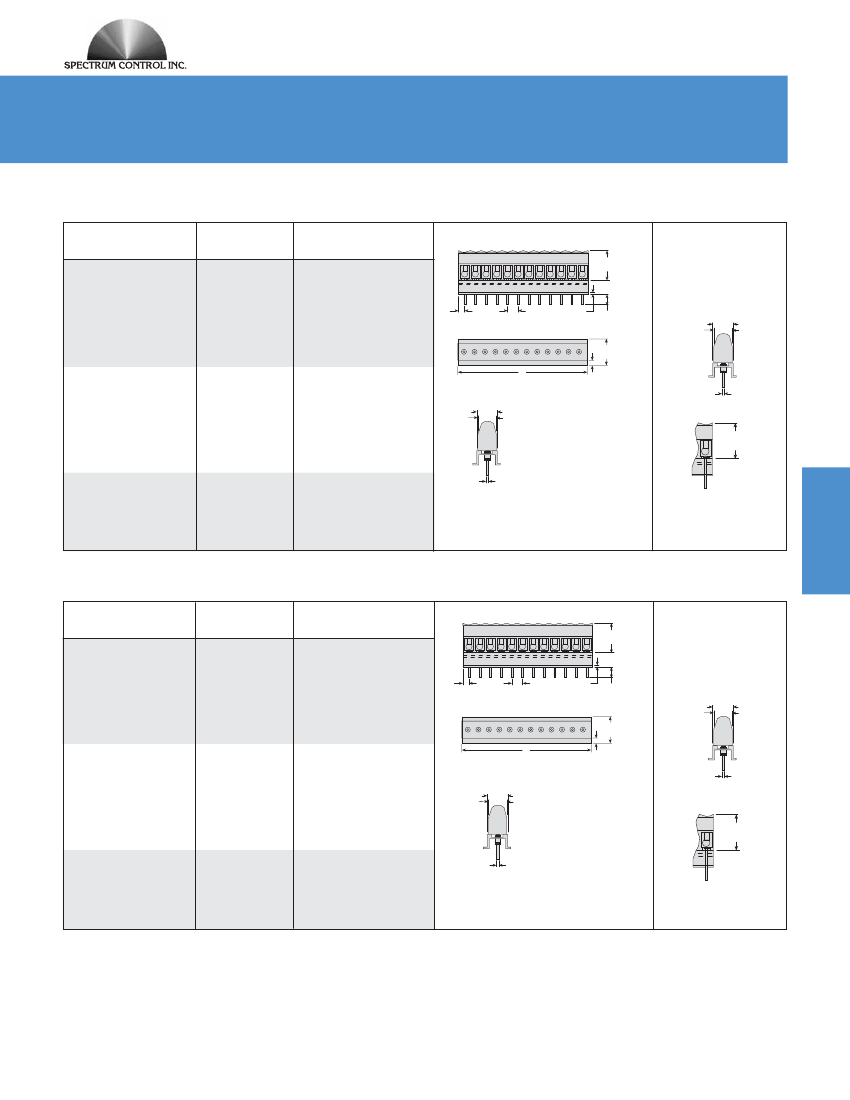

- 2 terminals See page 126
thru
012
- 12 terminals
*
Replace “–” with “F” for RoHS complaint version
125
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
