MB814400-80PJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MB814400-80PJ

MB814400-80PJ: DescriptionFast Page DRAM, 1MX4, 80ns, CMOS, PDSO20,; Categorystorage storage; File Size796KB，22 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MB814400-80PJ Overview

Fast Page DRAM, 1MX4, 80ns, CMOS, PDSO20,

MB814400-80PJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	FUJITSU
Parts packaging code	LCC
package instruction	SOJ, SOJ20/26,.4
Contacts	26/20
Reach Compliance Code	compliant
Maximum access time	80 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J20
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	4
Number of terminals	20
word count	1048576 words
character code	1000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ20/26,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
self refresh	NO
Maximum standby current	0.001 A
Maximum slew rate	0.075 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

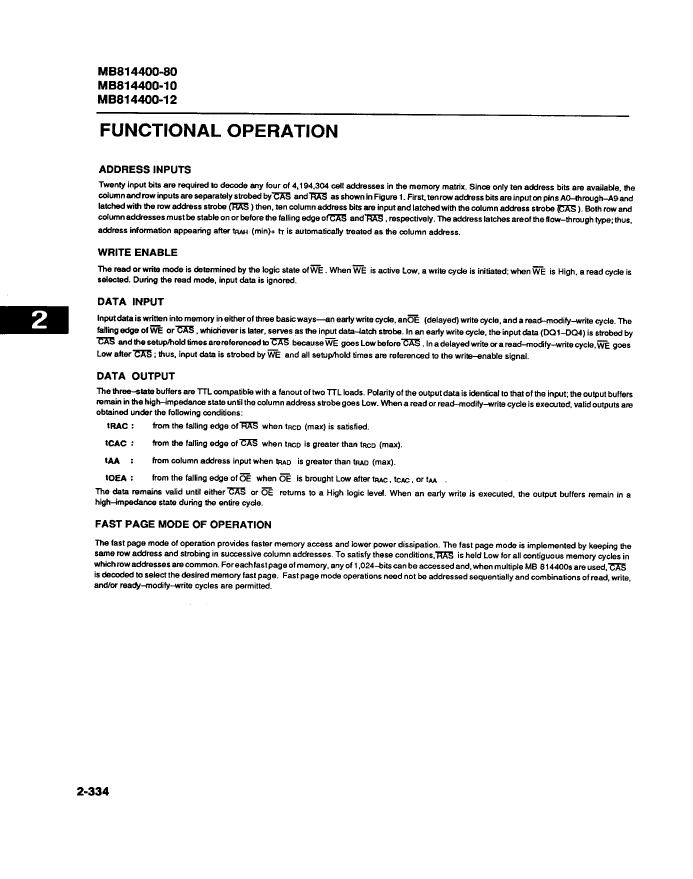

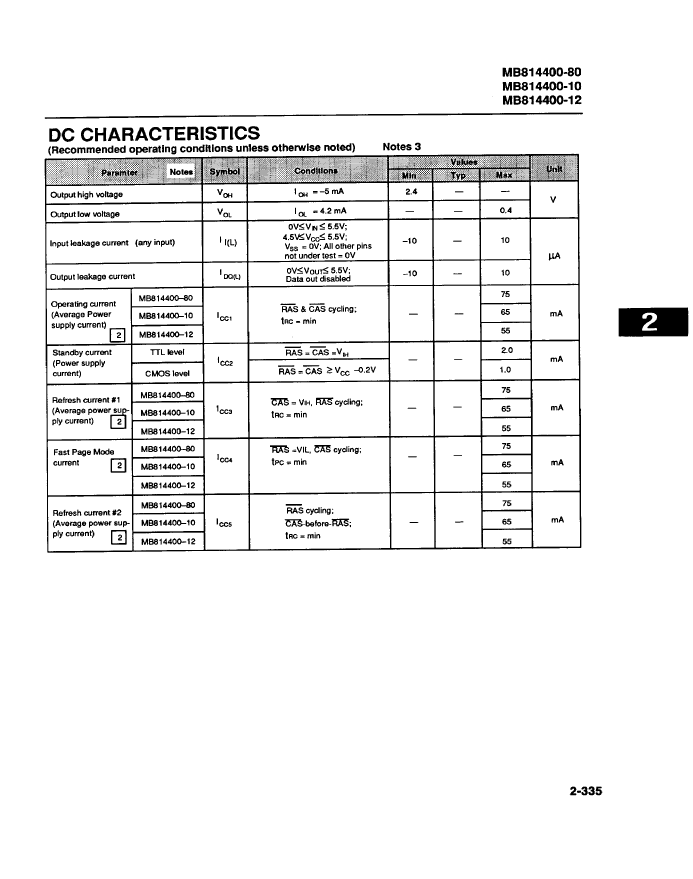

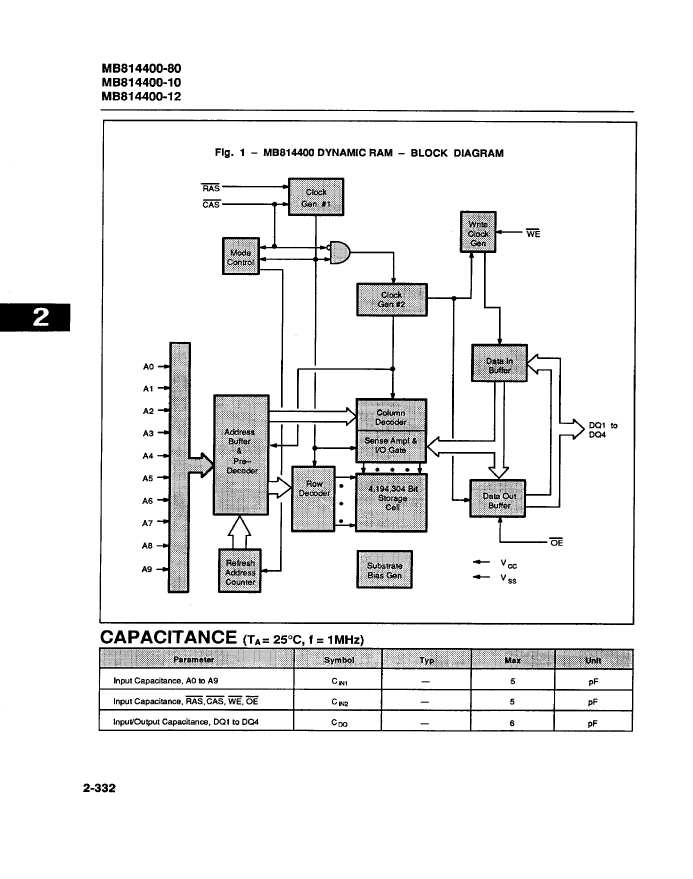

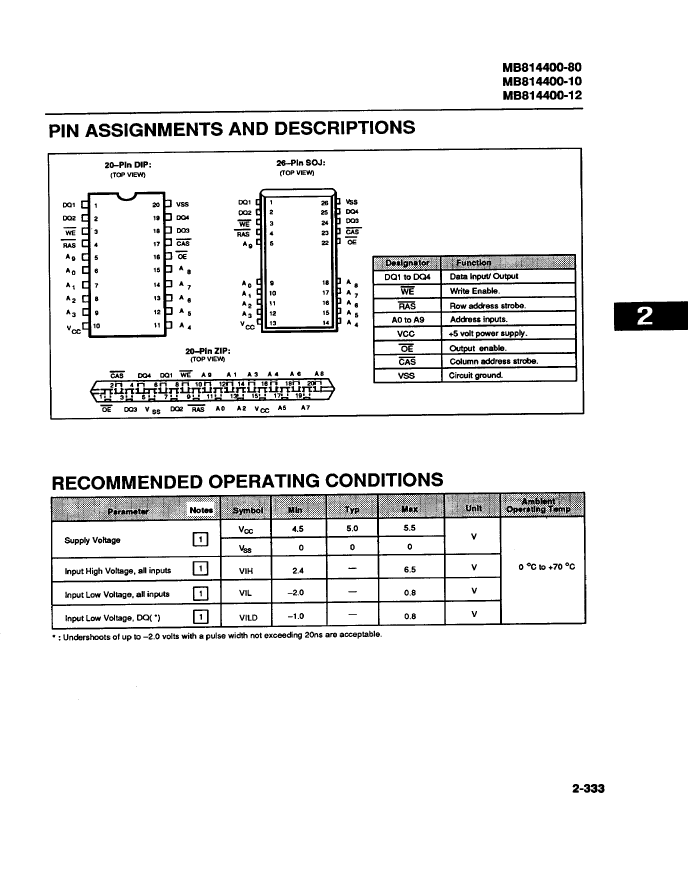

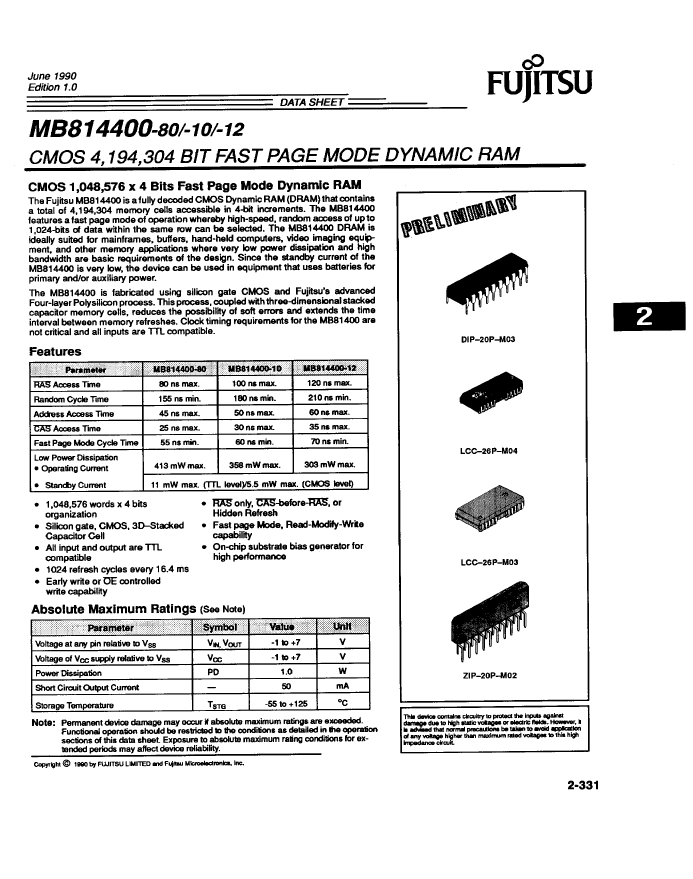

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

MB814400-80PJ Related Products

	MB814400-80PJ	MB814400-80PSZ	MB814400-80PJN	MB814400-80P	MB814400-12PJN	MB814400-12PJ	MB814400-12PSZ	MB814400-10PJN
Description	Fast Page DRAM, 1MX4, 80ns, CMOS, PDSO20,	Fast Page DRAM, 1MX4, 80ns, CMOS, PZIP20,	Fast Page DRAM, 1MX4, 80ns, CMOS, PDSO20,	Fast Page DRAM, 1MX4, 80ns, CMOS, PDIP20,	Fast Page DRAM, 1MX4, 120ns, CMOS, PDSO20,	Fast Page DRAM, 1MX4, 120ns, CMOS, PDSO20,	Fast Page DRAM, 1MX4, 120ns, CMOS, PZIP20,	Fast Page DRAM, 1MX4, 100ns, CMOS, PDSO20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	LCC	ZIP	LCC	DIP	LCC	LCC	ZIP	LCC
package instruction	SOJ, SOJ20/26,.4	ZIP, ZIP20,.1	SOJ, SOJ20/26,.34	DIP, DIP20,.3	SOJ, SOJ20/26,.34	SOJ, SOJ20/26,.4	ZIP, ZIP20,.1	SOJ, SOJ20/26,.34
Contacts	26/20	20	26/20	20	26/20	26/20	20	26/20
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum access time	80 ns	80 ns	80 ns	80 ns	120 ns	120 ns	120 ns	100 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J20	R-PZIP-T20	R-PDSO-J20	R-PDIP-T20	R-PDSO-J20	R-PDSO-J20	R-PZIP-T20	R-PDSO-J20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	4	4	4	4	4	4	4	4
Number of terminals	20	20	20	20	20	20	20	20
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4	1MX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	ZIP	SOJ	DIP	SOJ	SOJ	ZIP	SOJ
Encapsulate equivalent code	SOJ20/26,.4	ZIP20,.1	SOJ20/26,.34	DIP20,.3	SOJ20/26,.34	SOJ20/26,.4	ZIP20,.1	SOJ20/26,.34
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024	1024	1024
self refresh	NO	NO	NO	NO	NO	NO	NO	NO
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.075 mA	0.075 mA	0.075 mA	0.075 mA	0.055 mA	0.055 mA	0.055 mA	0.065 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	ZIG-ZAG	DUAL	DUAL	DUAL	DUAL	ZIG-ZAG	DUAL
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	-	-	-	FUJITSU
Base Number Matches	1	1	1	1	1	1	1	-
