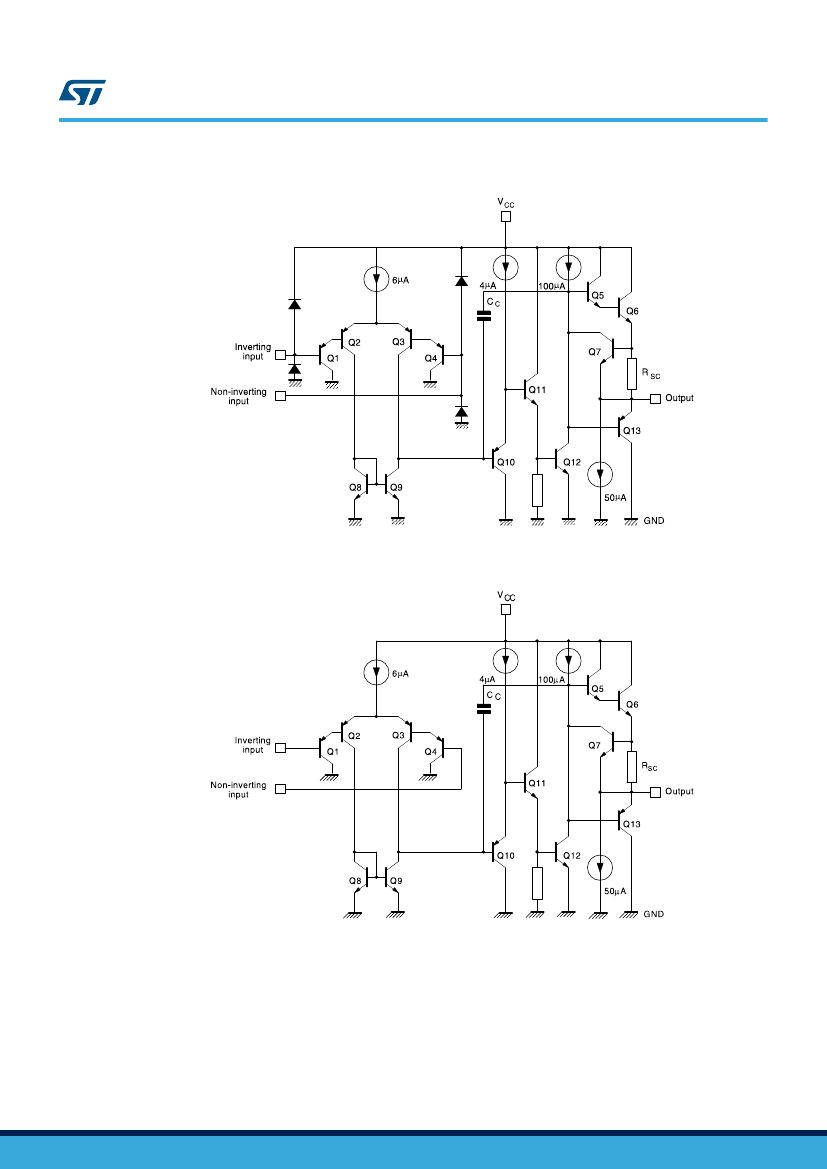

Basic information of LM324WDT amplifier:
LM324WDT is an OPERATIONAL AMPLIFIER from STMicroelectronics. Commonly used packaging methods are SOP, SOP14,.25
LM324WDT amplifier core information:
The minimum operating temperature of the LM324WDT is and the maximum operating temperature is 70 °C. Its peak reflow temperature is 260°C. Its maximum bias current at 25°C is: 0.1 µA. Its maximum average bias current is 0.2 µA.
How to simply check the efficiency of an amplifier? Looking at its slew rate, the LM324WDT has a nominal slew rate of 0.4 V/us. The maximum slew rate of the LM324WDT given by the manufacturer is 3 mA. Its minimum voltage gain is 25000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LM324WDT gain becomes 0.707 times the low-frequency gain is 1300 kHz.
The nominal supply voltage of LM324WDT is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of LM324WDT is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM324WDT:
The width of LM324WDT is: 3.9 mm and the length is 8.65 mm. The LM324WDT has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14
LM324WDT amplifier additional information:
LM324WDT adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LM324WDT is: YES. Its temperature grade is: COMMERCIAL. And its humidity sensitivity level is: 1.
It is a micropower amplifier. The corresponding JESD-30 code is: R-PDSO-G14. The corresponding JESD-609 code is: e4. The packaging code of LM324WDT is: SOP. The materials used in the LM324WDT package are mostly PLASTIC/EPOXY.
The package shape is RECTANGULAR. The LM324WDT package pin forms are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.
Basic information of LM324WDT amplifier:
LM324WDT is an OPERATIONAL AMPLIFIER from STMicroelectronics. Commonly used packaging methods are SOP, SOP14,.25
LM324WDT amplifier core information:
The minimum operating temperature of the LM324WDT is and the maximum operating temperature is 70 °C. Its peak reflow temperature is 260°C. Its maximum bias current at 25°C is: 0.1 µA. Its maximum average bias current is 0.2 µA.
How to simply check the efficiency of an amplifier? Looking at its slew rate, the LM324WDT has a nominal slew rate of 0.4 V/us. The maximum slew rate of the LM324WDT given by the manufacturer is 3 mA. Its minimum voltage gain is 25000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LM324WDT gain becomes 0.707 times the low-frequency gain is 1300 kHz.
The nominal supply voltage of LM324WDT is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of LM324WDT is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM324WDT:
The width of LM324WDT is: 3.9 mm and the length is 8.65 mm. The LM324WDT has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14
LM324WDT amplifier additional information:
LM324WDT adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LM324WDT is: YES. Its temperature grade is: COMMERCIAL. And its humidity sensitivity level is: 1.
It is a micropower amplifier. The corresponding JESD-30 code is: R-PDSO-G14. The corresponding JESD-609 code is: e4. The packaging code of LM324WDT is: SOP. The materials used in the LM324WDT package are mostly PLASTIC/EPOXY.
The package shape is RECTANGULAR. The LM324WDT package pin forms are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.
| Parameter Name | Attribute value |
| Brand Name | STMicroelectronics |
| Maker | STMicroelectronics |
| Parts packaging code | SOIC |
| package instruction | SOP, SOP14,.25 |
| Contacts | 14 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 10 weeks |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.2 µA |
| Maximum bias current (IIB) at 25C | 0.1 µA |
| Nominal Common Mode Rejection Ratio | 80 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 5000 µV |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e4 |
| length | 8.65 mm |
| low-dissonance | NO |
| micropower | YES |
| Humidity sensitivity level | 1 |
| Negative supply voltage upper limit | |
| Nominal Negative Supply Voltage (Vsup) | |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP14,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| method of packing | TAPE AND REEL |
| Peak Reflow Temperature (Celsius) | 260 |
| power supply | 3/30/+-1.5/+-15 V |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Nominal slew rate | 0.4 V/us |
| Maximum slew rate | 3 mA |
| Supply voltage upper limit | 32 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 1300 kHz |
| Minimum voltage gain | 25000 |
| width | 3.9 mm |
| Base Number Matches | 1 |
| LM324WDT | LM224PT | LM324EDT | LM324EPT | LM324VDT | |
|---|---|---|---|---|---|
| Description | Low power, low input bias current | Low power, low input bias current | Low power, low input bias current | Low power, low input bias current | |
| Brand Name | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Maker | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Reach Compliance Code | compliant | compliant | compliant | compliant | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Parts packaging code | SOIC | TSSOP | - | - | SOIC |
| package instruction | SOP, SOP14,.25 | TSSOP, TSSOP14,.25 | SOP, | - | SOP, |
| Contacts | 14 | 14 | 14 | - | 14 |
| ECCN code | EAR99 | EAR99 | - | - | EAR99 |
| Maximum average bias current (IIB) | 0.2 µA | 0.3 µA | 0.2 µA | - | 0.3 µA |
| Nominal Common Mode Rejection Ratio | 80 dB | 80 dB | 80 dB | - | 80 dB |
| Maximum input offset voltage | 5000 µV | 7000 µV | 9000 µV | - | 9000 µV |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | - | R-PDSO-G14 |
| length | 8.65 mm | 5 mm | 8.65 mm | - | 8.65 mm |
| Number of functions | 4 | 4 | 4 | - | 4 |
| Number of terminals | 14 | 14 | 14 | - | 14 |
| Maximum operating temperature | 70 °C | 105 °C | 70 °C | - | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - | PLASTIC/EPOXY |
| encapsulated code | SOP | TSSOP | SOP | - | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE | - | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 | NOT SPECIFIED | NOT SPECIFIED | - | - |
| Certification status | Not Qualified | Not Qualified | - | - | Not Qualified |
| Maximum seat height | 1.75 mm | 1.2 mm | 1.75 mm | - | 1.75 mm |
| Nominal slew rate | 0.4 V/us | 0.4 V/us | 0.4 V/us | - | 0.4 V/us |
| Supply voltage upper limit | 32 V | 32 V | 32 V | - | 32 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | - | 5 V |
| surface mount | YES | YES | YES | - | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | - | BIPOLAR |
| Temperature level | COMMERCIAL | INDUSTRIAL | COMMERCIAL | - | COMMERCIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | - | GULL WING |
| Terminal pitch | 1.27 mm | 0.65 mm | 1.27 mm | - | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | - | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | - |
| Nominal Uniform Gain Bandwidth | 1300 kHz | 1300 kHz | 1300 kHz | - | 1300 kHz |
| width | 3.9 mm | 4.4 mm | 3.9 mm | - | 3.9 mm |
