BX2462T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> BX2462T

BX2462T: DescriptionTelecom Transformer; CategoryPower management transformer; File Size393KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

BX2462T Overview

Telecom Transformer

BX2462T Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1, COMPATIBLE WITH CPT73SX01 CPE CHIPSET
high	12.3 mm
length	17.4 mm
Manufacturer's serial number	BX2462
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	17.4mm X 13.3mm X 12.3mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	13.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

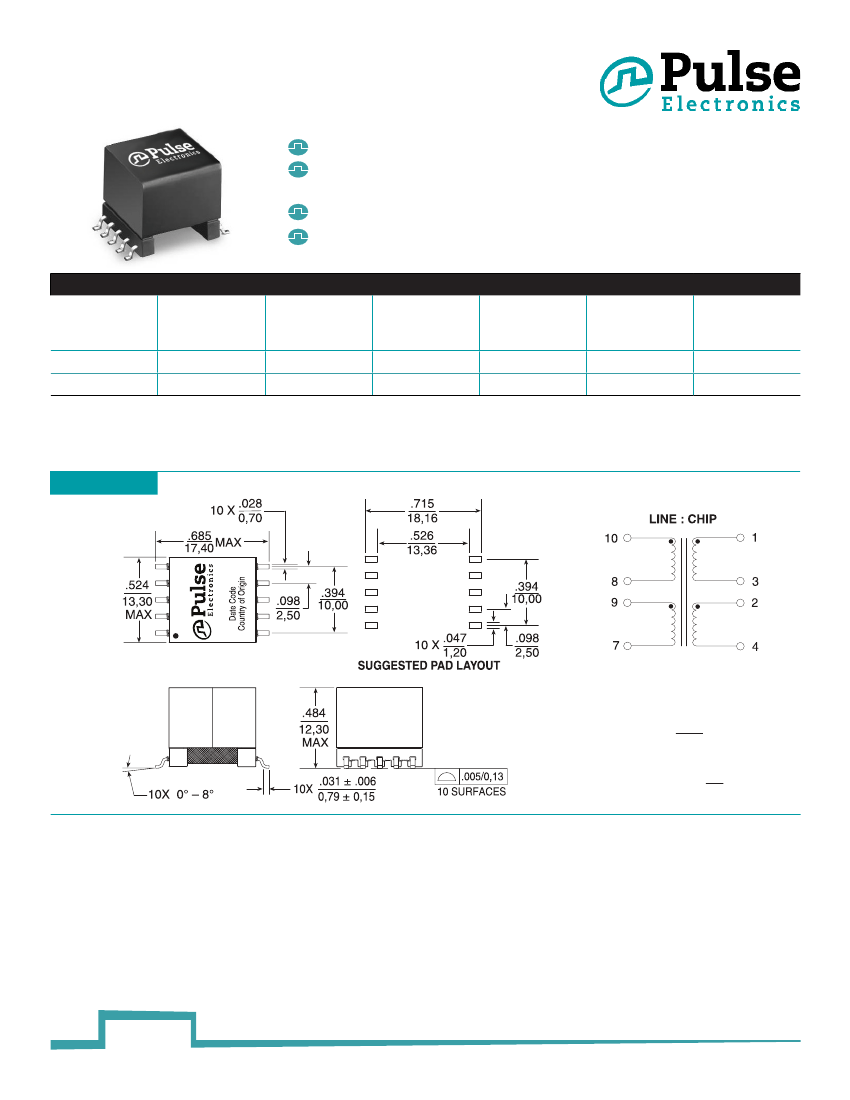

ADSL Line Transformer

For Use with Centillium Padilla Chipset

Matched to Centillium Padilla CPT73SX01 CPE chipsets

Designed to meet EN60950 supplementary insulation

requirements for working voltages up to 250Vrms

Excellent THD performance

Industry standard surface mount footprint

Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C

Part

Number

BX2460

BX2462

Turns Ratio

Ratio

(Line:Chip)

2.5 : 1

1:1

OCL

Primary

(mH

±10%)

5.0

DCR Chip

(1-4 w/2-3 short)

(Ω MAX)

1.2

3.6

DCR Line

(10-7 w/8-9 short)

(Ω MAX)

2.6

3.3

DCR Chip

(1-4 w/2-3 short)

(Ω MAX)

1500

THD

(dB MIN)

-88

-85

Notes:

Optional Tape & Reel packaging can be ordered for either part by adding a

“T”

suffix to the part number (ex: BX2460T).

BX2460 - THD is measured at 30kHz, 15Vpk-pk.

BX2462 - THD is measured at 30kHz, 7Vpk-pk.

Mechanical

Schematic

BX2460 / BX2462

BX24XX

Weight

......................6.2 grams

Tape & Reel

..................150/reel

Tray

................................60/tray

Inches

Dimensions:

Unless otherwise specified,

all tolerances are

.010

0,25

For More Information

Pulse Worldwide

Headquarters

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

Tel: 858 674 8100

Fax: 858 674 8262

Pulse Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Pulse China Headquarters

B402, Shenzhen Academy of

Aerospace Technology Bldg.

10th Kejinan Road

High-Tech Zone

Nanshan District

Shenzen, PR China 518057

Tel: 86 755 33966678

Fax: 86 755 33966700

Pulse North China

Room 2704/2705

Super Ocean Finance Ctr.

2067 Yan An Road West

Shanghai 200336

China

Tel: 86 21 62787060

Fax: 86 2162786973

Pulse South Asia

135 Joo Seng Road

#03-02

PM Industrial Bldg.

Singapore 368363

Tel: 65 6287 8998

Fax: 65 6287 8998

Pulse North Asia

3F, No. 198

Zhongyuan Road

Zhongli City

Taoyuan County 320

Taiwan R. O. C.

Tel: 886 3 4356768

Fax: 886 3 4356823 (Pulse)

Fax: 886 3 4356820 (FRE)

Tel: 49 7032 78060

Fax: 49 7032 7806 135

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be

pulseelectronics.com

B828.A (02/12)

BX2462T Related Products

	BX2462T	BX2460T
Description	Telecom Transformer	Telecom Transformer
Maker	Pulse Electronics	Pulse Electronics
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1, COMPATIBLE WITH CPT73SX01 CPE CHIPSET	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 2.5:1, COMPATIBLE WITH CPT73SX01 CPE CHIPSET
high	12.3 mm	12.3 mm
length	17.4 mm	17.4 mm
Manufacturer's serial number	BX2462	BX2460
Installation features	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
method of packing	TAPE & REEL	TAPE & REEL
physical size	17.4mm X 13.3mm X 12.3mm	17.4mm X 13.3mm X 12.3mm
surface mount	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	13.3 mm	13.3 mm
Base Number Matches	1	1
