3930-2051 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3930-2051

Preview

3930-2051: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

3930-2051 Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking

3930-2051 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	0.317 inch
subject depth	0.63 inch
body length	0.824 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
maximum insertion force	19.5712 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	3930
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	5
Evacuation force-minimum value	1.946 N
Base Number Matches	1

Preview

Download Datasheet

View All

CRIMP TERMINAL HOUSING

3930 SERIES.

3.96mm(0.156”). With Locking Ramp

Features



Available in 2 through 15 circuits

Insulator Material: Nylon 6/6 UL 94V-2

Accepts 3933 and 3934 series crimp terminals

Mates with 3963, 3966, 3968, 3986, 3987 and 3988 series headers



Moulded pull tab

Moulded in locking arm for terminal retention

Polarisation through varied centre spacing between

circuit 1 and 2

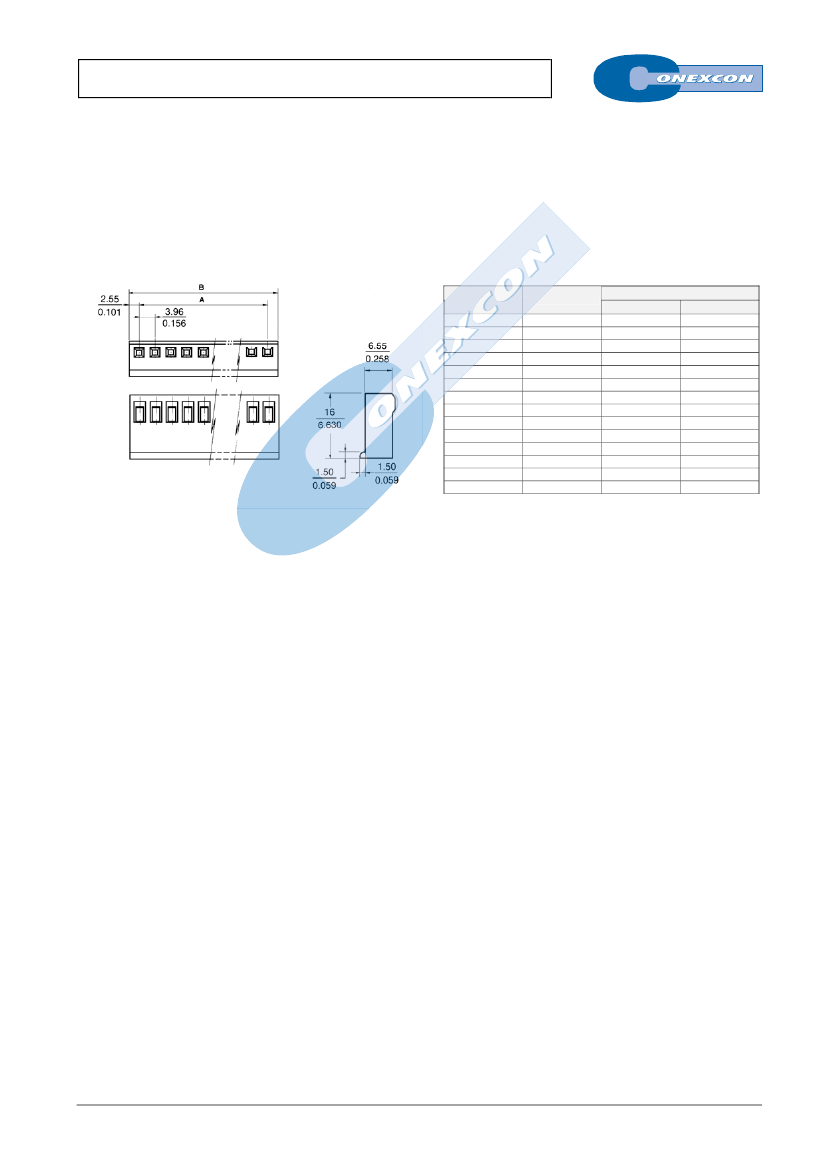

Ordering and Dimensional Information

Dimensional Information

Circuit Size

02

03

04

05

06

07

08

09

10

11

12

13

14

15

Part Number

3930- 2021

3930- 2031

3930- 2041

3930- 2051

3930- 2061

3930- 2071

3930- 2081

3930- 2091

3930- 2101

3930- 2111

3930- 2121

3930- 2131

3930- 2141

3930- 2151

Dimensions

A

3,96(0,156)

7,92(0,312)

11,88(0,468)

15,84(0,624)

19,80(0,780)

23,76(0,935)

27,72(1,091)

31,68(1,247)

35,64(1,403)

39,60(1,559)

43,56(1,715)

47,52(1,871)

51,48(2,027)

55,44(2,183)

B

9,06(0,357)

13,02(0,513)

16,98(0,669)

20,94(0,824)

24,90(0,980)

28,86(1,136)

32,82(1,292)

36,78(1,448)

40,74(1,604)

44,70(1,760)

48,66(1,916)

52,62(2,072)

56,58(2,228)

60,54(2,383)

FULL LINE CATALOGUE

F-XX

3930-2051 Related Products

	3930-2051	M210063SPN150.0000MHZ	3930-2071	3930-2111	1812A2000222FBT	1825Y1K20182JXR	3930-2131	3930-2141
Description	Board Connector, 5 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking	Oscillator, 150MHz Min, 1400MHz Max, 150MHz Nom,	Board Connector, 7 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking	Board Connector, 11 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking	Ceramic Capacitor, Multilayer, Ceramic, 200V, 1% +Tol, 1% -Tol, BX, 15% TC, 0.0022uF, Surface Mount, 1812, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 1200V, X7R, -/+15ppm/Cel TC, 0.0018uF, 1825	Board Connector, 13 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking	Board Connector, 14 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking
Is it Rohs certified?	conform to	conform to	conform to	conform to	incompatible	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	compliant	unknown	unknown
Maximum operating temperature	85 °C	70 °C	85 °C	85 °C	125 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-20 °C	-40 °C	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C
body width	0.317 inch	-	0.317 inch	0.317 inch	-	-	0.317 inch	0.317 inch
subject depth	0.63 inch	-	0.63 inch	0.63 inch	-	-	0.63 inch	0.63 inch
body length	0.824 inch	-	1.136 inch	1.76 inch	-	-	2.072 inch	2.228 inch
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	-	-	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	-	PREASSEM CONN	PREASSEM CONN	-	-	PREASSEM CONN	PREASSEM CONN
Contact point gender	FEMALE	-	FEMALE	FEMALE	-	-	FEMALE	FEMALE
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	-	20 mΩ	20 mΩ	-	-	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	-	-	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	-	1500VAC V	1500VAC V	-	-	1500VAC V	1500VAC V
Durability	25 Cycles	-	25 Cycles	25 Cycles	-	-	25 Cycles	25 Cycles
maximum insertion force	19.5712 N	-	19.5712 N	19.5712 N	-	-	19.5712 N	19.5712 N
Insulation resistance	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	-	-	1000000000 Ω	1000000000 Ω
insulator material	NYLON	-	NYLON	NYLON	-	-	NYLON	NYLON
Manufacturer's serial number	3930	-	3930	3930	X7R	-	3930	3930
Plug contact pitch	0.156 inch	-	0.156 inch	0.156 inch	-	-	0.156 inch	0.156 inch
Installation option 1	LOCKING	-	LOCKING	LOCKING	-	-	LOCKING	LOCKING
Installation type	CABLE	-	CABLE	CABLE	-	-	CABLE	CABLE
Number of rows loaded	1	-	1	1	-	-	1	1
polarization key	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	-	-	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	5 A	-	5 A	5 A	-	-	5 A	5 A
Guideline	UL	-	UL	UL	IECQ-CECC	-	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	-	CRIMP	CRIMP	-	-	CRIMP	CRIMP
Total number of contacts	5	-	7	11	-	-	13	14
Evacuation force-minimum value	1.946 N	-	1.946 N	1.946 N	-	-	1.946 N	1.946 N
