54HCU04/BCAJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54HCU04/BCAJC

54HCU04/BCAJC: DescriptionIC,LOGIC GATE,HEX INVERTER,HC-CMOS,DIP,14PIN,CERAMIC; Categorylogic logic; File Size230KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54HCU04/BCAJC Overview

IC,LOGIC GATE,HEX INVERTER,HC-CMOS,DIP,14PIN,CERAMIC

54HCU04/BCAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	INVERTER
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

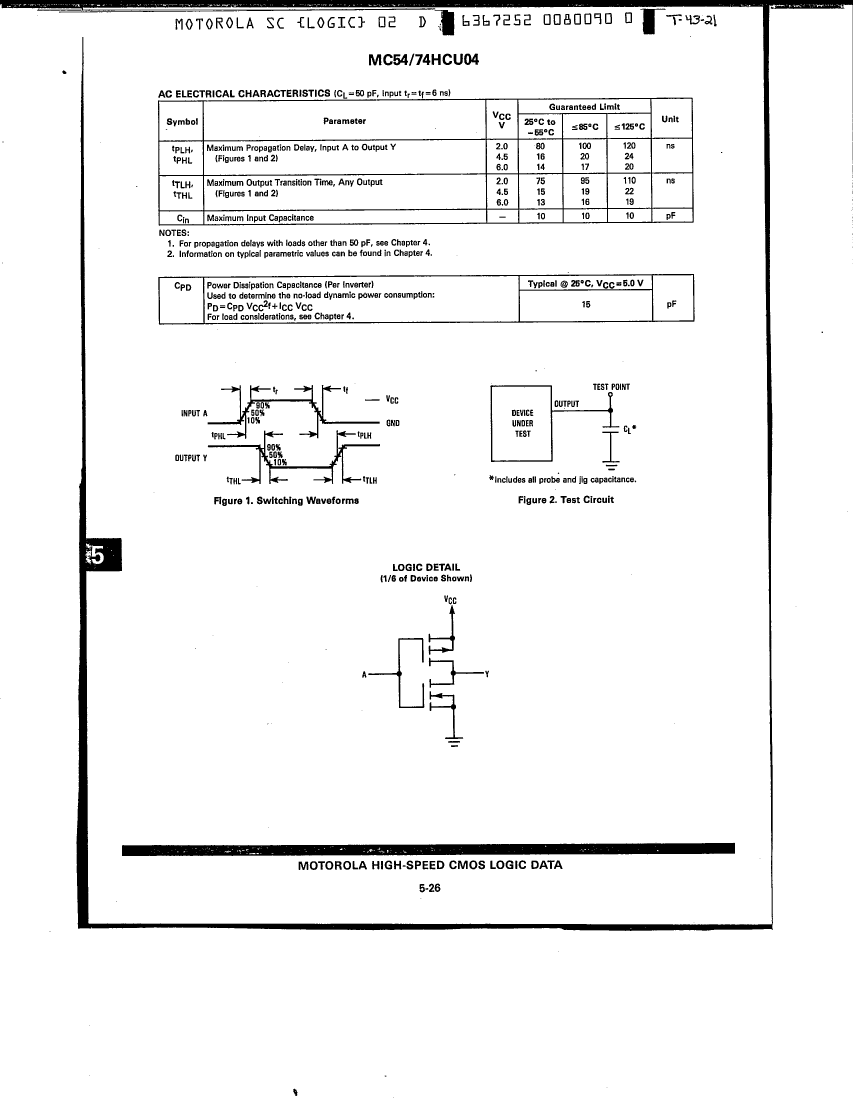

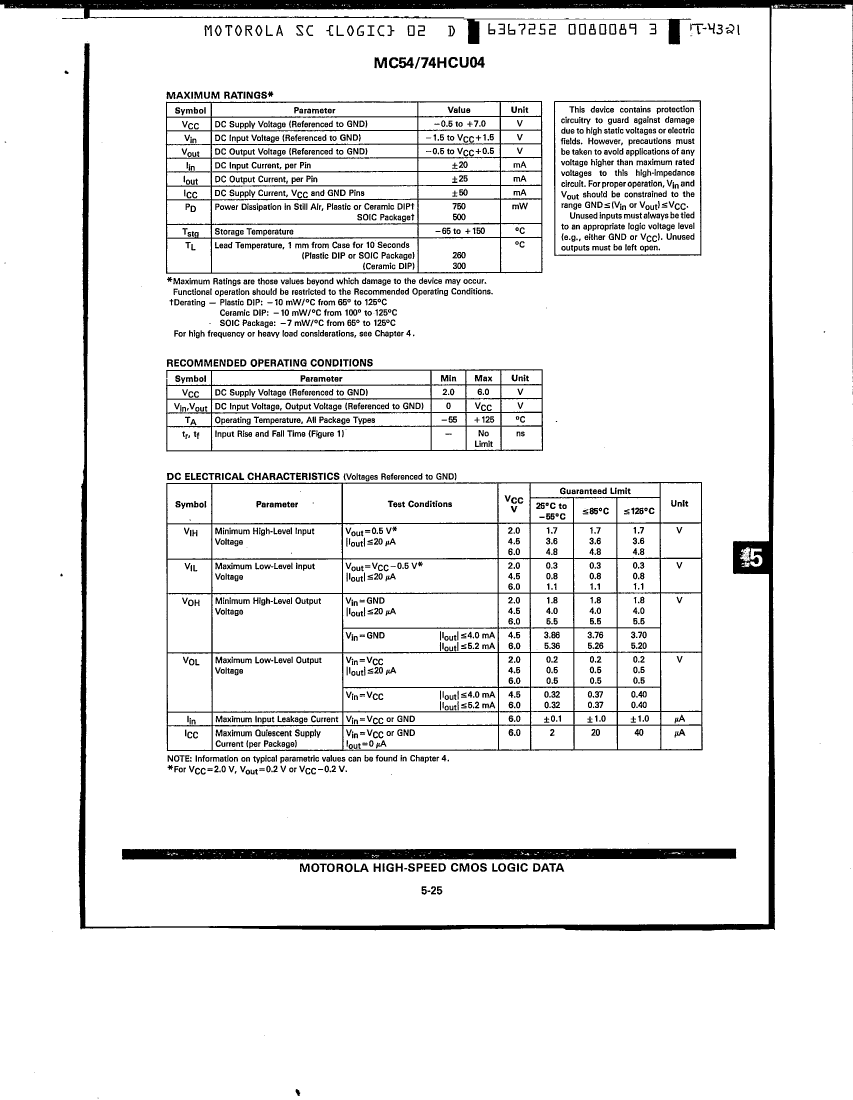

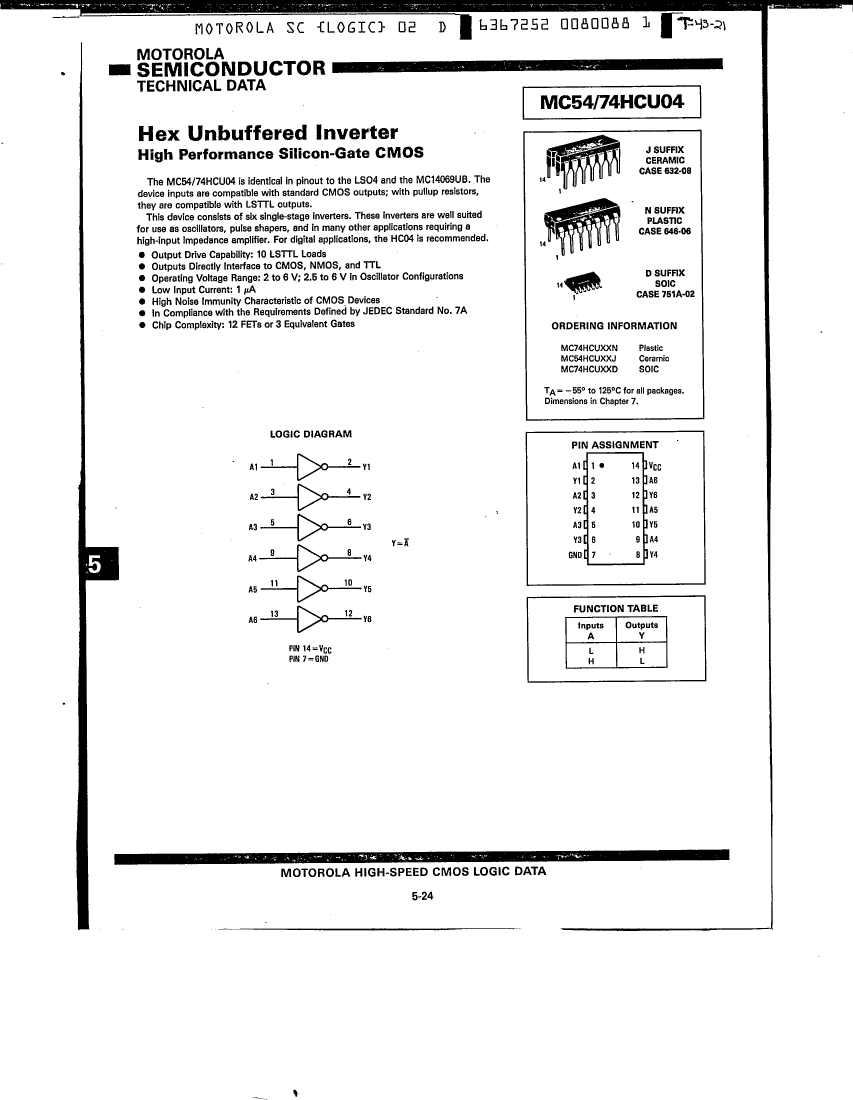

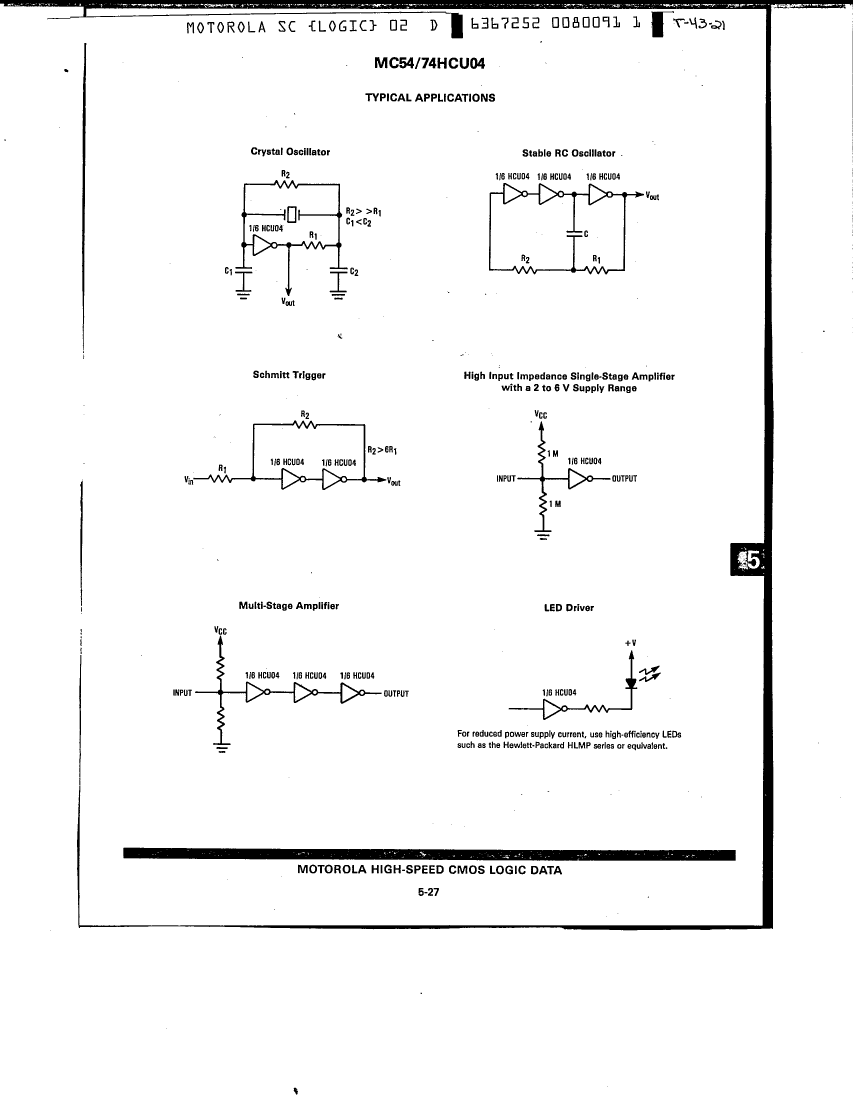

Preview

Download Datasheet

View All

54HCU04/BCAJC Related Products

	54HCU04/BCAJC	MC74HCU04DD	MC74HCU04DDS	MC54HCU04JD	MC54HCU04JDS	MC54HCU04J	MC74HCU04DR2
Description	IC,LOGIC GATE,HEX INVERTER,HC-CMOS,DIP,14PIN,CERAMIC	IC,LOGIC GATE,HEX INVERTER,HC-CMOS,SOP,14PIN,PLASTIC	IC,LOGIC GATE,HEX INVERTER,HC-CMOS,SOP,14PIN,PLASTIC	IC,LOGIC GATE,HEX INVERTER,HC-CMOS,DIP,14PIN,CERAMIC	IC,LOGIC GATE,HEX INVERTER,HC-CMOS,DIP,14PIN,CERAMIC	IC,LOGIC GATE,HEX INVERTER,HC-CMOS,DIP,14PIN,CERAMIC	IC,LOGIC GATE,HEX INVERTER,HC-CMOS,SOP,14PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	DIP, DIP14,.3	SOP, SOP14,.25	SOP, SOP14,.25	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T14	R-PDSO-G14	R-PDSO-G14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-PDSO-G14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	70 °C	70 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP	DIP	DIP	SOP
Encapsulate equivalent code	DIP14,.3	SOP14,.25	SOP14,.25	DIP14,.3	DIP14,.3	DIP14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO
surface mount	NO	YES	YES	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	-	-	-	Not Qualified	Not Qualified
Load capacitance (CL)	-	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
MaximumI(ol)	-	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Prop。Delay @ Nom-Sup	-	20 ns	20 ns	24 ns	24 ns	24 ns	24 ns
