54F190FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F190FMQB

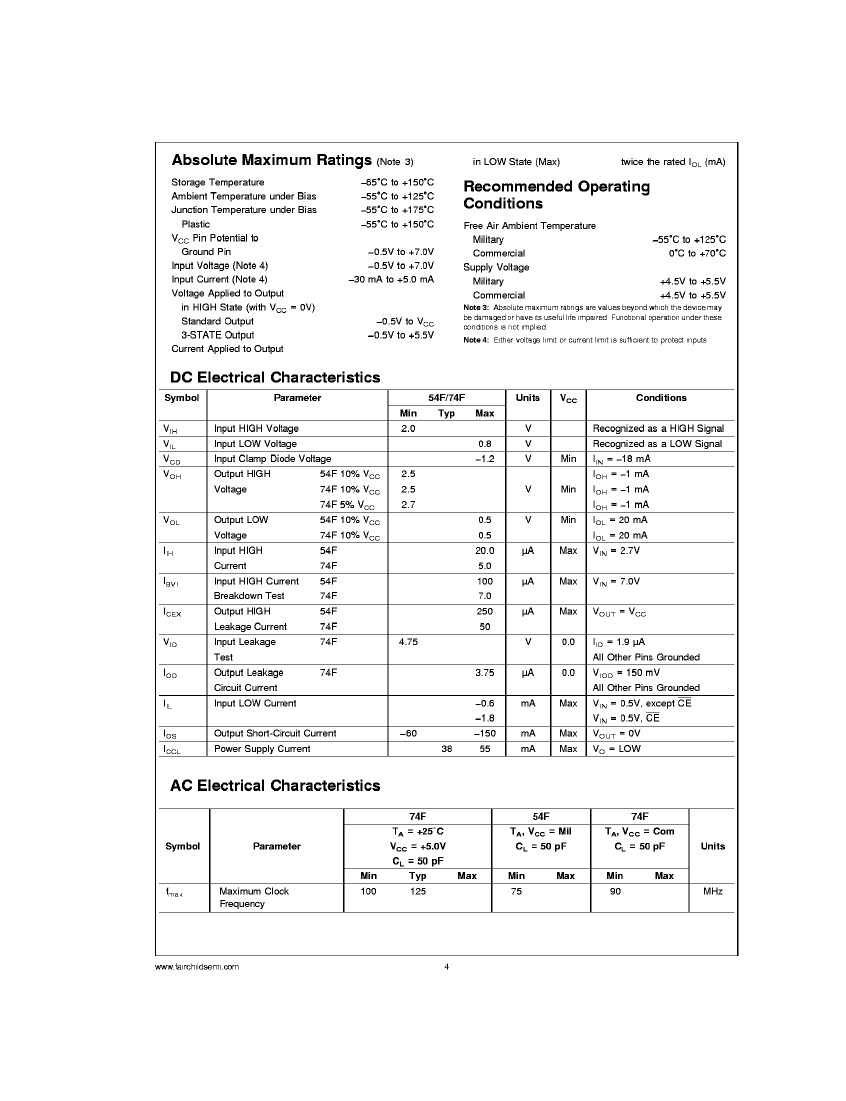

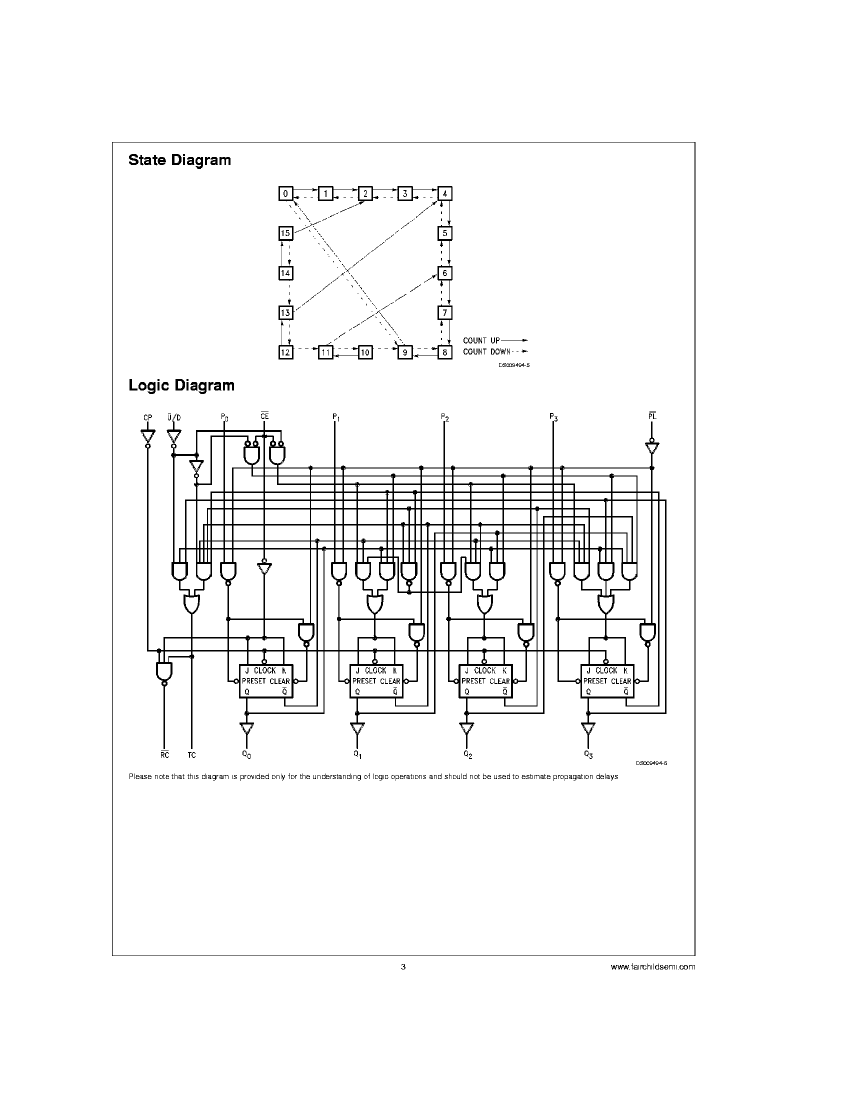

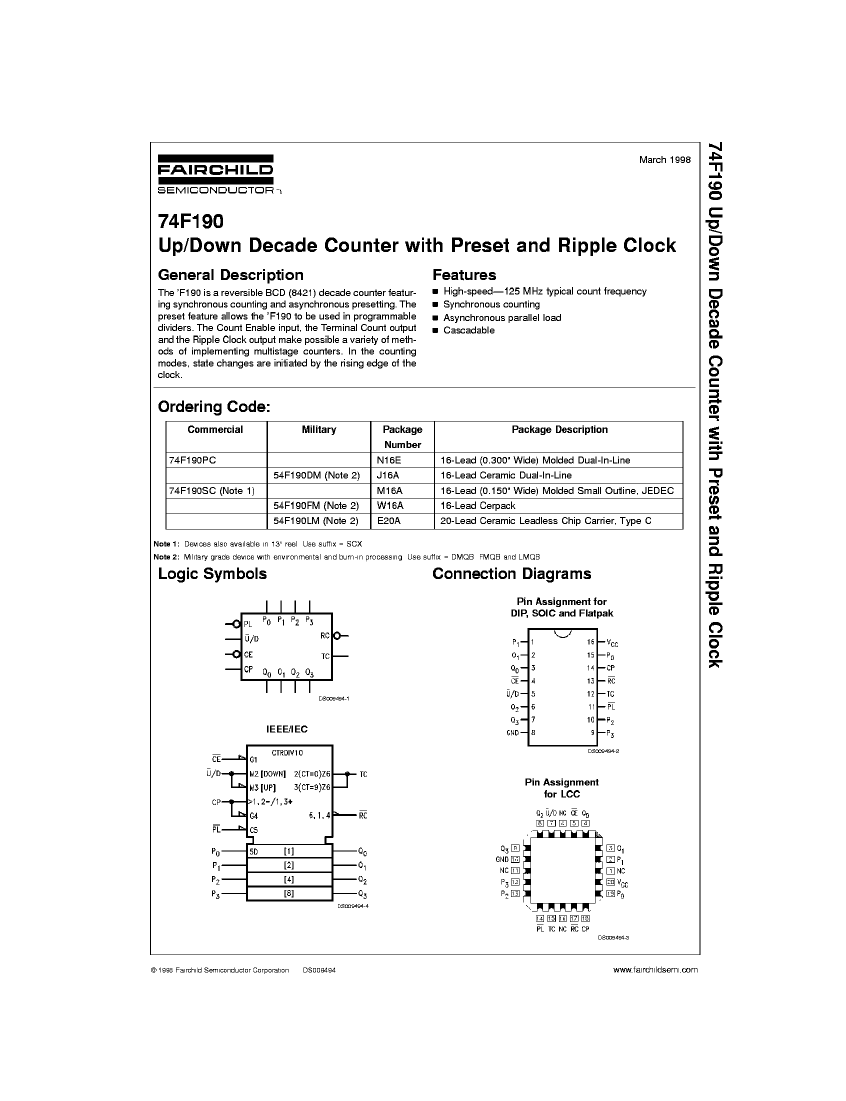

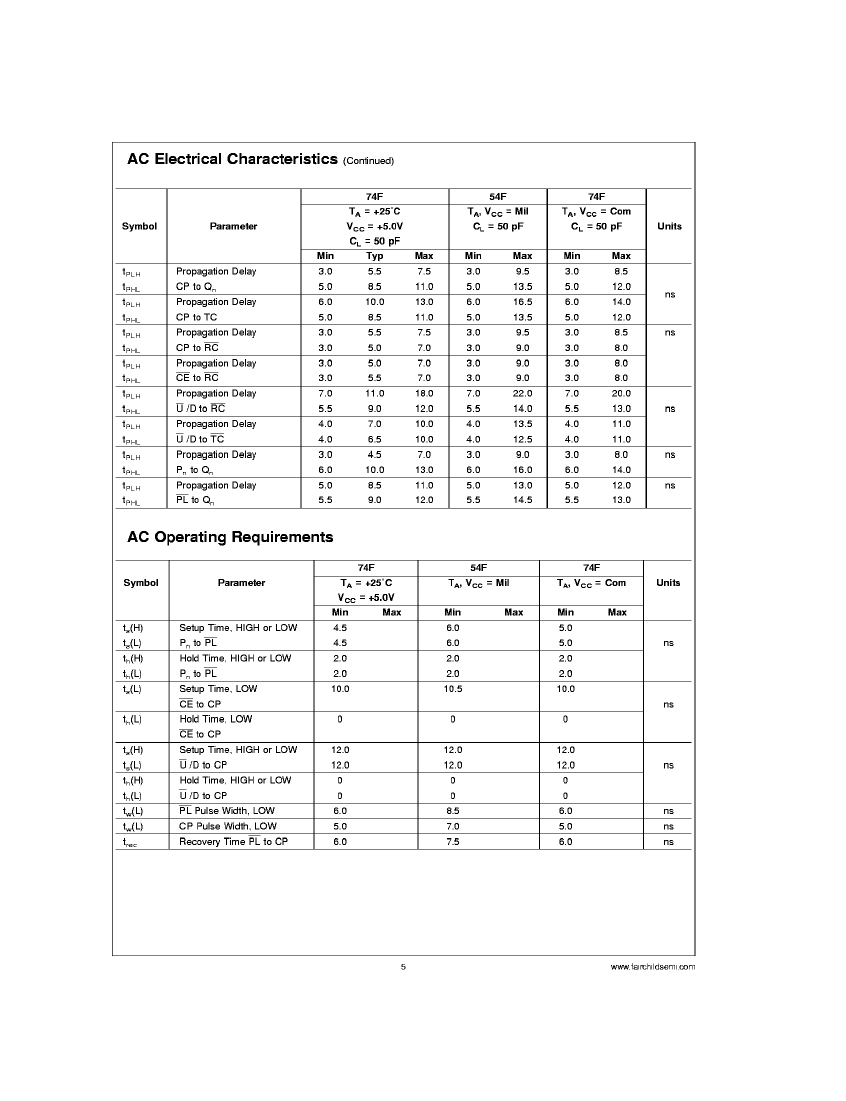

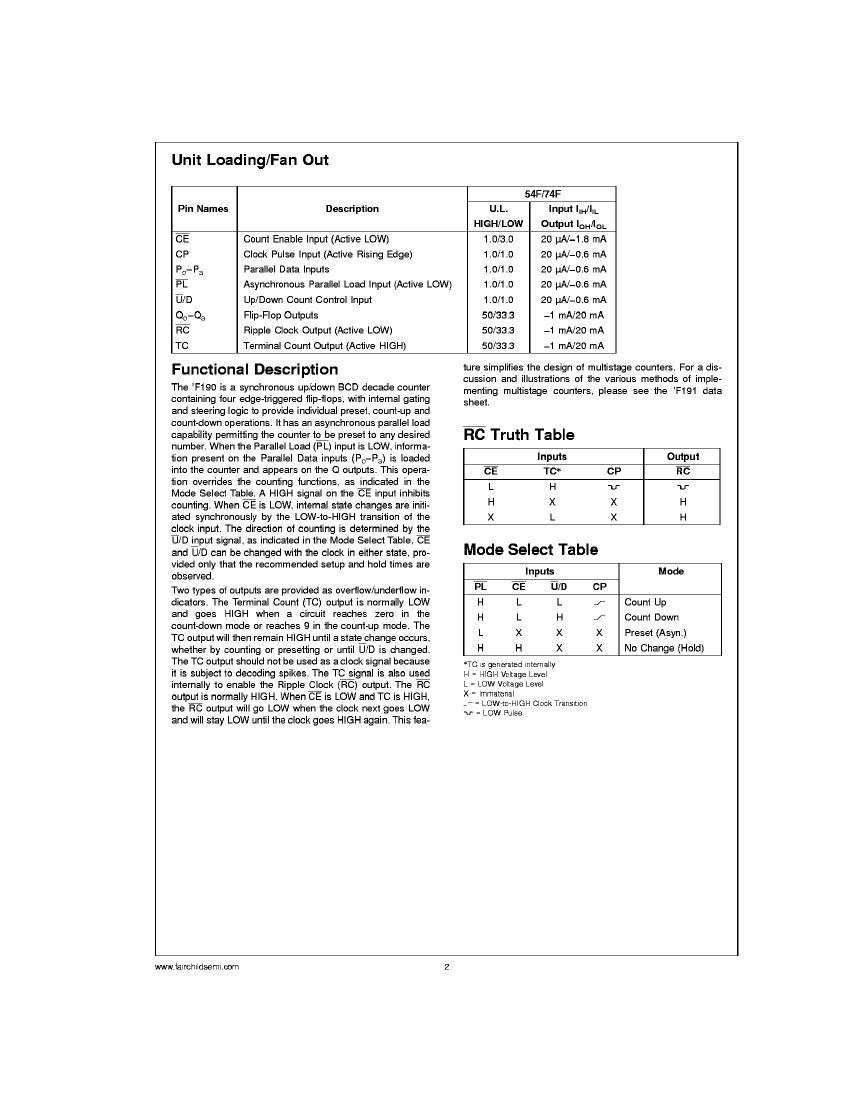

54F190FMQB: DescriptionDecade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDFP16, CERPACK-16; Categorylogic logic; File Size159KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54F190FMQB Overview

Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDFP16, CERPACK-16

54F190FMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	CERPACK-16
Contacts	16
Reach Compliance Code	compliant
Counting direction	BIDIRECTIONAL
series	F/FAST
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.6645 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	75000000 Hz
MaximumI(ol)	0.02 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	55 mA
propagation delay (tpd)	13.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	6.604 mm
minfmax	75 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

54F190FMQB Related Products

	54F190FMQB	54F190LM	54F190FM	54F190DMQB	54F190DM	54F190LMQB
Description	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDFP16, CERPACK-16	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CQCC20, CERAMIC, LCC-20	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDFP16, CERPACK-16	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDIP16, CERAMIC, DIP-16	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDIP16, CERAMIC, DIP-16	Decade Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CQCC20, CERAMIC, LCC-20
Parts packaging code	DFP	QLCC	DFP	DIP	DIP	QLCC
package instruction	CERPACK-16	QCCN,	DFP, FL16,.3	CERAMIC, DIP-16	DIP, DIP16,.3	CERAMIC, LCC-20
Contacts	16	20	16	16	16	20
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDFP-F16	S-CQCC-N20	R-GDFP-F16	R-GDIP-T16	R-GDIP-T16	S-CQCC-N20
length	9.6645 mm	8.89 mm	9.6645 mm	19.43 mm	19.43 mm	8.89 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of terminals	16	20	16	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	QCCN	DFP	DIP	DIP	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE	CHIP CARRIER
Maximum supply current (ICC)	55 mA	55 mA	55 mA	55 mA	55 mA	55 mA
propagation delay (tpd)	13.5 ns	13.5 ns	13.5 ns	13.5 ns	13.5 ns	13.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.032 mm	1.905 mm	2.032 mm	5.08 mm	5.08 mm	1.905 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	QUAD
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	6.604 mm	8.89 mm	6.604 mm	7.62 mm	7.62 mm	8.89 mm
minfmax	75 MHz	75 MHz	75 MHz	75 MHz	75 MHz	75 MHz
Base Number Matches	1	1	1	1	1	1
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible
JESD-609 code	e0	-	e0	e0	e0	e0
Encapsulate equivalent code	FL16,.3	-	FL16,.3	DIP16,.3	DIP16,.3	LCC20,.35SQ
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	-	5 V	5 V	5 V	5 V
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
