DS2250T-64-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DS2250T-64-8

DS2250T-64-8: DescriptionMicrocontroller, 8-Bit, 8051 CPU, 8MHz, CMOS,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size438KB，7 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

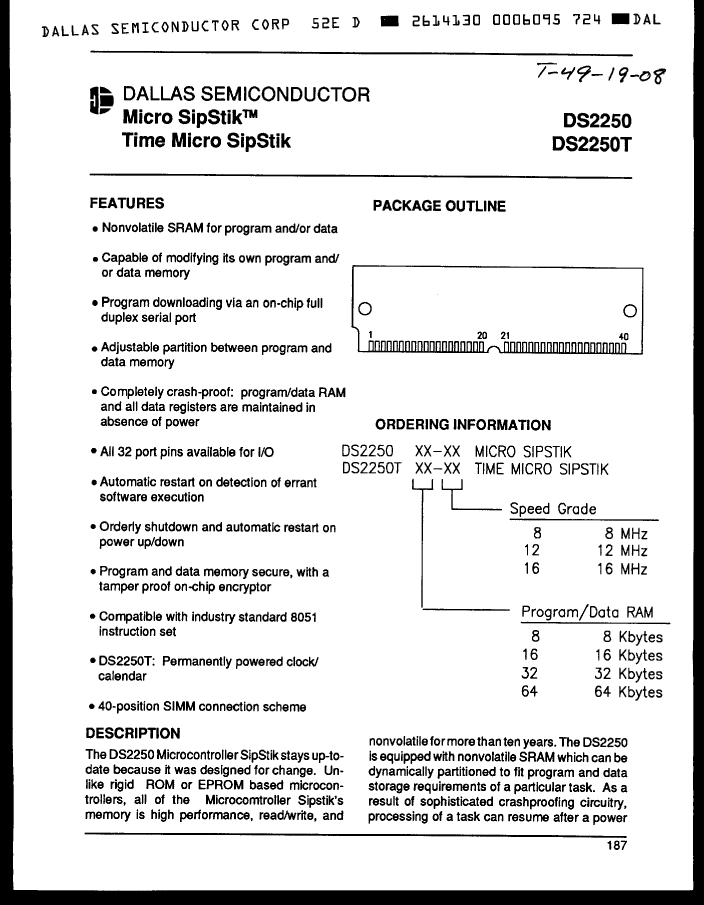

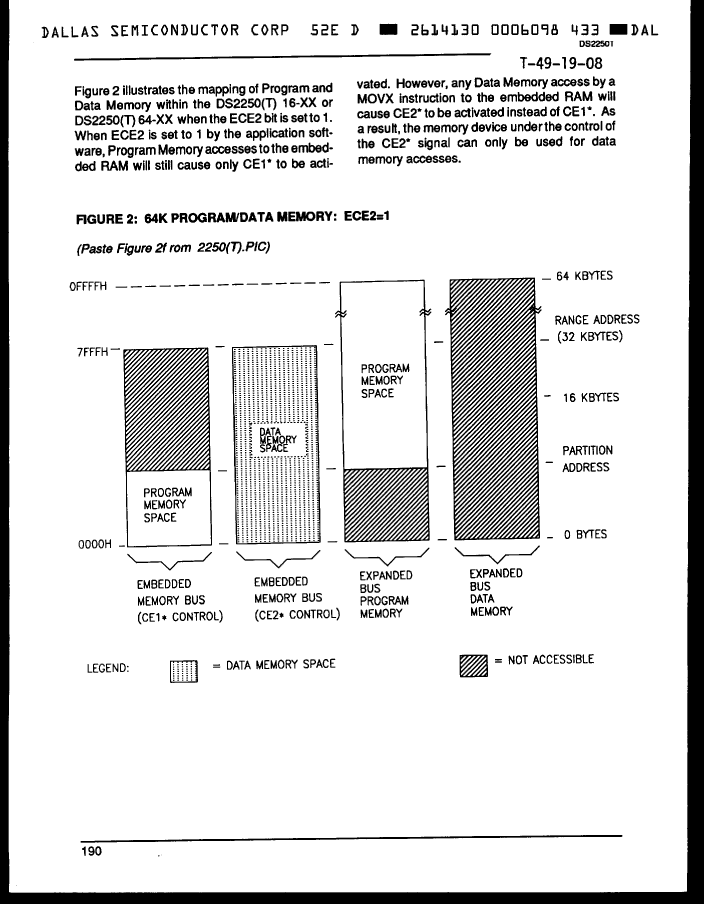

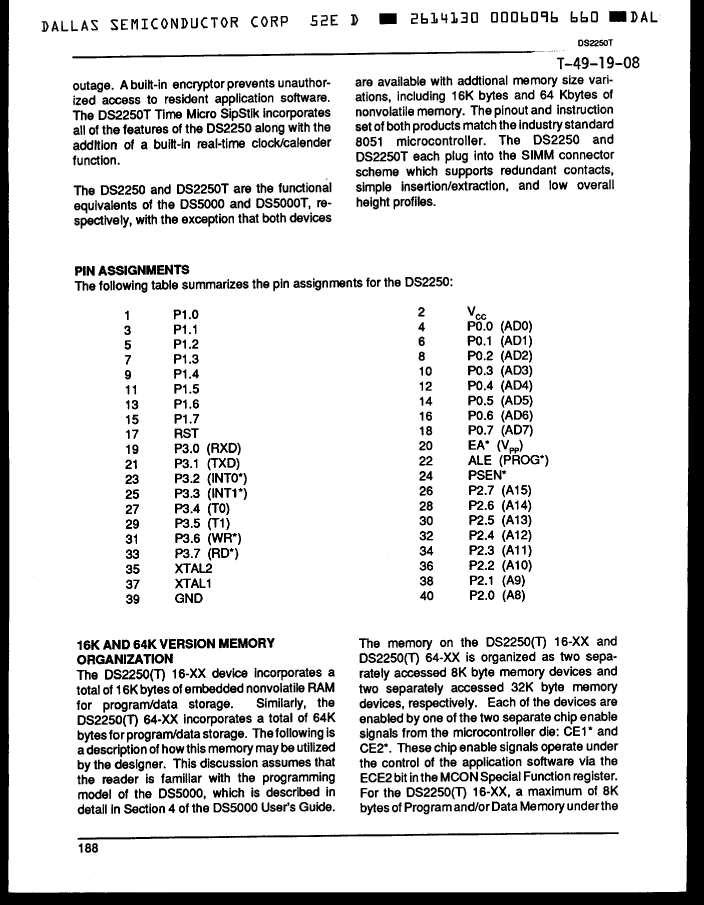

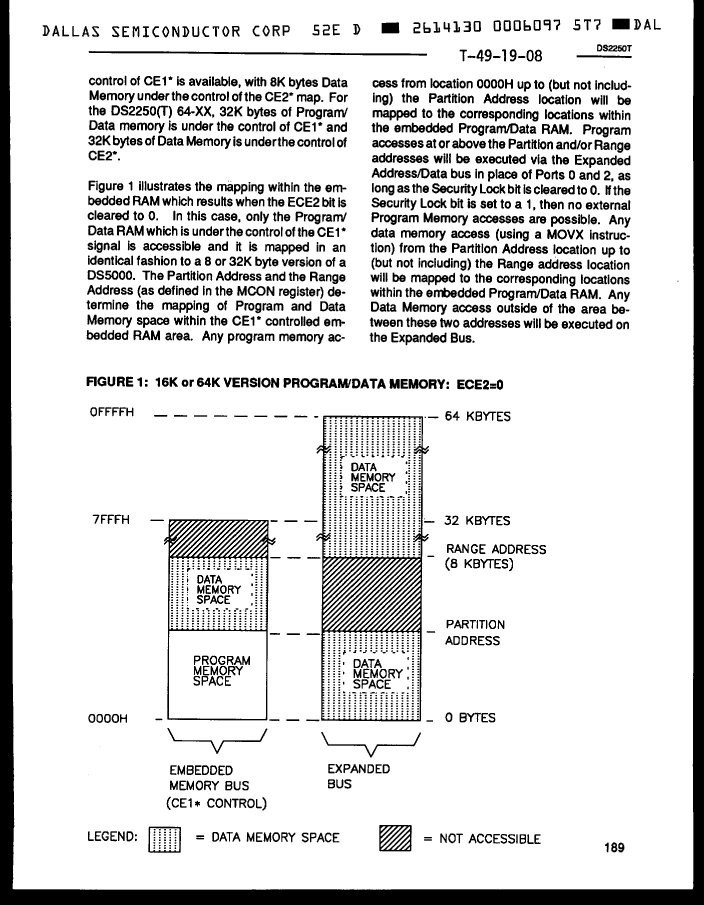

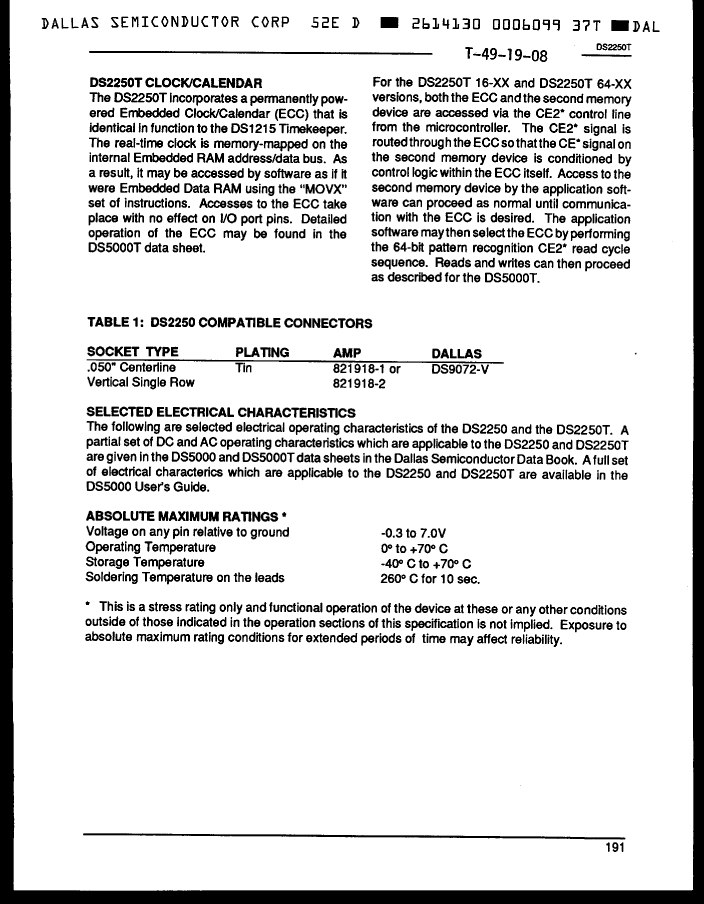

DS2250T-64-8 Overview

Microcontroller, 8-Bit, 8051 CPU, 8MHz, CMOS,

DS2250T-64-8 Parametric

Parameter Name	Attribute value
Maker	DALLAS
package instruction	SIMM, SSIM40,.2
Reach Compliance Code	unknown
Has ADC	NO
Other features	OPTIONAL PERMANENTLY POWERED REAL-TIME CLOCK; 10 YEAR DATA RETENTION
Address bus width	16
bit size	8
boundary scan	NO
CPU series	8051
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-XSMA-N40
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	40
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM40,.2
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	65536
RAM (number of words)	32768
rom(word)	0
speed	8 MHz
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
