BXO9330 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> BXO9330

BXO9330: DescriptionVoltage Controlled Oscillator, 1700MHz Min, 2700MHz Max,; CategoryPassive components oscillator; File Size154KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

BXO9330 Overview

Voltage Controlled Oscillator, 1700MHz Min, 2700MHz Max,

BXO9330 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Maximum control voltage	20 V
Minimum control voltage
Modulation sensitivity	211.7 MHz/V
Installation features	CHASSIS MOUNT
offset frequency	100 kHz
Maximum operating frequency	2700 MHz
Minimum operating frequency	1700 MHz
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	11.9 dBm
phase noise	-101 dBc/Hz
physical size	25.4mm x 20.828mm x 12.7mm
Nominal supply voltage	15 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

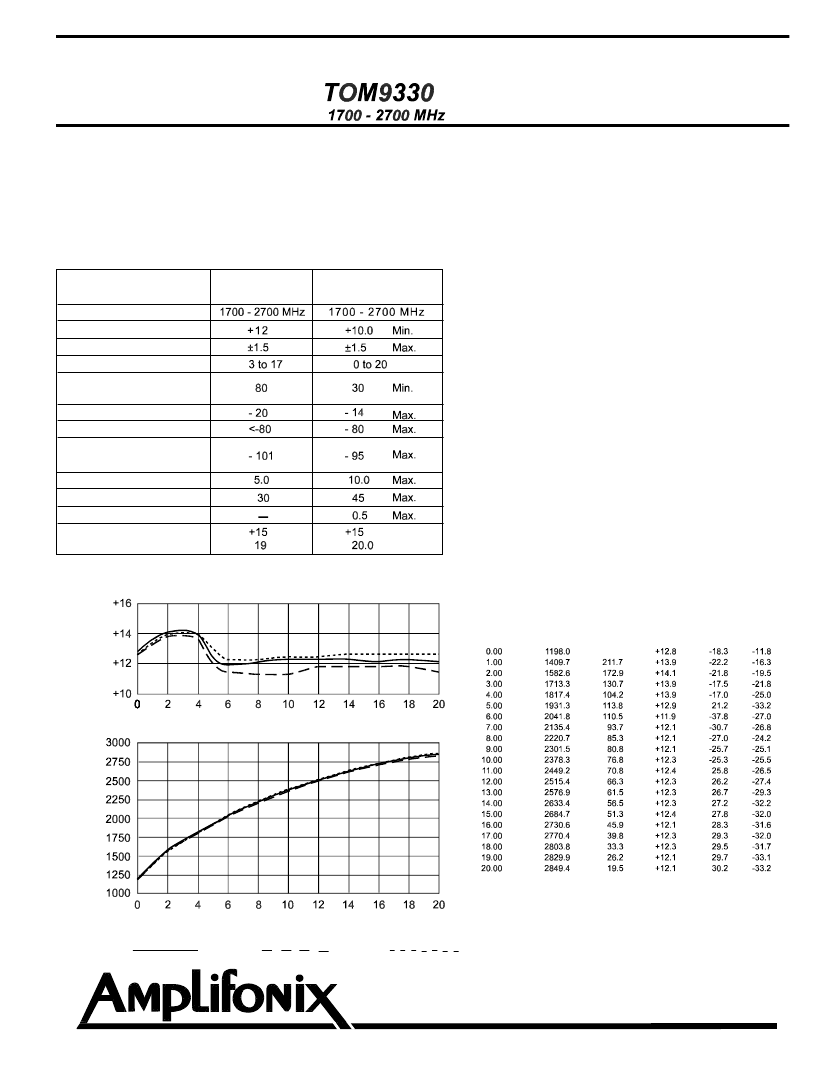

VOLTAGE CONTROLLED

OSCILLATOR

Features

■

Low Noise Bipolar Transistor

■

Operating Case Temp. 0 ºC to + 70 ºC

■

Environmental Screening available

Available as:

TOM9330, 4 Pin TO-8 (T4)

TON9330, 4 Pin Surface Mount (SM3)

BXO9330, Connectorized Housing (H1)

Specifications

CHARACTERISTIC

Frequency

Output Power (dBm)

Power Flatness (dBm)

Tuning Voltage Range (V)

Tuning Voltage

Sensitivity (MHz/V)

Harmonics (dBc)

Spurious (dBc)

Phase Noise

@ 100 KHz (dBc/hz)

Pushing (MHz/V)

Pulling (MHz); 22 dB RL

Frequency Drift (MHz/ºC)

Power

Vdc

NOTE: Care should always be taken to effectively ground the case of each unit.

TYPICAL

Ta = 25 ºC

MIN/MAX

Ta = 0 ºC to +70 ºC

Maximum Ratings

Ambient Operating Temperature .......... -55ºC to + 100 ºC

Storage Temperature .......................... -62ºC to + 125 ºC

Case Temperature ........................................... + 125 ºC

DC Voltage ...................................................... + 20 Volts

Maximum DC Tuning Voltage .......................... + 22 Volts

Minimum DC Tuning Voltage ................................ 0 Volts

Typical Performance Data

Output Power

(dBm)

∆

(V)

(MHz)

(dBm)

===============================

(dBc)

Tuning Voltage (Volts)

Frequency

(MHz)

Tuning Voltage (Volts)

Legend

+ 25 ºC

+70 ºC

0 ºC

2707 Black Lake Place, Philadelphia, PA 19154

TEL 215-464-4000

· · · ·

FAX 215-464-4001

03/06/03
