302006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 302006

302006: DescriptionWire And Cable, 6 Conductor(s), 20AWG, 300V, Communication And Control Cable, ROHS COMPLIANT; CategoryThe connector Connector bracket; File Size549KB，2 Pages; ManufacturerLapp Group; Environmental Compliance

Download Datasheet Parametric View All

302006 Overview

Wire And Cable, 6 Conductor(s), 20AWG, 300V, Communication And Control Cable, ROHS COMPLIANT

302006 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Lapp Group
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	APPLICATION: LOW-VOLTAGE CONTROL INTERCONNECT
application	PROCESS CONTROL, ELECTRICAL EQUIPMENT, INDUSTRIAL MACHINERY
Certification	CSA; CUL; EAC; UL
conductor material	TINNED COPPER
Connector bracket type	WIRE AND CABLE
structure	STRANDED
Cross-sectional area	0.62 mm2
diameter	7.5 mm
insulator material	POLYVINYL CHLORIDE
Jacket material	POLYVINYL CHLORIDE
Number of conductors	6
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated voltage	300 V
shield	NO
Wire gauge	20 AWG
Wire and Cable Names	COMMUNICATION AND CONTROL CABLE
Base Number Matches	1

Preview

Download Datasheet

View All

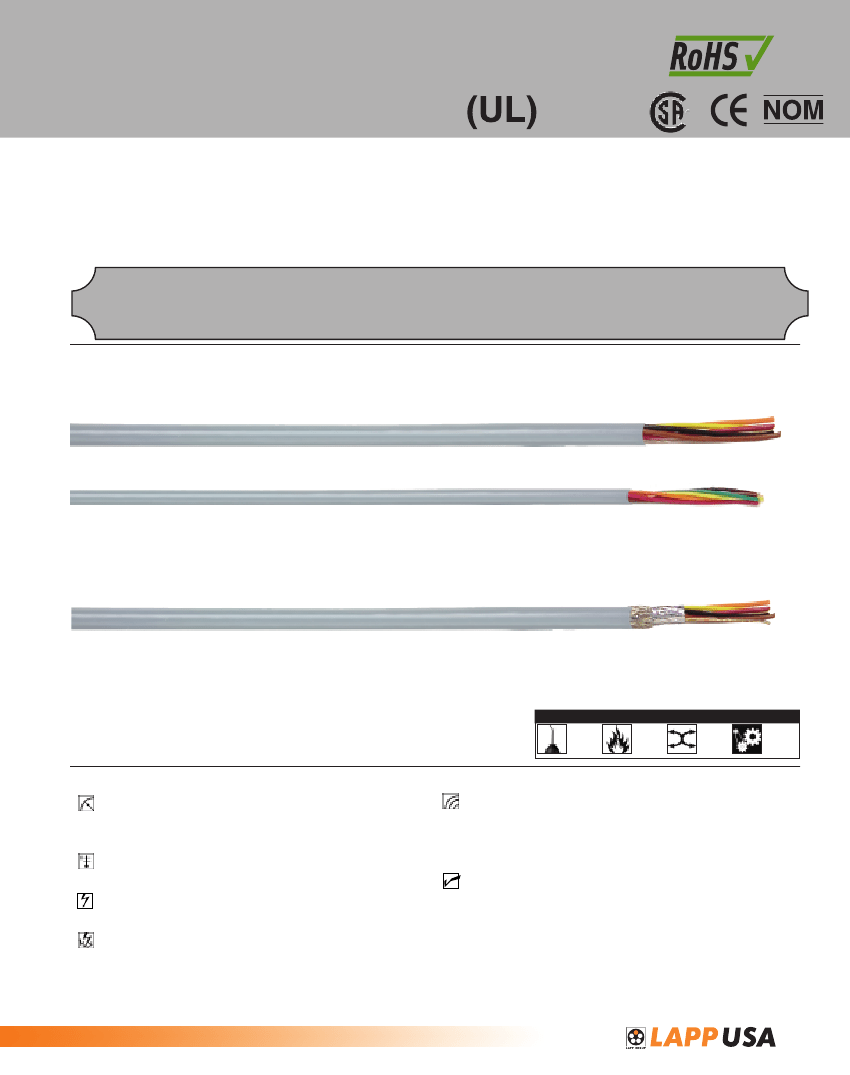

UNITRONIC 300/ 300 CY

Multi-Conductor Low Voltage Control &

Signal Cable for Industrial Applications

UNITRONIC

300 is a lead free, rugged multi-conductor

low voltage control and signal cable for internal and

external wiring of OEM equipment for industrial

applications. UNITRONIC

300 has multiple approvals

such as UL Type PLTC, UL CMG, UL Oil Res I, CSA CMG,

and CE. PLTC with open wiring approval allows for use in

overhead trays eliminating the need for conduit.

PLTC

With these multiple approvals, the cable can be used in

process control equipment, electrical equipment, plant

expansion, and other machinery. UNITRONIC

300 also is

UV Resistant and is approved for direct burial and meets

Class 1 Div. 2 requirements.

UNITRONIC

300 CY, a shielded version, is also available.

Open Wiring, No Conduit Necessary

16 & 18 AWG

Per NEC Article 725

UNITRONIC

300 Construction:

Finely stranded tinned copper conductors; PVC blended insulation; oil resistant gray PVC jacket.

Control Cable (20 AWG - 16 AWG)

UNITRONIC

300 (UL) TYPE CMG or PLTC 105°C CSA CMG or AWM II A/B 300V pbf(+)

Signal Cable (24 AWG* - 22 AWG)

UNITRONIC

300 (UL) TYPE CMG or PLTC 105°C CSA CMG or AWM II A/B 300V pbf(+)

UNITRONIC

300 CY Construction:

Finely stranded tinned copper conductors; PVC blended insulation; overall foil tape wrap; drainwire; tinned copper

braid (75% coverage); oil resistant gray PVC jacket.

UNITRONIC

300 CY (UL) TYPE CMG or PLTC 105°C CSA CMG or AWM II A/B 300V pbf(+)

RoHS Standard:

Cables that meet RoHS do not contain Lead, Cadmium, Hexavalent Chromium, Mercury, Polybrominated Biphenyls

(PBB), Polybrominated Diphenyl Ethers (PBDE). RoHS is a European Directive to be met by July 1, 2006.

Jacket is dual printed with AWG/mm

equivalent.

*Higher conductor sizes available upon request. May be subject to

5,000 ft. minimum order.

OR-

Cable Attributes

FR-

FL-

MP-

Technical Data:

Minimum bend radius

for installation:

shielded:

Temperature Range:

Nominal voltage:

Test voltage:

Color code:

4 x cable diameter

6 x cable diameter

-25°C to +105°C

Approvals:

300V

2000V

UL CMG, PLTC*, Open Wiring**,

AWM 2464, Oil Res I

CSA CMG/FT4, CSA AWM II A/B

NOM SCFI-1994

24 - 22 AWG- Chart 4, Page 673

1 Pair= White paired with Black

20 - 16 AWG- Chart 5, Page 673

1 Pair= Black paired with Red

* 24 AWG not PLTC

** Open Wiring for 18 AWG & 16 AWG (22 & 20 AWG Available)

Meets NEC Art. 725, 760, & 800. Also Class I Div. 2 (PLTC only)

Conforms to CE Low Voltage Directive

pbf(+)= Meets RoHS Standard- (2002/95/EC) Restriction of Hazardous Substance Directives
