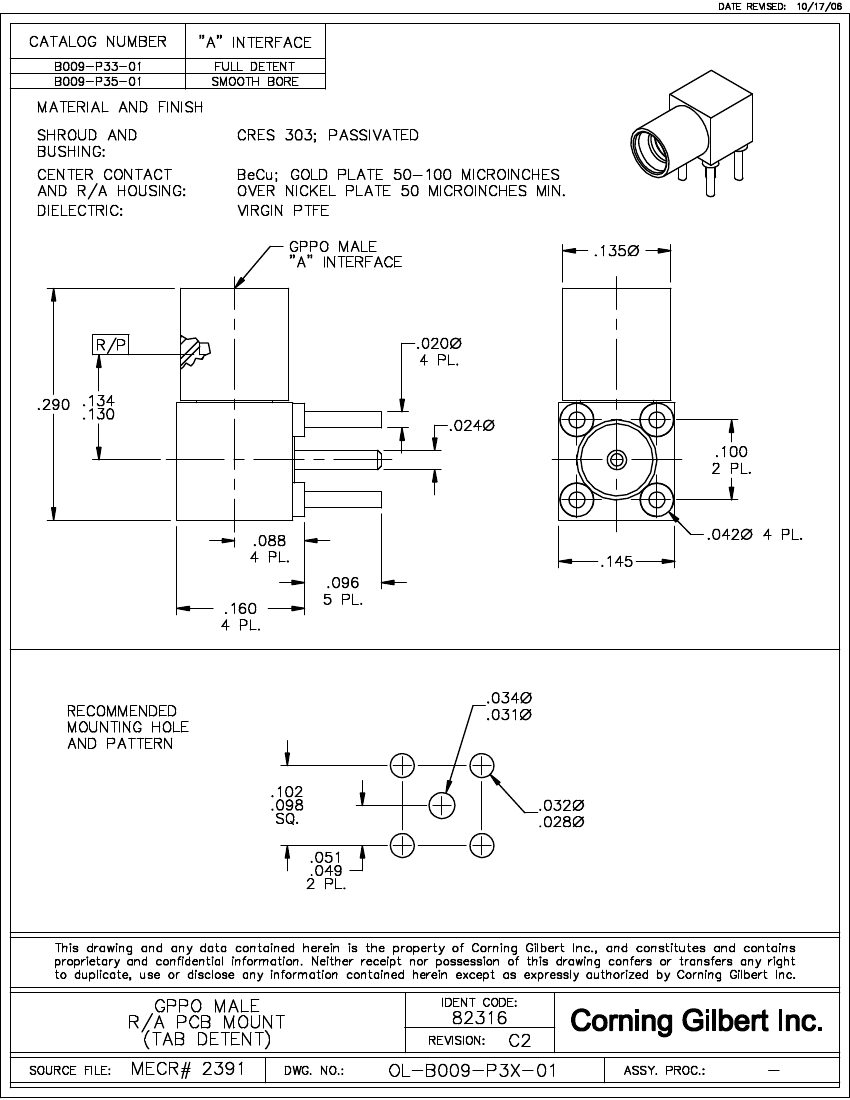

B009-P33-01: DescriptionBlindmate Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerCorning Gilbert Inc

Download Datasheet Parametric Compare View All

B009-P33-01 Overview

Blindmate Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Locking, Receptacle,

Parameter Name	Attribute value
Maker	Corning Gilbert Inc
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	GPPO
body width	0.145 inch
subject depth	0.29 inch
body length	0.145 inch
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact to complete cooperation	GOLD (100) OVER NICKEL (50)
Contact completed and terminated	GOLD (100) OVER NICKEL (50)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	6 mΩ
Contact style	COAX
Coupling type	SLIDE ON
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.04 dB
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	B009-P
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	65 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Shell material	BERYLLIUM COPPER
Terminal length	0.096 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.3
Base Number Matches	1

	B009-P33-01
Description	Blindmate Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Locking, Receptacle,
Maker	Corning Gilbert Inc
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	GPPO
body width	0.145 inch
subject depth	0.29 inch
body length	0.145 inch
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact to complete cooperation	GOLD (100) OVER NICKEL (50)
Contact completed and terminated	GOLD (100) OVER NICKEL (50)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	6 mΩ
Contact style	COAX
Coupling type	SLIDE ON
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.04 dB
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	B009-P
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	65 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Shell material	BERYLLIUM COPPER
Terminal length	0.096 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.3
Base Number Matches	1
