57.597.0155.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 57.597.0155.0

57.597.0155.0: DescriptionModular Terminal Block, 335A; CategoryThe connector terminals; File Size130KB，2 Pages; ManufacturerWieland Electric GmbH; Websitehttps://www.wieland-electric.com/

Download Datasheet Parametric Compare View All

57.597.0155.0 Overview

Modular Terminal Block, 335A

57.597.0155.0 Parametric

Parameter Name	Attribute value
Maker	Wieland Electric GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
Fastening method	SCREW
Manufacturer's serial number	WKN150/U
Installation type	DIN RAIL
Rated current	335 A
Rated voltage	600 V
safety certificate	UL; VDE; CSA
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Wire gauge	350 AWG
Base Number Matches	1

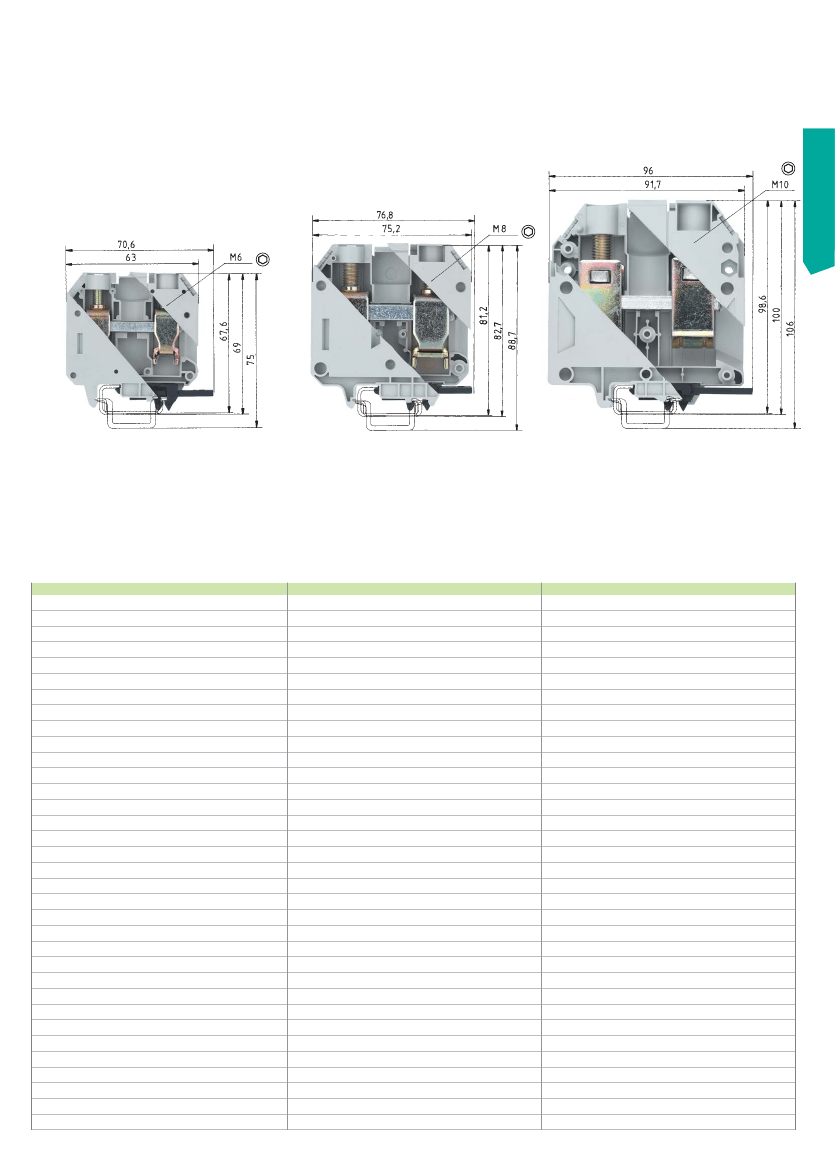

Preview

Download Datasheet

View All

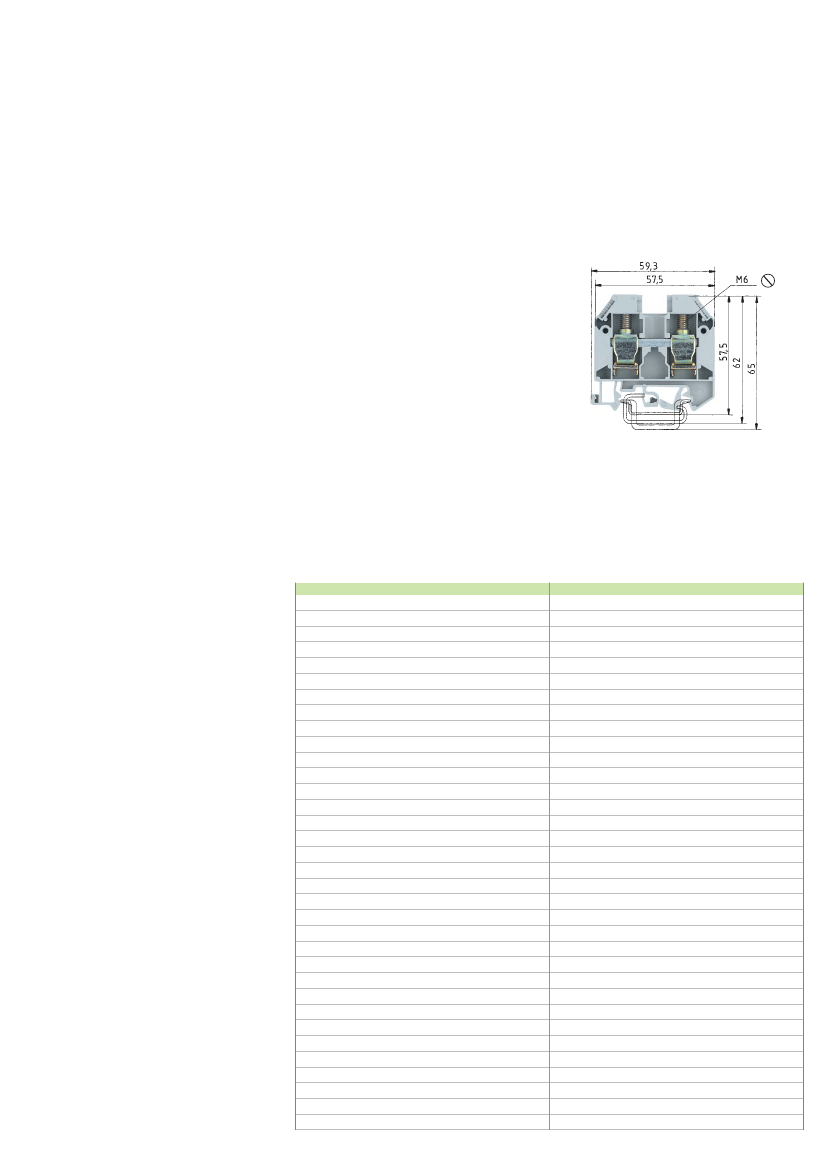

selos

Feed through blocks

type

WKN

WKN 16/U

EN 60 947-7-1/DIN VDE 0611 T1

UL -ratings

field/factory wiring

CSA ratings

Width

Wire strip length

Approvals

fine stranded solid/stranded

4 – 16 mm

1.5 – 25 mm

800 V/8 kV/3

No. 12-4 AWG

600 V

85/90

No. 14-4 AWG

600 V

12 mm

15 mm

aüiHgpzrotue+q

w RdWVU

Type

Part no.

Std. pack

Mounting instructions for

EEx e applications

– If feed-through blocks are mounted

directly adjacent to feed-through

blocks of a different size, or directly

adjacent to ground blocks, the open

side of a group of the same type of

blocks has to be covered by an end

plate or partition.

– If neighboring terminal blocks are

jumpered by a cross connector, the

required isolation distances have

to be maintained by inserting either

a snap-in partition plate (without

increased pitch), an end plate, or a

partition between the different block

groups, in front of or behind the

cross-connected terminal block group.

Feed through block

Feed-through block EEx i

Feed-through block EEx e*

Accessories

Color: gray

Color: blue

Color: gray

WKN 16/U

WKN 16/U BLAU

WKN 16/U

57.516.0155.0

57.516.0155.6

57.516.0155.0

1. Mounting rail TS 35, DIN rail 7.5mm high

Mounting rail TS 35, DIN rail, 15mm high

Mounting rail TS 32, G rail

2. End clamp with U-foot

End clamp TS 35, with screw

End clamp TS 32, with screw

3. End plate, 1.5 mm thick

End plate, 2 mm thick

Partition, 1.5 mm thick

Partition, 2 mm thick

Partition, 3 mm thick

5. Cross connector with screws, E-Cu

insulated (jumper)

L=2m

35 x 27 x 7,5 EN 60715

35 x 24 x 15 EN 60715

9006 EN 60715 G-32

WE 1/U

9708/2 S 35

9708

98.300.0000.0

98.360.0000.0

98.190.0000.0

10 mm wide

8 mm wide

7.5 mm wide

Color: gray

Color: blue

Color: gray

Color: blue

Color: gray

Color: blue

Color: gray

Color: blue

Color: gray

Color: blue

2pole

3pole

to 12pole

Z5.523.5753.0 100

Z5.522.8553.0 100

Z5.522.7053.0 100

APN 16

APN 16 BLAU

07.311.6755.0

07.311.6755.6

TWN 16

TWN 16 BLAU

07.311.7755.0

07.311.7755.6

IVB

WKN 16 - 2

IVB

WKN 16 - 3

IVB

WKN 16 - 12

TSN 16 GELB

TSN AD 16 GELB

AD VB 12/4 GELB

Z7.284.2227.0

Z7.284.2327.0

Z7.284.3227.0

07.311.8453.8

07.311.8553.8

04.343.5156.8

6. Single cover f. cross conn. with mark.facility

7. Partition plate with marking facility

Partition plate with cover

8. Cover strip for cross conn. over 10 blocks

Cover strip with warn. symb. over 4 blocks

)

with CCA certificate

EEx e terminal blocks are subject to certification. The

relevant indications in the certificate apply (e.g. 660V)

Part certificates for EEx e approval:

EEx e II ASEV 91.1 B11638U

For more accessories see pages 160 -177

For marking systems see pages 178-179 and 200-202

* CL I, ZN1, AExe II / **CL I, ZN1, Exe II pending

104
