567-25.0M-5E-TP120 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> 567-25.0M-5E-TP120

Preview

567-25.0M-5E-TP120: DescriptionHCMOS/TTL Output Clock Oscillator, 25MHz Nom, J-LEADED, 4 PIN; CategoryPassive components oscillator; File Size129KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com; Environmental Compliance

Download Datasheet Parametric Compare View All

567-25.0M-5E-TP120 Overview

HCMOS/TTL Output Clock Oscillator, 25MHz Nom, J-LEADED, 4 PIN

567-25.0M-5E-TP120 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Oscilent
package instruction	J-LEADED, 4 PIN
Reach Compliance Code	compliant
Other features	TUBE
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	50%
linearity	20%
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
physical size	14.0mm x 9.8mm x 4.7mm
longest rise time	8 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

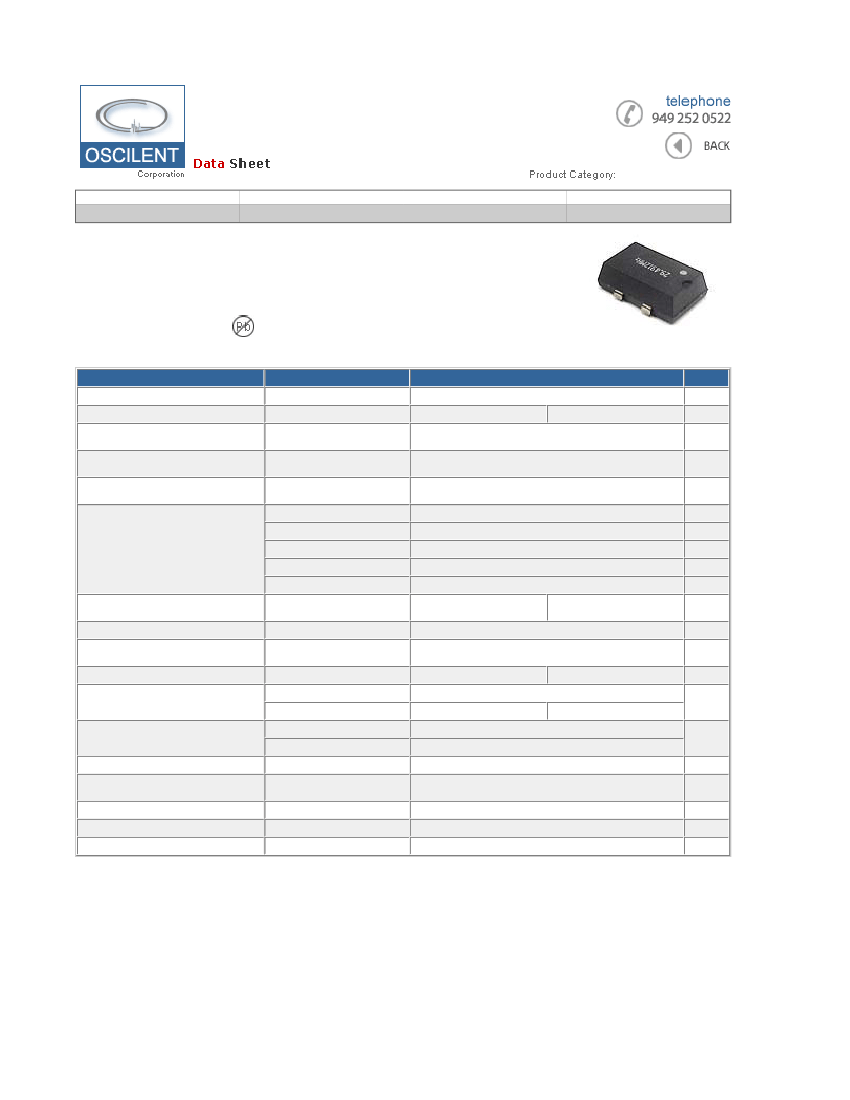

Oscilent Corporation | 567 Series VCXO - Voltage Control Crystal Oscillator

Page 1 of 2

VCXO Surface Mount

Series Number

Package

Description

Last Modified

567

FEATURES

- Wide voltage control range

- Wave form symmetry of 40/60%

- HCMOS / TTL output

J-Lead Plastic

HCMOS / TTL Output

Jan. 01 2007

- Industry standard J-Lead Plastic Package

- RoHs / Lead Free compliant

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Output Logic

Input Voltage (VDD)

Frequency Range (f

O

)

Operating Temperature (T

OPR

)

Storage Temperature (T

STG

)

Overall Frequency Stability

CONDITIONS

-

(a) Frequency Tolerance

(b) Temperature Stability

(c) Input Voltage Stability

(d) Load Stability

Input Current (I

DD

)

Aging

Rise Time (T

R

) & Fall Time (TF)

Pin 1 Control Voltage Range

Output Voltage High "1" VOH

Output Voltage Low "0" VOL

Duty Cycle

Start-Up Time (T

S

)

Jitter

Linearity

Absolute Pull Range (APR)

-

@ 25°C

-

TTL Load

HCMOS Load

TTL Load

HCMOS Load

-

2.7 min.

0.4 max.

0.5 max.

50 ±10 (Std.) / 50 ±5 (Option)

6 max.

±25 max.

±20 (Std.)

±50, ±100, ±150 min.

CHARACTERISTICS

HCMOS / TTL Output

3.3 ±10%

1.544 ~ 32.000

0 ~ +70 (Std.) / -40 ~ 85 (Option)

-55 ~ +125

±50, ±100 max.

Inclusive of Overall Stability

Inclusive of Overall Stability (Operating Temperature)

Inclusive of Overall Stability (VDD ±10%)

Inclusive of Overall Stability (RL ±5%)

10 ~ 35 max.

±5 max.

8 max. (0.4V to 2.4V w/TTL , 20% to 80% /HCMOS)

1.65 ±1.35

2.4 min.

VDD - 0.5 min.

2.5 ±2.0

15 ~ 50 max.

5.0 ±10%

UNITS

-

VDC

MHz

°C

PPM

-

mA

PPM/Y

nS

V

VDC

%

mS

ps

%

PPM

567-25.0M-5E-TP120 Related Products

	567-25.0M-5E-TP120	567-25.0M-5E-TP120-TR	567-1.544M-5E-TP120-TR	567-1.544M-3DN-P220-TR	567-32.0M-3D-TP120-TR	567-25.0M-3D-TP120	567-25.0M-3DN-P120	567-25.0M-3E-TP120-TR
Description	HCMOS/TTL Output Clock Oscillator, 25MHz Nom, J-LEADED, 4 PIN	HCMOS/TTL Output Clock Oscillator, 25MHz Nom, J-LEADED, 4 PIN	HCMOS/TTL Output Clock Oscillator, 1.544MHz Nom, J-LEADED, 4 PIN	HCMOS/TTL Output Clock Oscillator, 1.544MHz Nom, J-LEADED, 4 PIN	HCMOS/TTL Output Clock Oscillator, 32MHz Nom, J-LEADED, 4 PIN	HCMOS/TTL Output Clock Oscillator, 25MHz Nom, J-LEADED, 4 PIN	HCMOS/TTL Output Clock Oscillator, 25MHz Nom, J-LEADED, 4 PIN	HCMOS/TTL Output Clock Oscillator, 25MHz Nom, J-LEADED, 4 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	J-LEADED, 4 PIN	J-LEADED, 4 PIN	J-LEADED, 4 PIN	J-LEADED, 4 PIN	J-LEADED, 4 PIN	J-LEADED, 4 PIN	J-LEADED, 4 PIN	J-LEADED, 4 PIN
Reach Compliance Code	compliant	compliant	compliant	compli	compli	compli	compliant	compliant
Other features	TUBE	TR	TR	TR	TR	TUBE	TUBE	TR
Maximum control voltage	4.5 V	4.5 V	4.5 V	3 V	3 V	3 V	3 V	3 V
Minimum control voltage	0.5 V	0.5 V	0.5 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V
maximum descent time	8 ns	8 ns	8 ns	8 ns	8 ns	8 ns	8 ns	8 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
Frequency offset/pull rate	50 ppm	50 ppm	50 ppm	100 ppm	50 ppm	50 ppm	50 ppm	50 ppm
frequency stability	50%	50%	50%	100%	100%	100%	100%	50%
linearity	20%	20%	20%	20%	20%	20%	20%	20%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	25 MHz	25 MHz	1.544 MHz	1.544 MHz	32 MHz	25 MHz	25 MHz	25 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	85 °C	70 °C	70 °C	85 °C	70 °C
Oscillator type	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL
physical size	14.0mm x 9.8mm x 4.7mm	14.0mm x 9.8mm x 4.7mm	14.0mm x 9.8mm x 4.7mm	14.0mm x 9.8mm x 4.7mm	14.0mm x 9.8mm x 4.7mm	14.0mm x 9.8mm x 4.7mm	14.0mm x 9.8mm x 4.7mm	14.0mm x 9.8mm x 4.7mm
longest rise time	8 ns	8 ns	8 ns	8 ns	8 ns	8 ns	8 ns	8 ns
Maximum supply voltage	5.5 V	5.5 V	5.5 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage	5 V	5 V	5 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	60/40 %	55/45 %	55/45 %	60/40 %	55/45 %
Maker	Oscilent	Oscilent	Oscilent	Oscilent	Oscilent	Oscilent	Oscilent	-
