B4064NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> B4064NL

B4064NL: DescriptionTelecom Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size317KB，1 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

B4064NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B4064NL	-	-	View	Buy Now

B4064NL Overview

Telecom Transformer, ROHS COMPLIANT

B4064NL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TURNS RATIO: 1:3.6; 2:3.6, COMPATIBLE WITH METALINK MTV9141; METALINK MTV9142
high	12.07 mm
length	13.46 mm
Manufacturer's serial number	B4064NL
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
physical size	L13.46XB13.11XH12.07 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	13.11 mm
Base Number Matches	1

Preview

Download Datasheet

View All

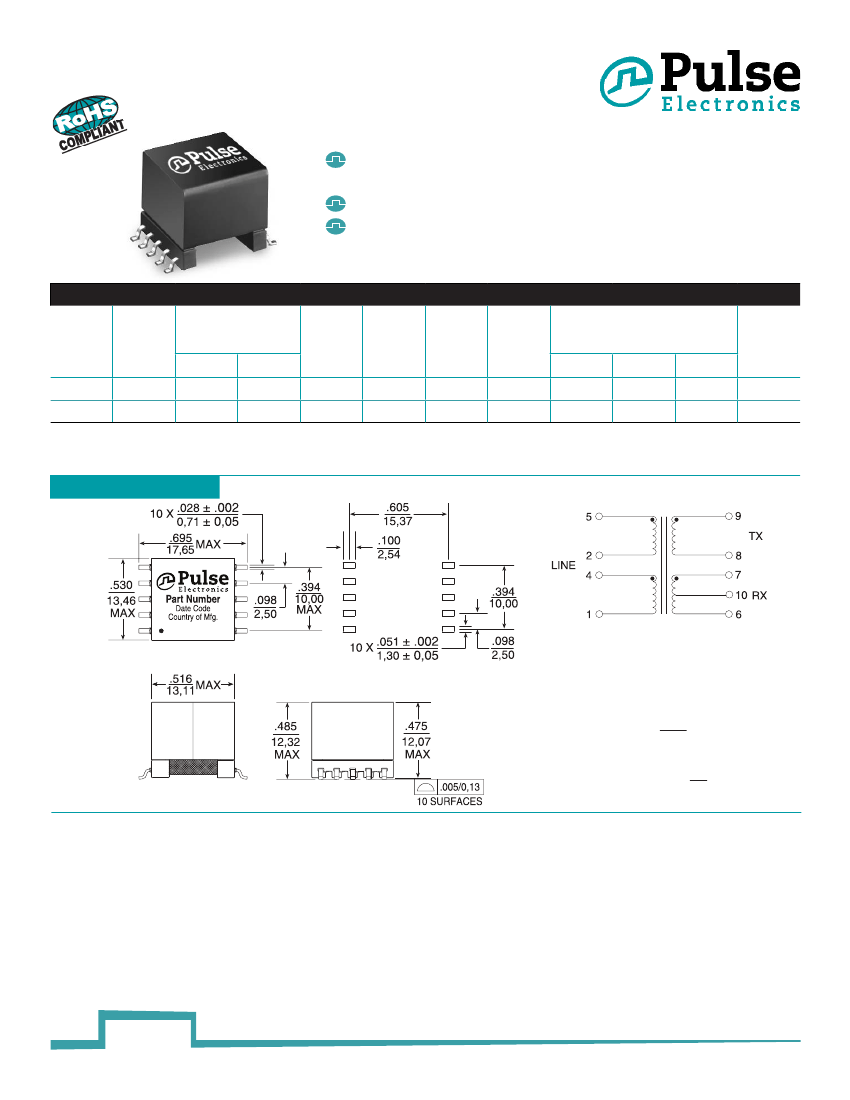

VDSL Transformers

For Use With Metalink Chipsets

Matched to Metalink MTV9141 (B4064) and MTV9142

(BX4081W) “Livia” VDSL chipsets

Excellent return loss

Designed to compy with IEC950 supplementary insulation

for 250Vrms working voltage

Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C

RoHS-5

Compliant

Part No.

B4064

BX4081W

RoHS-6

Compliant

Part No.

B4064NL

Turns Ratio

TX: Line

1 : 3.6

1 : 3.0

RX: Line

2 : 3.6

OCL Line

@ 25½C

(mH MIN)

1.134

0.280

Leakage Interwinding

Inductance Capacitance

(Line:TX)

(μH MAX)

(pF MAX)

1.2

1.5

Isolation

Voltage

(Vrms)

1500

DCR

(Ω MAX)

Line (1-5)

1.00

0.30

Tx (8-9)

0.80

0.20

Rx (6-7)

0.40

0.35

Return Loss

(120kHz-12MHz)

(dB MIN)

Notes:

Transformers are shipped in trays unless Tape & Reel packaging is specified by adding the suffix “T” to the part number (i.e. B4064T and B4064NLT).

Mechanical

B4064 / B4064NL / BX4081W

Schematic

Weight

......................6.2 grams

Tape & Reel

.................150/reel

Tray

...............................60/tray

Inches

Dimensions:

Unless otherwise specified,

all tolerances are

.010

0,25

For More Information

Pulse Worldwide

Headquarters

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

Tel: 858 674 8100

Fax: 858 674 8262

Pulse Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Pulse China Headquarters

B402, Shenzhen Academy of

Aerospace Technology Bldg.

10th Kejinan Road

High-Tech Zone

Nanshan District

Shenzen, PR China 518057

Tel: 86 755 33966678

Fax: 86 755 33966700

Pulse North China

Room 2704/2705

Super Ocean Finance Ctr.

2067 Yan An Road West

Shanghai 200336

China

Tel: 86 21 62787060

Fax: 86 2162786973

Pulse South Asia

135 Joo Seng Road

#03-02

PM Industrial Bldg.

Singapore 368363

Tel: 65 6287 8998

Fax: 65 6287 8998

Pulse North Asia

3F, No. 198

Zhongyuan Road

Zhongli City

Taoyuan County 320

Taiwan R. O. C.

Tel: 886 3 4356768

Fax: 886 3 4356823 (Pulse)

Fax: 886 3 4356820 (FRE)

Tel: 49 7032 78060

Fax: 49 7032 7806 135

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be

pulseelectronics.com

B846.B (02/12)
